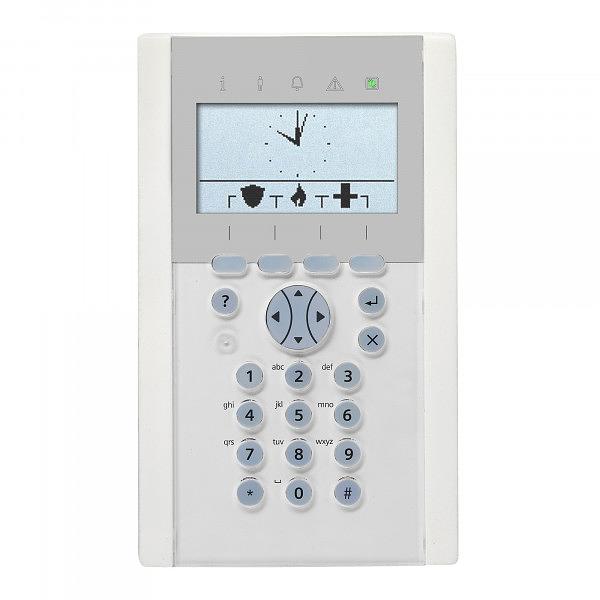

ATI5100 Intrusion arming terminal

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: V24246-F2605-A1
EAN/UPC Strekkode: 4025515474449

Lukk meny

Produktinformasjon "ATI5100 Intrusion arming terminal"

ATI5100 is a field terminal designed for use with SiPass integrated. It acts as a local interface between an advanced central controller (AC5100‚ AC5102 or AC5200) and authorised cardholders‚ enabling them to carry out tasks such as arming and disarming intrusion alarm areas.

Lukk meny

Bruttovekt (KG)	0.555
Kjøp enhet	PCE
EAN/UPC Strekkode:	4025515474449
Mindestabnahme	1
Statistisk kode	84733020
ECCN	3A991
Materialkode	V24246-F2605-A1
Netto vekt	0.527
Opprinnelsesland	PH

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Housing protection:	IP30
Operating voltage:	9.5 – 14 VDC
Current consumption:	Max. 155 mA at 12 VDC
Buzzer:	Integrated Sound
Approval:	CE- UL Pending
Dimensions (W x H x D):	112 x 185 x 28 mm
Housing:	Polycarbonate
Display:	LC: 128 x 64 dots Four lines with 16 characters per line
Interface:	To controller: RS485
Tamper switch:	Yes
Operating temperature:	5° ~ +40 °C
Weight:	0.38 kg
Colour:	RAL 9003
Firmware:	Flash upgradeable
Relative humidity:	Max. 90 % (non-condensing)
