ACT10 Codelock - 2Doors,10Codes,2Groups

ACT10 Codelock - 2Doors,10Codes,2Groups
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54521-C112-A100
  • EAN/UPC-Code: 7330082004423
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ACT10 Codelock - 2Doors,10Codes,2Groups"

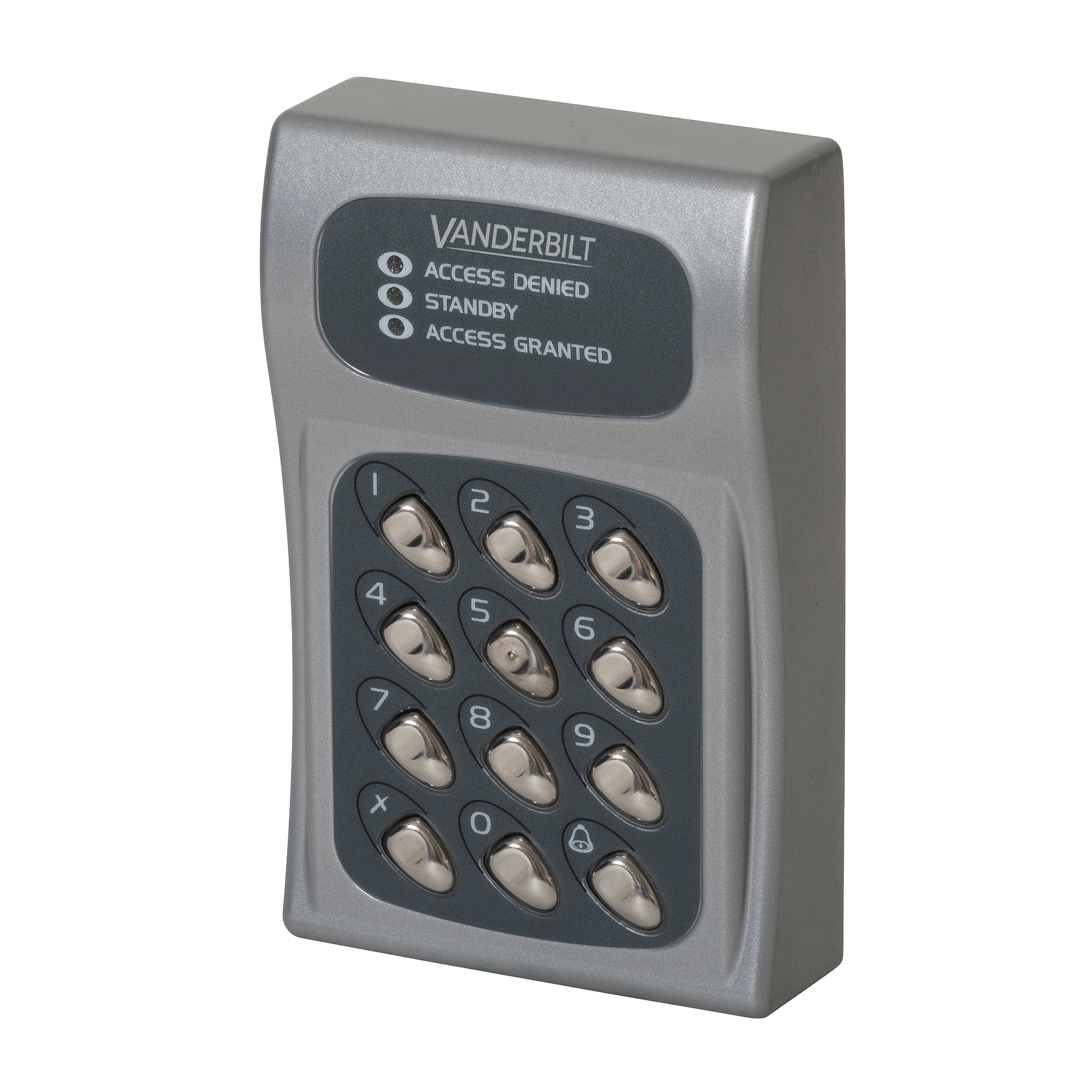

The ACT 10 digital keypad supports 10 user PIN codes with 2 output relays. It is a durable unit made from vandal resistant die cast zinc with backlit stainless steel keys. This multi-purpose keypad caters for Interlock, fire alarm input, door monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.727
Purchase unit PCE
EAN/UPC-Code: 7330082004423
Minimum order 1
Statistical code 84719000
Material code V54521-C112-A100
ECCN EAR99
Net weight 0.690
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Impact rating: IK10
Operating temperature: -40 to +70°C
Weight: 0.7kg
Users: 10
Door capacity: 2
Current consumption: 40mA (nominal), 120mA (max)
Operating voltage: 12 - 24 Volts AC/DC
Mounting: Surface / flush
Installation: Indoor / outdoor
Tamper protection: Yes
Housing protection: IP55
Dimensions (L x W x H): 138 x 87 x 37 (mm)
Documentation
Close menu
