P10L - Omnis PSU 10A Large

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54506-Z112-A300
Tuotetiedot "P10L - Omnis PSU 10A Large"

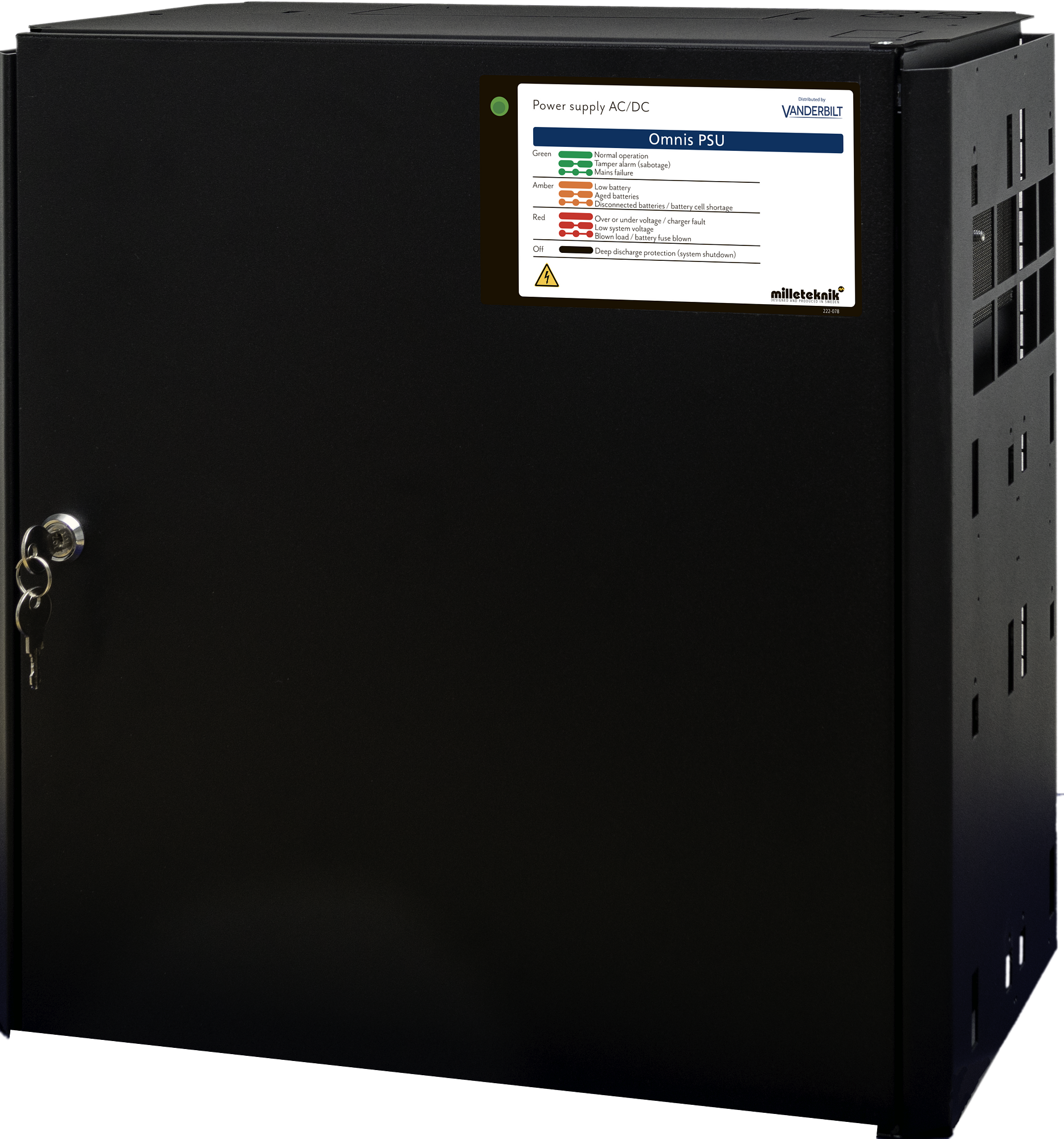

The P10L Omnis PSU is an SSF1014 approved 24V/10A PSU that is monitored in the Omnis system via a RS485 interface. The cabinet can house 2x45Ah batteries. Additional batteries can be added with the FLX Battery Box.
Gross weight (KG) 13
Osta yksikkö PCE
Mindestabnahme 1
ECCN N
Statistical code 85044060
Material code N54506-Z112-A300
Country of origin SE
Net weight 12.000
Mains voltage: 230V AC
Dimensions (W x H x D): 437 x 444 x 212 (mm)
Weight: 13 kg
Power supply: 10A @ 27,3V DC
Power output: Including Additional Components: 2 + 7 Prioritized Outputs + 3 Selectable Prioritized/Unprioritized Outputs
Additional components: 7 Prioritized Load Outputs and 3 Selectable Unpriorizied/Prioritized Load Outputs
Mounting: Wall-mount or Rack-mount (10U)
Battery: 2 x 45Ah (not included)
Interface: OSDP over RS485
Number of on-board relays: 0
Protection rating: IP32
Operating temperature: +5 ~ +40 ºC
