Produktinformasjon "RB120S Larmsändare SIA inkl. E1 kabel"

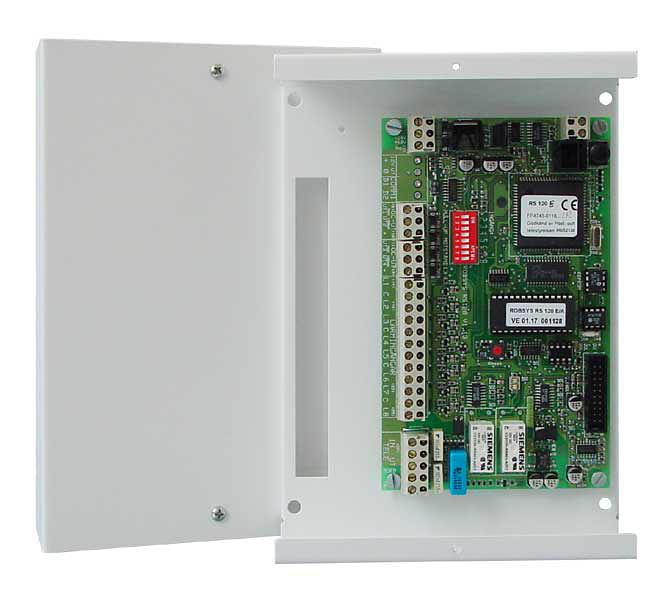

RB120S is used for alarm transmission over the public telephone network. The transmitter can be connected to RBE1 port B with a supplied cable. The dialing settings are set via the 2010 Omnis software. When the RB120S is connected to RBE1 the protocols SIA II, Robofon, LA100, and P100 are available (Note that this requires Bewator 2010 4.1 SP3 or higher). It is also possible to use the alarm transmitters alarm inputs. These can be programmed to send individual alarm notifications with a special configuration program (Prom.exe).
Bruttovekt (KG) 1.25
Kjøp enhet PCE
EAN/UPC Strekkode: 4025515475248
Mindestabnahme 1
Statistisk kode 85311030
ECCN 5D992
Materialkode VGBI:12222
Netto vekt 0.900
Opprinnelsesland SE
Outputs: Telelinje med lokal övervakning. 4 st programmerbara,max 100 mA.
Inputs: Seriell anslutning mot RBE1. 8 st med vardera 5 valfria ingångstyper inklusive sabotage. 15 st med trippelbalanserad ingång. Slutande, brytande, enkel-, dubbel- eller trippelbalanserad. Individuell fördröjning 1–254 sek alt. 1–254 min. RS232 modularkontak
Current consumption: 55 - 75 mA, 12V
Current consumption, quiescent: 30 mA, 12V
Power supply: 9 till 30V DC
Dimensions (W x H x D): 156 x 210 x 71 (mm)
