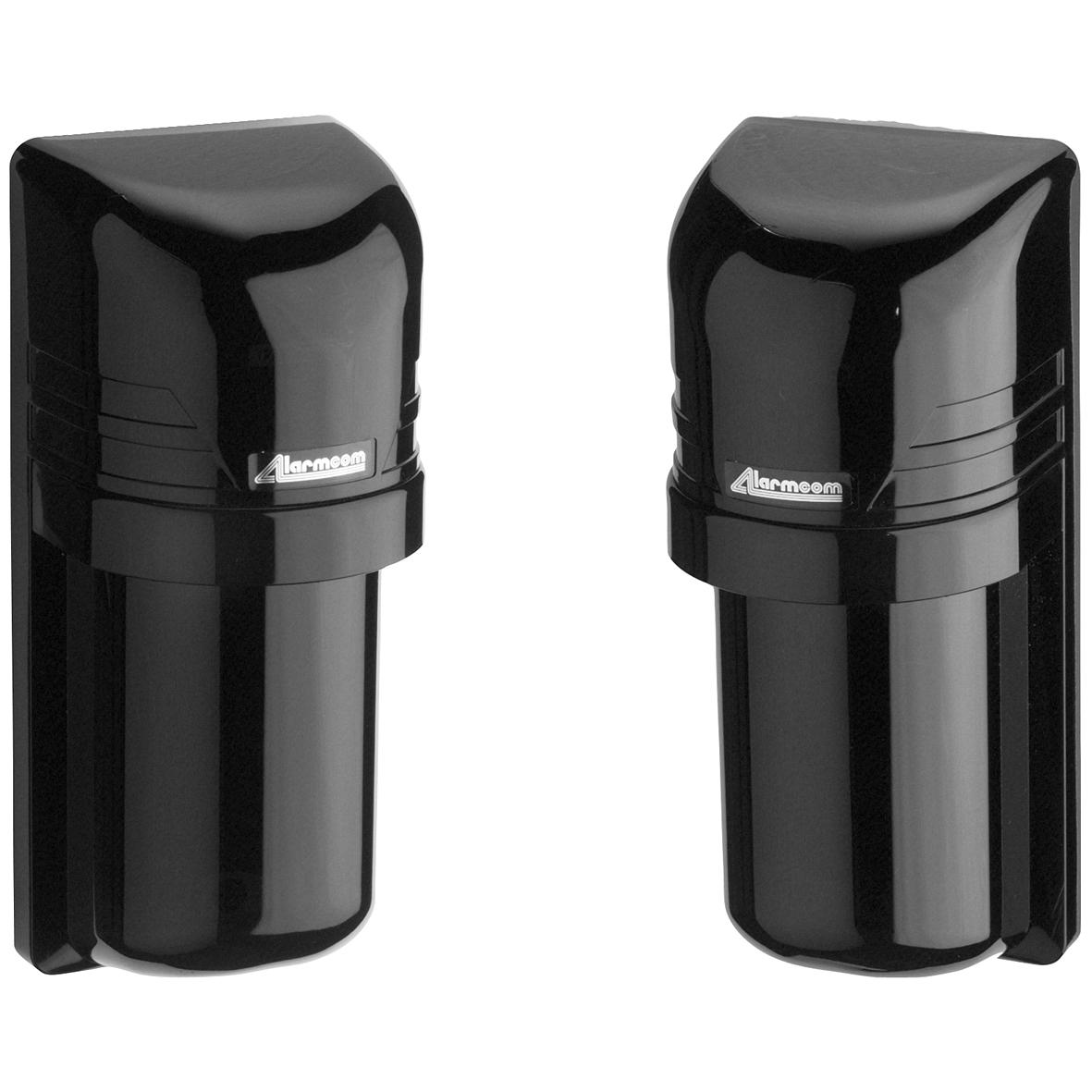

IS435 Aktiv-IR-Schrankenpaar. 60m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • VBPZ:5299050001
  • 4025515475705
Product information "IS435 Aktiv-IR-Schrankenpaar. 60m"
Intelligent active infrared beams especially designed for perimeter protection. The synchronised and intelligent "twin" beams reinforce each other improving both range and stability in severe weather conditions. Use BP -60TE when pole mounted.
Gross weight (KG) 1.175
Purchase unit PCE
EAN/UPC-Code: 4025515475705
Minimum order 1
Statistical code 85311030
Material code VBPZ:5299050001
Net weight 1.116
Country of origin VN
Dimensions (W x H x D): 73 x 170 x 71.5 mm
Housing material: Resina policarbonato (rosso vino)
Mounting: Height 0.8 ~ 1.0 m
Weight: 0.380 kg transmitter 0.400 kg receiver
Operating temperature: -25 ~ +60 °C
Frequency: 4 selectable channels
Current consumption: 80 mA
Tamper output contact rating: 30 V (AC/DC) < 0.5 A Transmitter and receiver covers
Housing: PC resin (wine red)
Power supply: 12 ~ 30 VDC
Supply voltage: 12 ~ 30 VDC
Housing protection (EN 60529): IP55
