MA300 Acc Control Fingerprint reader MF

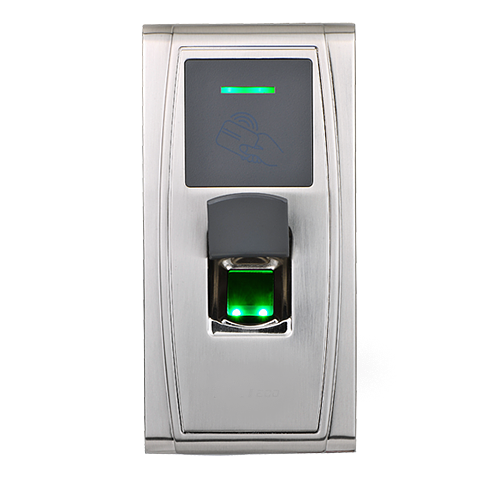

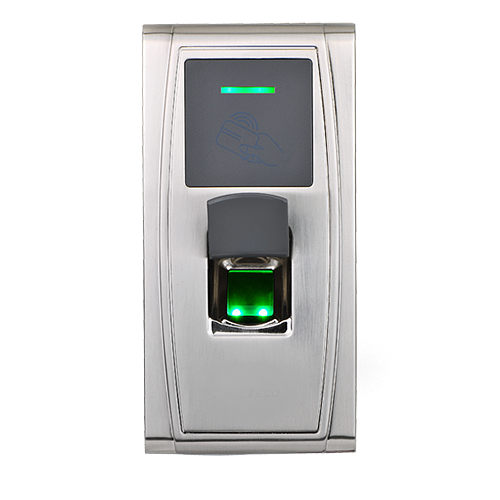

Preview: MA300 Acc Control Fingerprint reader MF Preview: MA300 Acc Control Fingerprint reader MF
MA300 Acc Control Fingerprint reader MF
MA300 Acc Control Fingerprint reader MF

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54504-Z152-A100
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MA300 Acc Control Fingerprint reader MF"
"MA300, one of the innovative biometric fingerprint readers for access control applications. Offering unparalleled performances by adopting an advanced ZK fingerprint algorithm for reliability, precision and excellent matching speed. It is metallic casing and IP65 rated which enables it to be resistant from water, dust and other outside damages. MA300 offers the flexibility to be installed standalone or with any third party panels that support 26-bit wiegand. User can be enrolled by the administrator card when the device works in standalone mode.TCP/IP and RS485 are available, so that the device can be connected easily and conveniently."
Certificates
Close menu
Import & Export
Gross weight (KG) 0.615
Purchase unit PCE
Minimum order 1
ECCN N
Material code N54504-Z152-A100
Net weight 0.474
Statistical code 84716070
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (W x H x D): 73 × 148 × 34.5 (mm)
Weight: 1.15 Kg
Operating voltage: 12V DC
Card compatibility: ACT Mifare Classic
Keypad: No
Operating temperature: -10 ~ 60 °C
Documentation
Close menu
