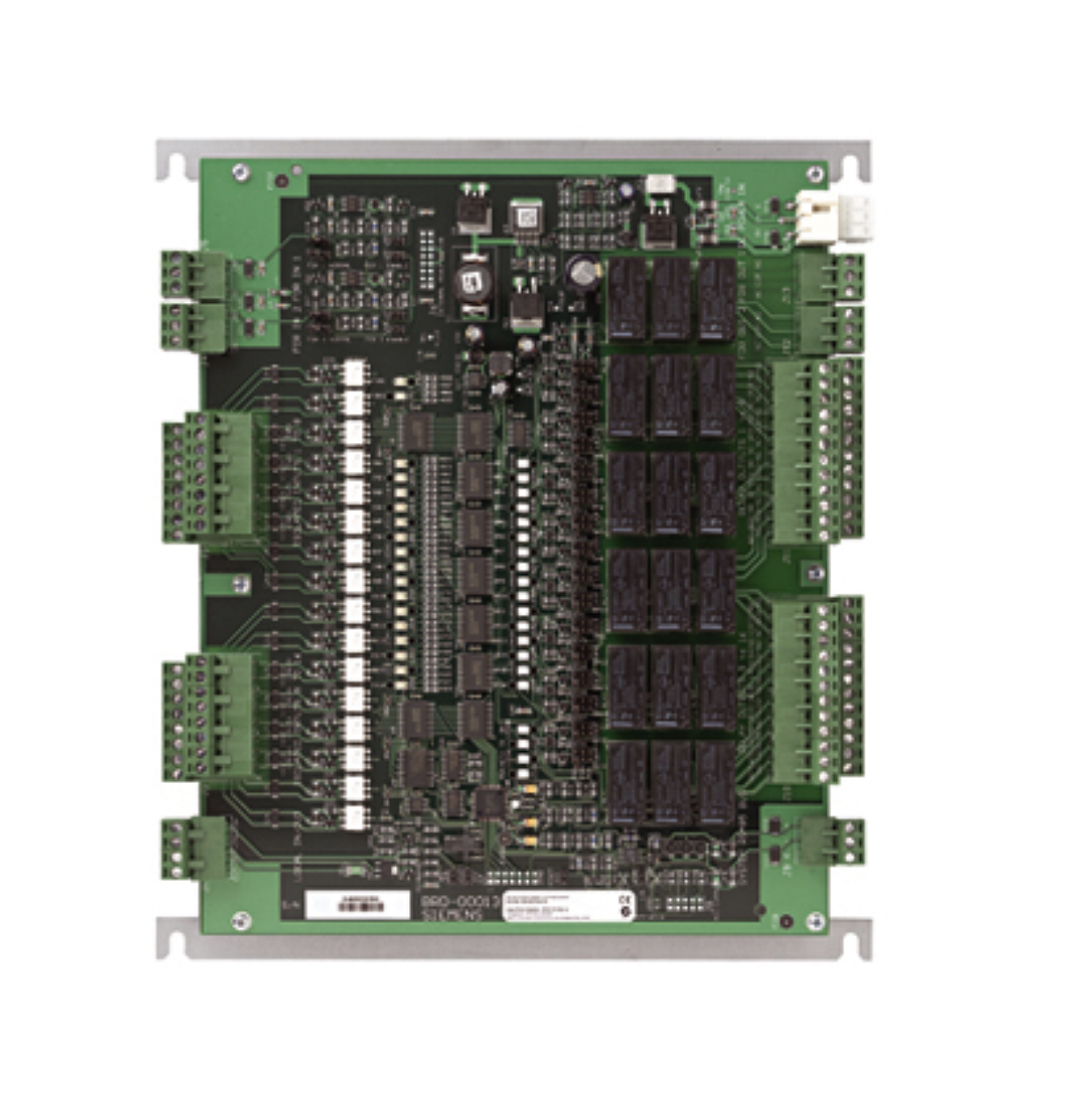

AFO5100 Output Module

Vänligen logga in för att se priser.
Är du inte Vanderbilt kund? Inget problem, du kan registrera dig här.
Behöver du en installatör av Vanderbilt produkter? Klicka här
  • V6FL7820-8CC10
  • 4025515475132
Produktinformation "AFO5100 Output Module"
The AFO5100 is an advanced‚ multi-purpose module that provides an interface between powered field-level input contact devices (such as elevator buttons) and output devices (such as override mechanisms) to the advanced central controller (AC5100‚ AC5102 or AC5200). It is designed for use in elevators that are integrated within an access control environment. A single AFO5100 can provide access control for up to 16 floors and multiple AFO5100 modules can be combined in an elevator system to provide access control for all floors. The fire override mechanism allows floors to be made automatically accessible during an emergency situation‚ a critical feature for sites where legislation requires strict emergency responses.
Bruttovikt (KG) 1.47
Mängdenhet PCE
EAN/UPC-Kod: 4025515475132
Minsta orderantal 1
Ursprungsland HU
Material code V6FL7820-8CC10
Nettovikt 1.392
Statistisk kod 84733020
Dimensions (W x H x D): 216 x 267 x 30 mm
Vikt: 1.3 kg
Utgångar: 16 x Relays (30 VDC‚ 2 A) 1 x Tamper (open-collector 12 VDC‚ 100 mA) 2 x Fire override relays (30 VDC‚ 2 A)
Ingångar: 16 x Isolated (unsupervised external voltage required) 1 x Tamper (internally supplied) 2 x Fire override (potential-free or internally supplied)
Indikeringar: Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override
Strömförbrukning: 50 W
Driftspänning : 12 VDC ±10% or 24 VDC ±10%
Gränssnitt: To controller: RS485
Gränssnitt: Al controllore: RS485
Arbetstemperatur: 0 to +50 °C
Godkännande: CE‚ UL294‚ C-Tick
Firmware: Flash upgradeable
