AC5200 SiPass integrated ACC-Lite

Denna Produkt är inte tillgänglig för tillfället!
Vänligen logga in för att se priser.
Är du inte Vanderbilt kund? Inget problem, du kan registrera dig här.
Behöver du en installatör av Vanderbilt produkter? Klicka här
  • V54507-C5-A1
  • 4025515474005

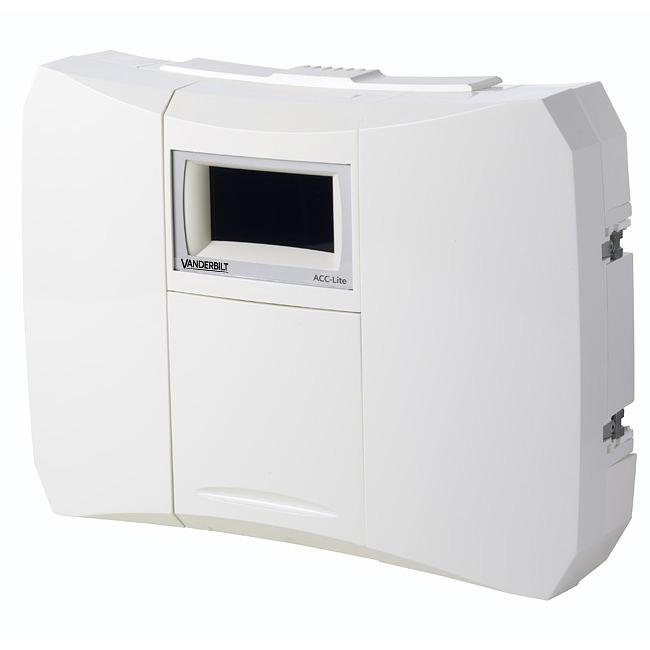

Produktinformation "AC5200 SiPass integrated ACC-Lite"
The AC5200 is a smaller version of Vanderbilt’ high-performance IP-based advanced central controller models (AC5100 and AC5102). It can manage up to 40‚000 cardholders. The ACC-Lite has been specially designed to provide a low-cost alternative for smaller or branch installations. It provides one field level network (FLN) channel which is capable of hosting up to 8 doors for access control, monitoring input devices or controlling output devices. Firmware can be easily downloaded or updated via TCP/IP connection without having to visit the controller cabinets. Communication with the host system occurs via a two-port Ethernet switch which provides 10/100Mb LAN connection. This makes it possible to “daisy chain” controllers. TCP/IP communication ensures the fastest possible transaction times between the host system and the field panels. In case of power failure the database on the ACC-Lite is protected in battery-backed memory. This maintains the integrity of the access control data and ensures that the ACC-Lite is back online as soon as power is restored.
Bruttovikt (KG) 0.98
Mängdenhet PCE
EAN/UPC-Kod: 4025515474005
Minsta orderantal 1
Ursprungsland PH
ECCN 5A992
Statistisk kod 84715000
Nettovikt 0.931
Material code V54507-C5-A1
Kapsling: Plastic housing for wall mounting
Strömförbrukning: 24 W
Antal dörrar: Eight
Kortkapacitet: 40,000
LCD Display: Alphanumeric
Knappsats: 4 x 4 matrix
Sabotagekontakt: Integrated
Vikt: 0.70 kg
Gränssnitt: Communication interfaces: RS232, RS485, TC/IP for LAN/WAN - RJ45: 2 x Points, 10/100 MB Ethernet (Switched) - RS485: FLN interface, two-wire, max. eight devices per FLN bus. - RS232 modem communications
Godkännande: CE, C-Tick
Gränssnitt: Interfacce di comunicazione: RS232, RS485, LAN/WAN TCP/IP - TCP/IP (RJ45): 2x punti, Ethernet 10/100 MB (Switched) - RS485: interfaccia FLN , due fili, max. 8 dispositivi. - RS232: comunicazione modem
Kapslingmaterial: Contenitore in plastica per montaggio a parete
Arbetstemperatur: 0 to +50 °C
Dimensions (W x H x D): 248 x 182 x 66 (mm)
Strömförbrukning: 100 mA @24V DC 200 mA @12V DC
Miljö: Indoor use only
Färg: White
Driftspänning : 8 ~ 40 VDC‚ 8 ~ 30 VAC
