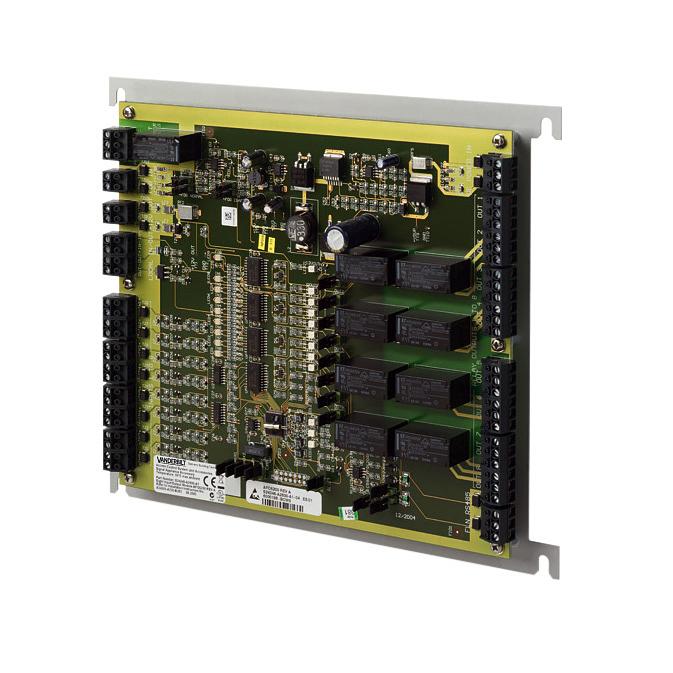

AFO5200 8-Input/Output Module


Vänligen logga in för att se priser.
Är du inte Vanderbilt kund? Inget problem, du kan registrera dig här.
Behöver du en installatör av Vanderbilt produkter? Klicka här
  • V24246-A2600-A1
  • 4025515475323
Produktinformation "AFO5200 8-Input/Output Module"
The AFO5200 is an advanced‚ multi-purpose module that provides an interface between field-level input devices (such as passive infrared detectors) and output devices (such as locking devices) to the advanced central controller (AC5100‚ AC5102 or AC5200).
Bruttovikt (KG) 1.1
Mängdenhet PCE
EAN/UPC-Kod: 4025515475323
Minsta orderantal 1
Ursprungsland HU
Material code V24246-A2600-A1
Nettovikt 1.045
Statistisk kod 84733020
ECCN EAR99
Dimensions (W x H x D): 250 x 210 x 40 mm
Vikt: 1 kg
Arbetstemperatur: 0 to +50 °C (32 to 122 °F)
Indikeringar: Power, Activity, Communication Inputs, Output Peripheral supplies Fire override
Utgångar: 8 x Relays (30 VDC, 2 A) 1 x Local output (open-collector 9.7-12 VDC, 100 mA) 1 x Fire override relays (30 VDC, 2 A)
Ingångar: 8 x Isolated (internally supplied, unsupervised or supervised) 1 x Local input 1 x Fire override (potential-free or internally supplied)
Godkännande: CE, UL294, C-Tick
Strömförbrukning: Max. 2 A at 12 V, max. 1.5 A at 24 V
Driftspänning : 12 VDC ±10% or 24 VDC ±10%
Gränssnitt: To controller: RS485
Gränssnitt: Al controllore: RS485
Firmware: Flash upgradeable
