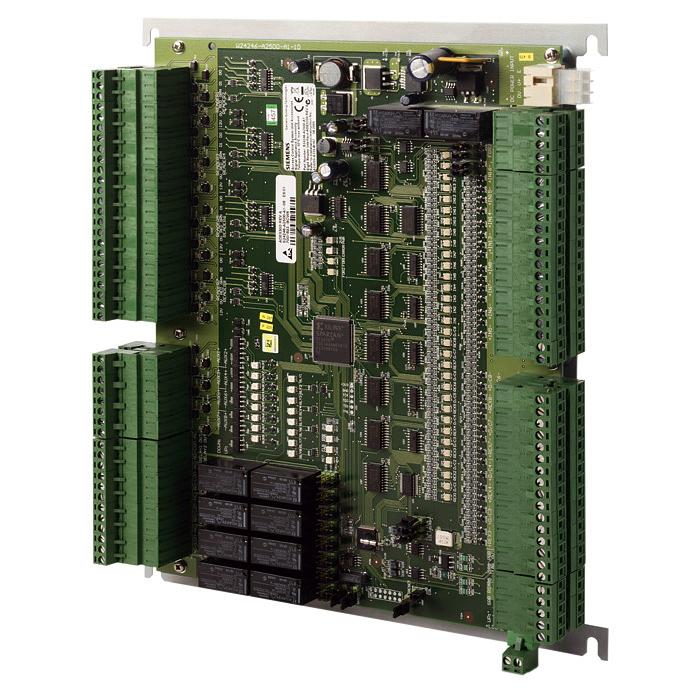

ADE5300 Eight Reader Interface

Vänligen logga in för att se priser.
Är du inte Vanderbilt kund? Inget problem, du kan registrera dig här.
Behöver du en installatör av Vanderbilt produkter? Klicka här
  • V24246-A2500-A1
  • 4025515475316
Produktinformation "ADE5300 Eight Reader Interface"
The ADE5300 provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and up to 8 card readers. From the ADE5300‚ the information held within the access cards is transmitted to the controller. Each time an access attempt is made the controller verifies the data on the ID card and will then either allow or deny access. The ADE5300 can be configured to control up to 8 doors separately or up to 4 doors that include both entry and exit readers. All variations are possible; for example‚ you can have six single-reader doors and 1 dual-reader door connected to one ADE5300.
Bruttovikt (KG) 1.6
Mängdenhet PCE
EAN/UPC-Kod: 4025515475316
Minsta orderantal 1
Ursprungsland HU
Material code V24246-A2500-A1
Nettovikt 1.520
Statistisk kod 84733020
Gränssnitt: FLN connection to controller: RS485 To readers: Support for eight readers via RS485 or Wiegand
Gränssnitt: FLN connection to central controller: RS485 Connection to readers: support for 8 RS485 or Wiegand readers
Godkännande: CE, UL294, C-Tick
Vikt: 1.65 kg
Indikeringar: Power, Activity, FLN Communication, Reader bus communication, Input/output, Fire override
Ingångar: 8 x Door contact 8 x Request-to-exit 16 x Auxiliary All inputs unsupervised or supervised 2 x Fire override (normal or enhanced mode)
Utgångar: 8 x Lock output relay (30 VDC, 2 A) 8 x Open-collector output (100 mA, 9.7-12 VDC) 2 x Fire override relay (30 VDC, 2 A)
Strömförbrukning: Max. 2 A at 12 V, max. 1.5 A at 24 V
Spänningsutgång: Reader: 8 x 400 mA‚ 12 VDC Ancillary: 1 x 1.5 A‚ 12 VDC
Driftspänning : 12 VDC ±10 % or 24 VDC -± 10 %
Sabotagekontakt: Optional, auxiliary input
Firmware: Flash upgradeable
Dimensions (W x H x D): 250 x 287 x 50 (mm)
