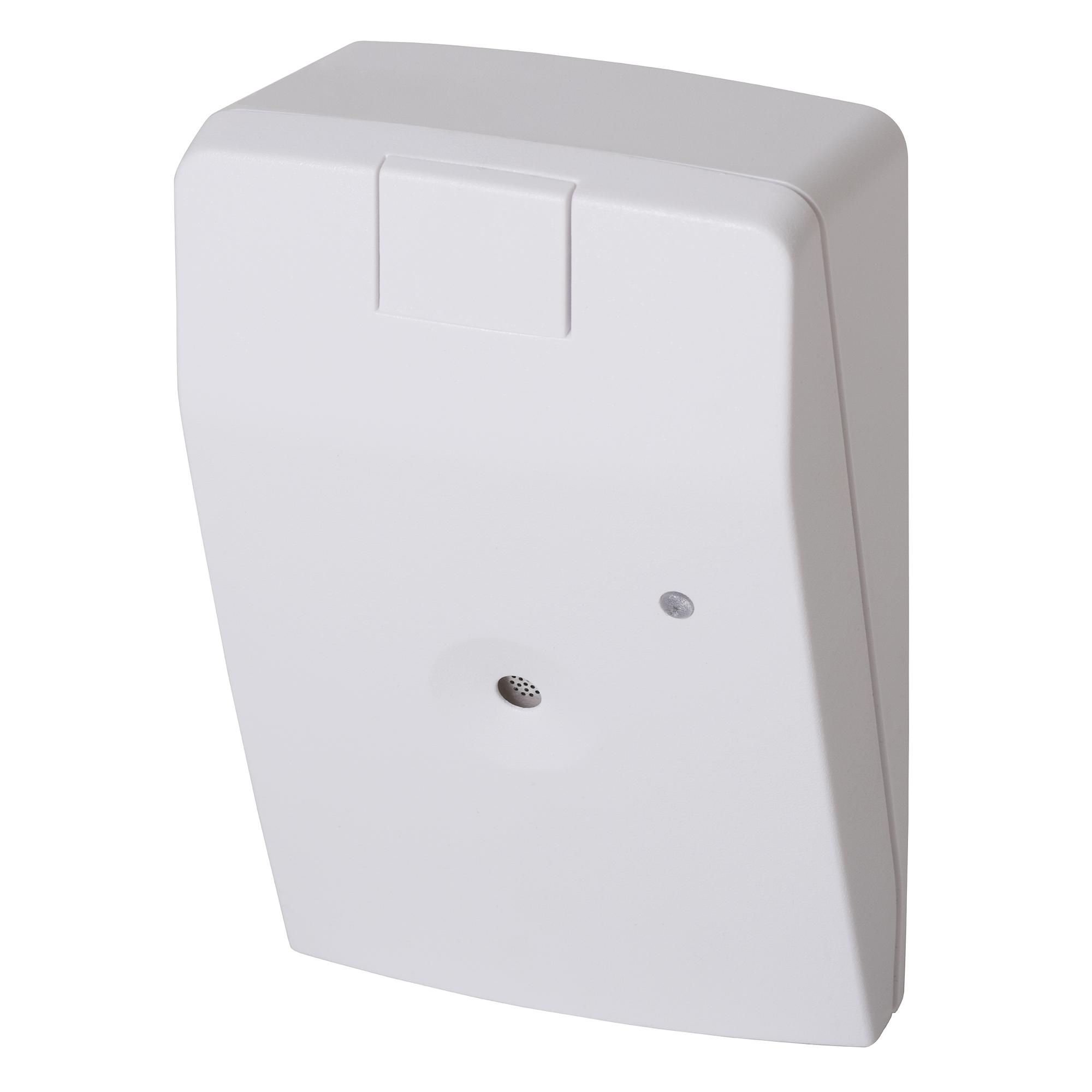

AGB800 Rilev. acustico rottura vetri G2
Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
- Numero Ordine: V54535-Z130-A100
- EAN/UPC-Code: 7330082004034
Descrizione
Certificates
Importazioni ed esportazioni
Risorse
Dati tecnici
Documentazione
link utili
Informazione prodotto "AGB800 Rilev. acustico rottura vetri G2"
The AGB800 is a modern acoustic glass break detector giving an alarm when glass is broken due to attempted intrusion through doors,
windows and glazed walls.
The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room
Compensation feature enables the detector to distinguish between glass breaking and general background noise.
- Certificate (CE) - Issued by Vanderbilt
- Certificate - Issued by SBSC, on 05/02/2019
- Certificate - Issued by SBSC, on 05/02/2019
- Certificate - Issued by VdS, on 10/05/2021
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VSÖ, on 10/05/2021
- Certificate - Issued by KVALITET, on 22/05/2019
- Certificate (UKCA) - Issued by Vanderbilt
- Certificate (CE) - Issued by Vanderbilt, on 02/07/2022
- Certificate - Issued by SBSC, on 01/01/2023
Tensione di alimentazione: | 7...30VDC |
Dimensions (W x H x D): | 69 x 110 x 39mm |
Interruttore tamper: | 50mA @ 50VDC |
Corrente di riposo: | 9mA @ 12VDC 6mA @ 24VDC |
Cosumo di corrente, a riposo: | 9mA @ 12VDC 6mA @ 24VDC |
Custodia: | ABS plastic, white |
Classe ambiente: | Class 1 |
Peso: | 0.126Kg |
Certificazione: | EN50131-2-7-1 Grade 2 VdS Class B G117505 |
Contatto tamper: | 50mA @ 50VDC |
Uscita Allarme: | 50mA @ 50VDC |
Portata : | 9.0m @ 165º |
Consumo corrente: | Alarm - 9mA @ 12VDC Alarm - 6mA @ 24VDC |
Temperatura di lavoro: | +5....+40ºC |
- Datasheet - (German) - agb800
- Datasheet - (Spanish) - agb800
- Datasheet - (French) - agb800
- Datasheet - (Italian) - agb800
- Datasheet - (Swedish) - agb800
- Datasheet - (English) - agb800
- Installation Manual - (German) - agb800
- Installation Manual - (English) - agb800
- Installation Manual - (Spanish) - agb800
- Installation Manual - (French) - agb800
- Installation Manual - (Swedish) - agb800
