AGB800-AM Avv. acustico rottura vetri G3
Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
- Numero Ordine: V54535-Z129-A100
- EAN/UPC-Code: 7330082004027
Descrizione
Certificates
Importazioni ed esportazioni
Risorse
Dati tecnici
Documentazione
link utili
Informazione prodotto "AGB800-AM Avv. acustico rottura vetri G3"

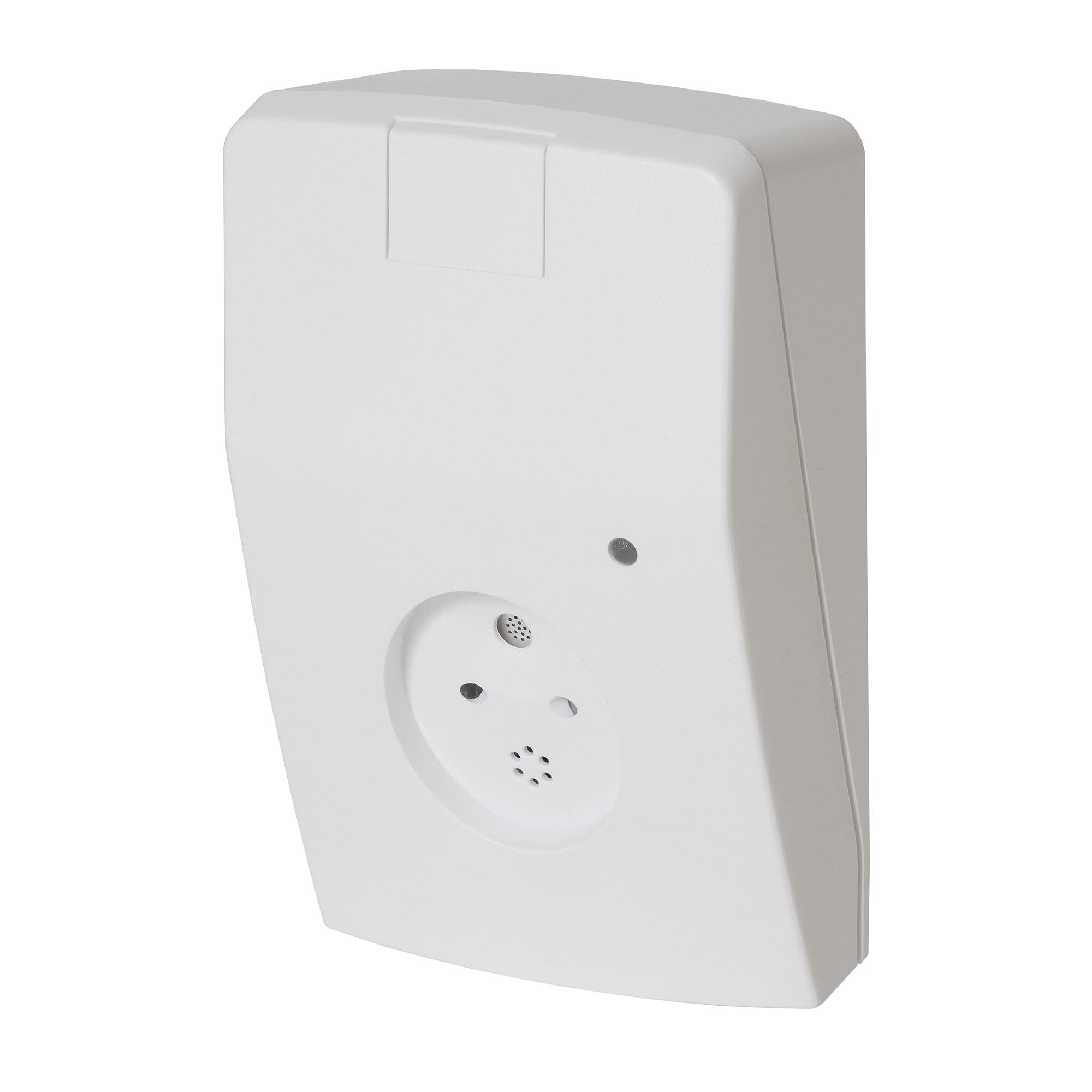

The AGB800-AM is a modern acoustic glass break detector, complete with anti-mask detection giving an alarm when glass is broken due
to attempted intrusion through doors, windows and glazed walls.
The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room
Compensation feature enables the detector to distinguish between glass breaking and general background noise.
- Certificate (CE) - Issued by Vanderbilt
- Certificate - Issued by SBSC, on 05/02/2019
- Certificate - Issued by SBSC, on 05/02/2019
- Certificate - Issued by VdS, on 10/05/2021
- Certificate - Issued by VdS, on 10/05/2021
- Certificate - Issued by VSÖ, on 10/05/2021
- Certificate - Issued by KVALITET, on 22/05/2019
- Certificate (UKCA) - Issued by Vanderbilt, on 29/09/2021
- Certificate (CE) - Issued by Vanderbilt, on 02/07/2022
- Certificate - Issued by SBSC, on 01/01/2023
Classe ambiente: | Class 1 |
Temperatura di lavoro: | -25....+40ºC |
Dimensions (W x H x D): | 69 x 110 x 39mm |
Corrente di riposo: | 12mA @ 12VDC 8mA @ 24VDC |
Cosumo di corrente, a riposo: | 12mA @ 12VDC 8mA @ 24VDC |
Uscite Allarme: | 50mA @ 50VDC |
Certificazione: | EN50131-2-7-1 Grade 3 VdS Class B G117506 |
Consumo corrente: | Alarm - 12mA @ 12VDC Alarm - 8mA @ 24VDC |
Interruttore tamper: | 50mA @ 50VDC |
Custodia: | ABS plastic, white |
Peso: | 0.126Kg |
Contatto tamper: | 50mA @ 50VDC |
Tensione di alimentazione: | 7....30VDC |
- Datasheet - (German) - agb800am
- Datasheet - (Spanish) - agb800am
- Datasheet - (French) - agb800am
- Datasheet - (Italian) - agb800am
- Datasheet - (Swedish) - agb800am
- Datasheet - (English) - agb800am
- Installation Manual - (German) - agb800am
- Installation Manual - (English) - agb800am
- Installation Manual - (Spanish) - agb800am
- Installation Manual - (French) - agb800am
- Installation Manual - (Swedish) - agb800am
