SPCN342.000 2G/3G/4G Module incl.antenna

Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
  • V54550-B102-A600
  • 7330082006700
Informazione prodotto "SPCN342.000 2G/3G/4G Module incl.antenna"

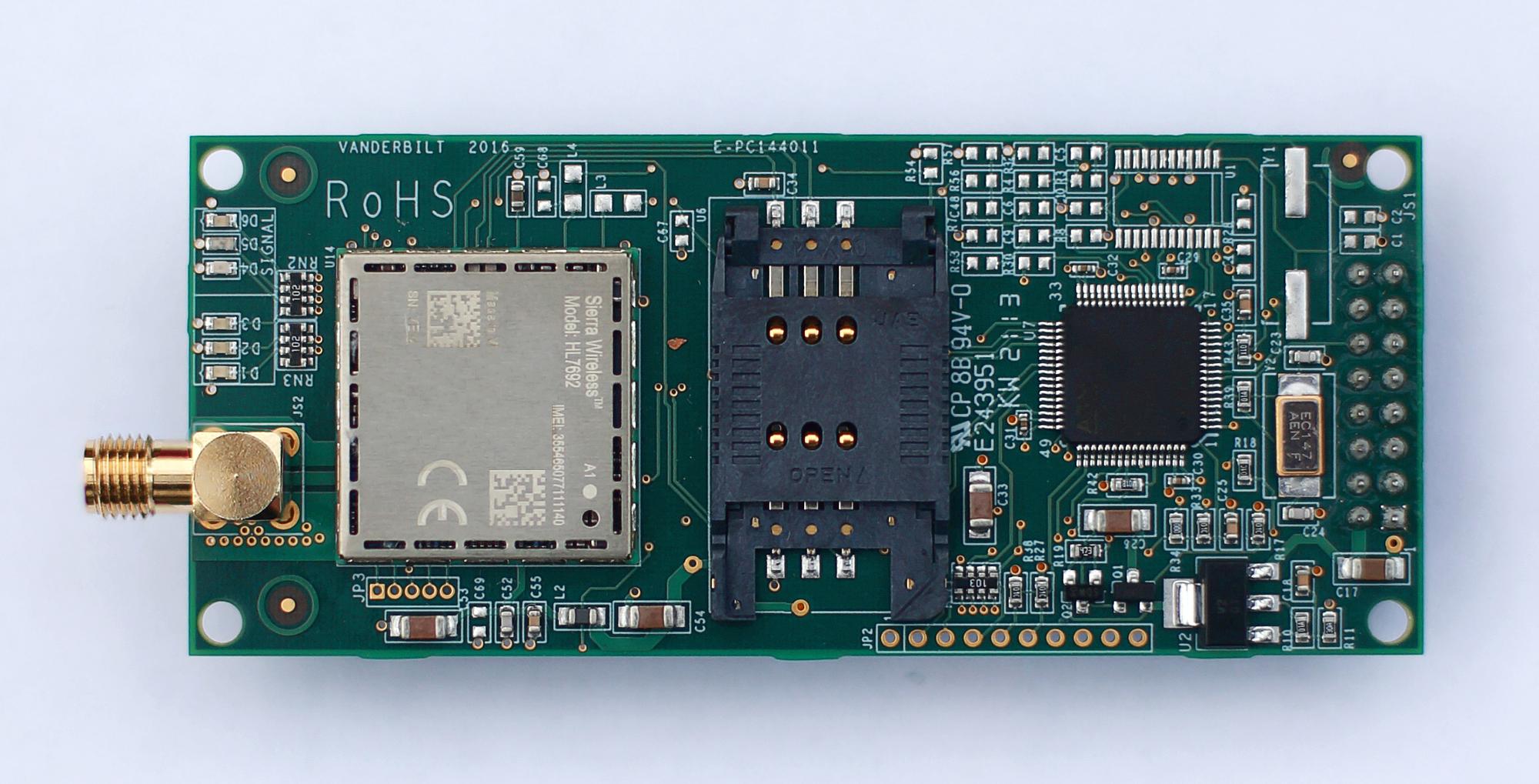

The SPCN342.000 2G/3G/4G module can be assigned to any mobile network by the insertion of a standard SIM card. The modem is compatible with the complete range of acre Intrusion panels and plugs directly on the main PCB removing the need for any additional wiring. The unit comes with an external antenna that fits on the cabinet. The modem communicates with an alarm receiving centre (ARC) using IP based protocols like EDP or FlexC over 2G/3G/4G (FW3.14.1 or later) to transmit alarm event to compatible alarm receiving centres. It also supports PPP connection to acre Intrusion Connect Pro Software for remote programming and configuration up-/download. The SMS feature allows user/engineer to be sent a predefined text when selected events occur in the system or receiving of predefined SMS commands for security system control. The 2G/3G/4G modem can be used as the primary source of communication or as backup to the PSTN modem or IP communication.
Peso lordo(KG) 0.126
Unità di acquisto PCE
EAN/UPC-Code: 7330082006700
Ordine minimo 1
Paese d'origine PH
Peso netto 0.056
Codice materiale V54550-B102-A600
ECCN 3A991
Codice statistico 85176200
Montaggio : Plug on module to acre intrusion controller
Firmware: FW3.14.1 or later
Certificazione: EN, VDS
Umidità relativa: Max. 90 % (non-condensing)
Corrente di lavoro: Max. 130 mA at 12 VDC
Peso: 0.130 kg
Corrente di riposo: Max. 40 mA at 12 VDC
Temperatura di lavoro: -10° ~ +50 °C
