SPC6350.320-L1 Antintrusione CP, G5
Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
- Numero Ordine: V54541-C118-A100
- EAN/UPC-Code: 4025515470816
Informazione prodotto "SPC6350.320-L1 Antintrusione CP, G5"
La centrale SPC6350.320 combina in modo ottimizzato protezione dalle
intrusioni e controllo accessi. In base alle esigenze del cliente e del
progetto, la centrale può essere configurata per gestire sino a 512 zone
(di cui 16 a bordo), 512 uscite (di cui 12 a bordo), 32 tastiere di
sistema, 64 porte e 16 zone di verifica. La scheda di controllo supporta
2 porte X-BUS (2 linee bus o 1 anello), 60 aree, 2500 utenti con livelli
di accesso differenziati, memoria per 10.000 eventi intrusione e 10.000
eventi di controllo accessi, web server integrato, 2 terminazioni per
innestare i moduli opzionali PSTN e GSM, interfaccia Ethernet a bordo.
Il sistema è espandibile con moduli radio e supporta sino a 64

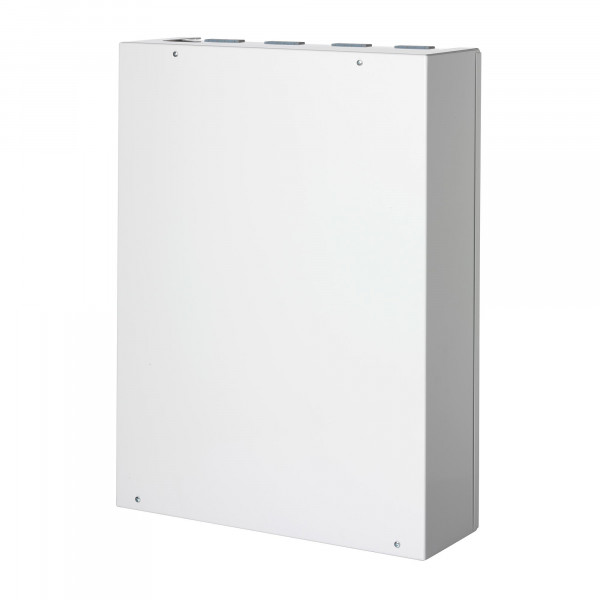

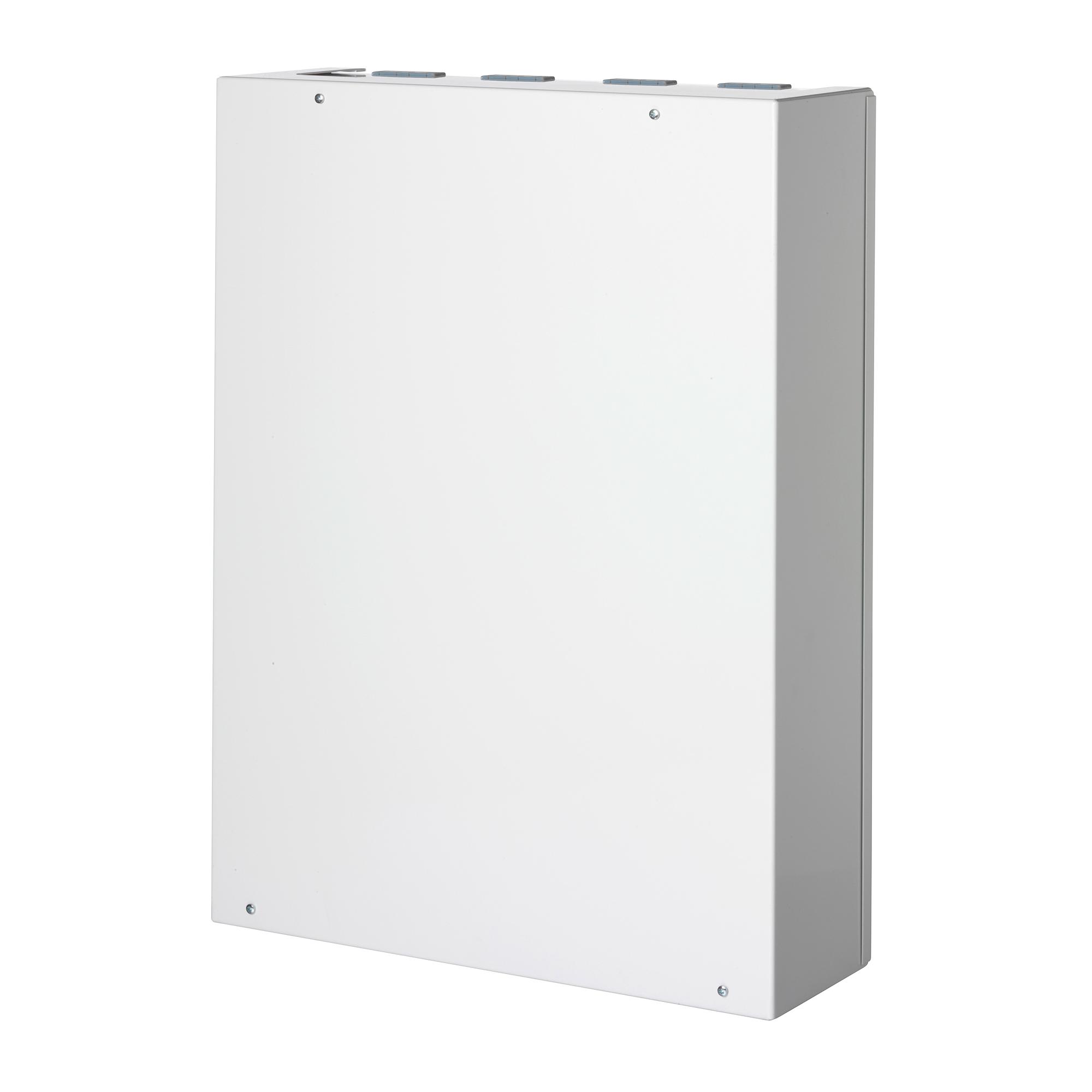

rivelatori (prendono il posto delle cablate). La centrale è fornita in
un contenitore metallico con protezione anti-tamper e capace di
contenere 2 batterie 27 Ah e 4 espansioni aggiuntive.
- Certificate (CE) - Issued by Vanderbilt, on 03/11/2020
- Certificate - Issued by CNPP, on 23/11/2021
- Certificate - Issued by SBSC, on 16/10/2017
- Certificate - Issued by SBSC, on 16/10/2016
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 28/05/2021
- Certificate - Issued by VdS, on 28/05/2021
- Certificate - Issued by VSÖ, on 28/05/2021
- Certificate (MSDS) - Issued by Supplier, on 10/01/2020
- Certificate (UN38.3) - Issued by Supplier, on 19/12/2019
Numero di zone a bordo: | 16 |
Verifica: | 16 zone di verifica con sino a 4 telecamere IP e 8 dispositivi audio |
Audio: | Sino a 120+120 secondi di registrazione audio pre- e post-evento |
Interfaccia: | X-BUS (2 linee o 1 loop), 2 RS232 (per X-10 o comunicazione esterna), 1 USB (Connessione PC), 1 SPC Programmatore veloce, 1 Ethernet (RJ45) |
Alimentazioni Principali: | 230 VAC, + 10% / -15%, 50 Hz |
Tensione di Uscita: | 13-14 VCC in condizioni normali (alimentazione principale presente e batteria completamente carica) |
Temperatura di lavoro: | 0 ~ +40 °C |
Video: | Sino a 16+16 immagini pre- e post-evento (risoluzione JPEG 320 x 240, max. 1 frame/sec) |
Custodia: | Contenitore metallico (acciao dolce 1,5 mm) |
Uscite relè: | 4 (contatto singolo in scambio, 30 V CC / max. 1 A con carico resistivo) |
Resistenza EOL: | Doppio 4k7 (default), altre combinazioni di resistenze configurabili |
Contatto tamper: | Tamper frontale e posteriore a scatto, 1 ingresso per contatto tamper ausiliario |
Corrente di lavoro: | Max. 415 mA a 12 VCC (tutti i relè attivi) |
Corrente di riposo: | Max. 350mA a 12 VCC |
Linguaggio: | Multi-language support (de, en, es, fr, it, nl, sv, vls, 1 file di lingua importato) |
Certificazione: | DE: VdS G112104, Klasse C AT: W 130923/10 E, Klasse WS In Zertifizierungsverfahren nach SES EN CH Grad 3 FFIS A 11001 A - 1 bis Kat. 2 Ablauf der FFIS Genehmigung per 31.12.2014 |
Potenza di uscita: | Max. 2,2 A @ 12 V DC (8 x outputs with 300 mA) |
Peso: | 18,6 Kg (contenitore con copertura),11,5 Kg (contenitore senza copertura) |
Numero massimo di zone radio: | 64 (a riduzione del totale delle zone cablate) |
Capacità Porte: | Max. 64 porte solo ingresso o 32 porte con ingresso e uscita |
Numero massimo d'ingressi cablati: | 512 |
Memoria eventi: | 10.000 eventi intrusione, 10.000 eventi accessi |
Colore: | RAL 9003 (segnale bianco) |
Firmware: | V3.x |
Telecomando: | Fino a 100 |
Dimensions (W x H x D): | 498 x 664 x 157 mm |
- Datasheet (German) - spc6350
- Datasheet (English) - spc6350
- Datasheet (Spanish) - spc6350
- Datasheet (French) - spc6350
- Datasheet (Swedish) - spc6350
- Basic document (English) - SPC6350 AC Mains Transient Affect
- Installation instructions (Italian) - InstallAndConfig_PDF
- Installation instructions (Dutch) - InstallAndConfig_PDF
- Installation instructions (Danish) - InstallAndConfig_PDF
- Installation instructions (German) - InstallAndConfig_PDF
- Installation instructions (English) - InstallAndConfig_PDF
- Installation instructions (Spanish) - InstallAndConfig_PDF
- Installation instructions (French) - InstallAndConfig_PDF
- Installation instructions (Swedish) - InstallAndConfig_PDF
- Installation instructions (Multilingual) - TAS-Link-IV-EDP-Integration-in-SPC I-200568 DE
- Install manual (German) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Spanish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (French) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Italian) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Dutch) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (Swedish) - spcfwsp42xx43xx52xx53xx63xxv3.6
- Install manual (English) - 220_SPC Install and Config_A6V10276959-f_EN_I-200338
- Install manual (Multilingual) - 220_SPC Install and Config_A6V10276959-g_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.5_EN
- Planning guide (Multilingual) - SPC Matrix 3.13.7_EN
- Planning guide (French) - SPC Matrix 3.13.7_FR
- Planning guide (Italian) - SPC Matrix 3.13.7_IT
- Software (Multilingual - Version 04) - spcfwv3.8.5
- Software (English - Version 02) - SPC Power Calculation V3.0
- Software (German - Version 01) - SPC Stromberechnung V3.0
- Software (Multilingual - Version 01) - SPC CONFIGURATION TOOL 3.13.7
- Firmware (Multilingual - Version 01) - Firmware SPC 3.11.1
- Firmware (Multilingual - Version 02) - Firmware SPC 3.12.0
- Firmware (Multilingual - Version 02) - Firmware SPC 3.13.1
- Firmware (Multilingual - Version ) - Firmware (Multilingual - Version 01) - Firmware SPC 3.13.7
- Firmware (Multilingual - Version ) - SPC Firmware 3.14.1_20230517
- Software (Multilingual - Version 01) - SPC Connect Pro 3.14.1 Configuration Tool
- Software (Multilingual - Version 01) - SPC CONFIGURATION TOOL 3.13.7
