VR40S-MF NGCR MIFARE EV1 Lettore +tast.
Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
- Numero Ordine: V54504-F102-A100
- EAN/UPC-Code: 4025515469841
Descrizione
Certificates
Importazioni ed esportazioni
Risorse
Dati tecnici
Documentazione
link utili
Informazione prodotto "VR40S-MF NGCR MIFARE EV1 Lettore +tast."

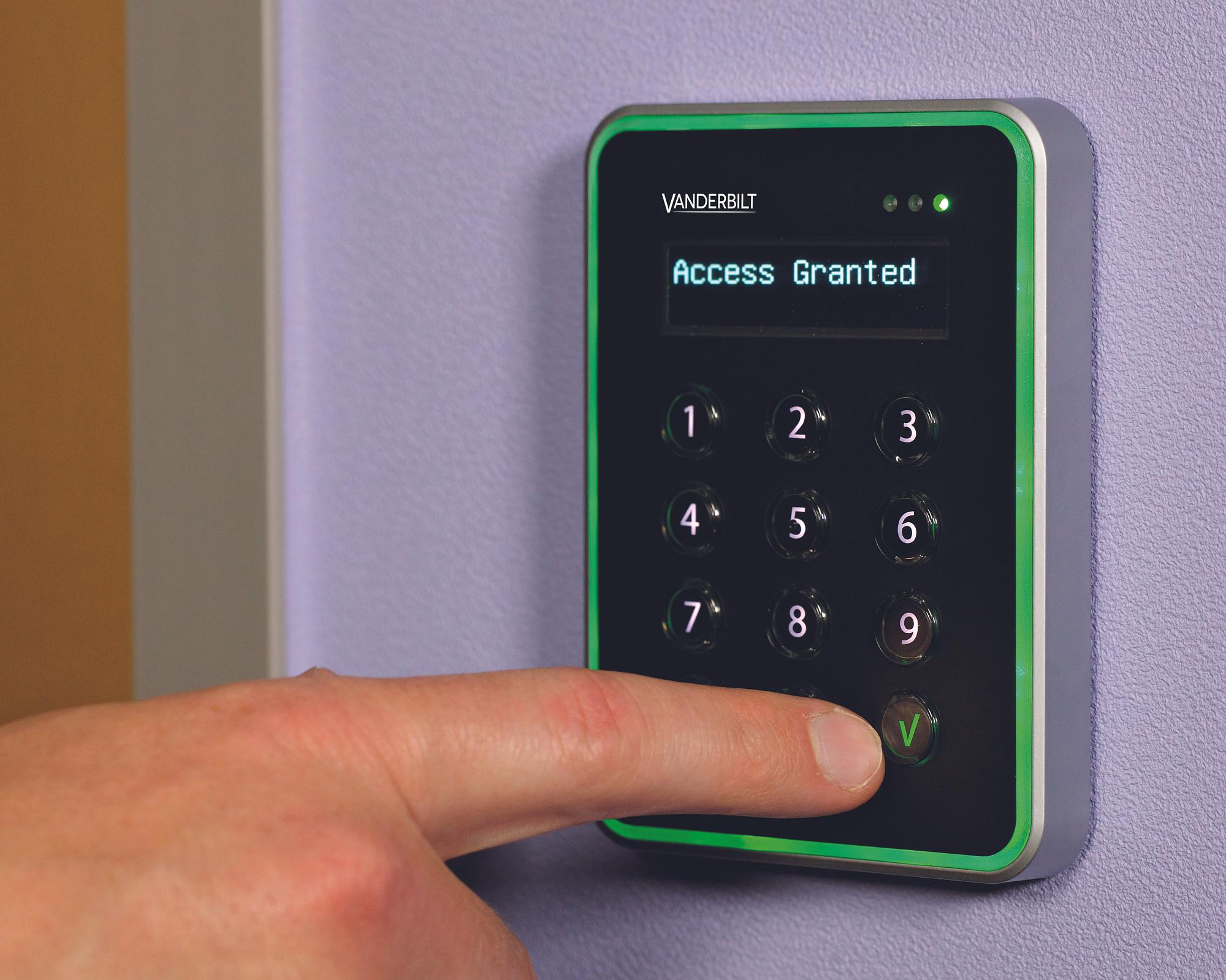

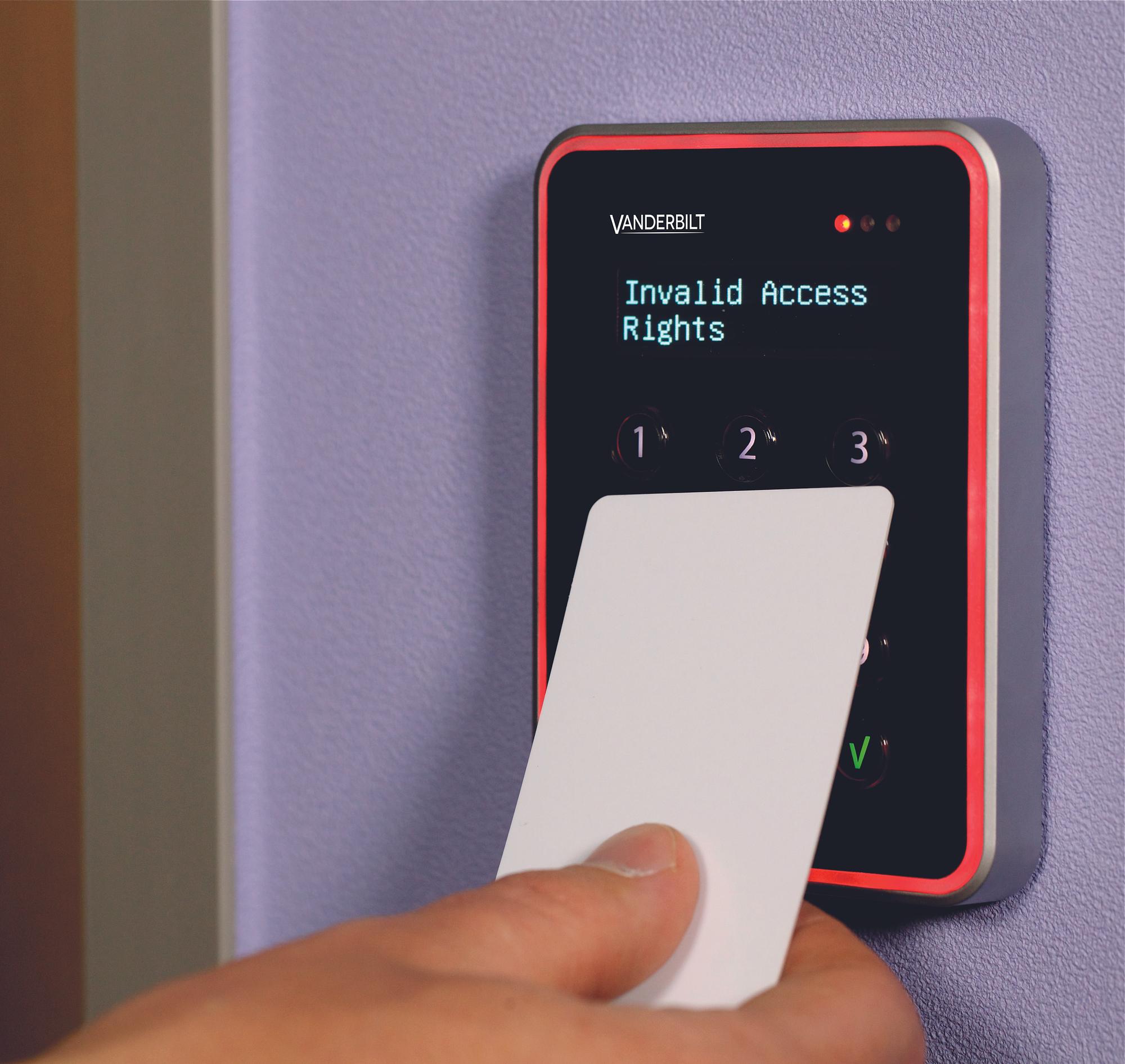

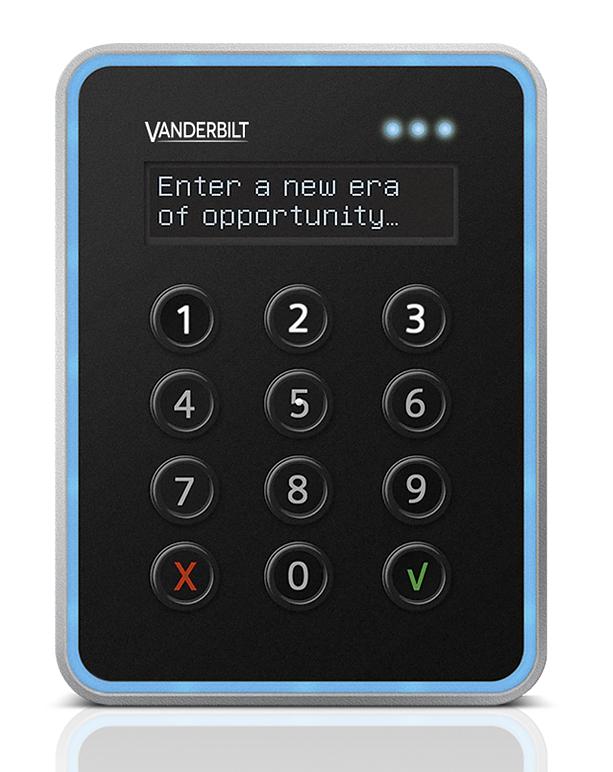

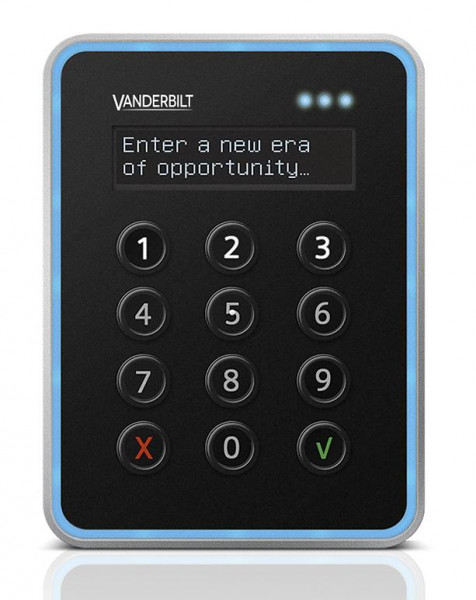

Progettato per gli interni luminosi e puliti di oggi, e allo stesso tempo robusto, il lettore
VR40S-MF è facile da installare,
utilizzare e mantenere.
VR40S-MF ha tre LED indicatori e un cicalino multi-tono per l'audio

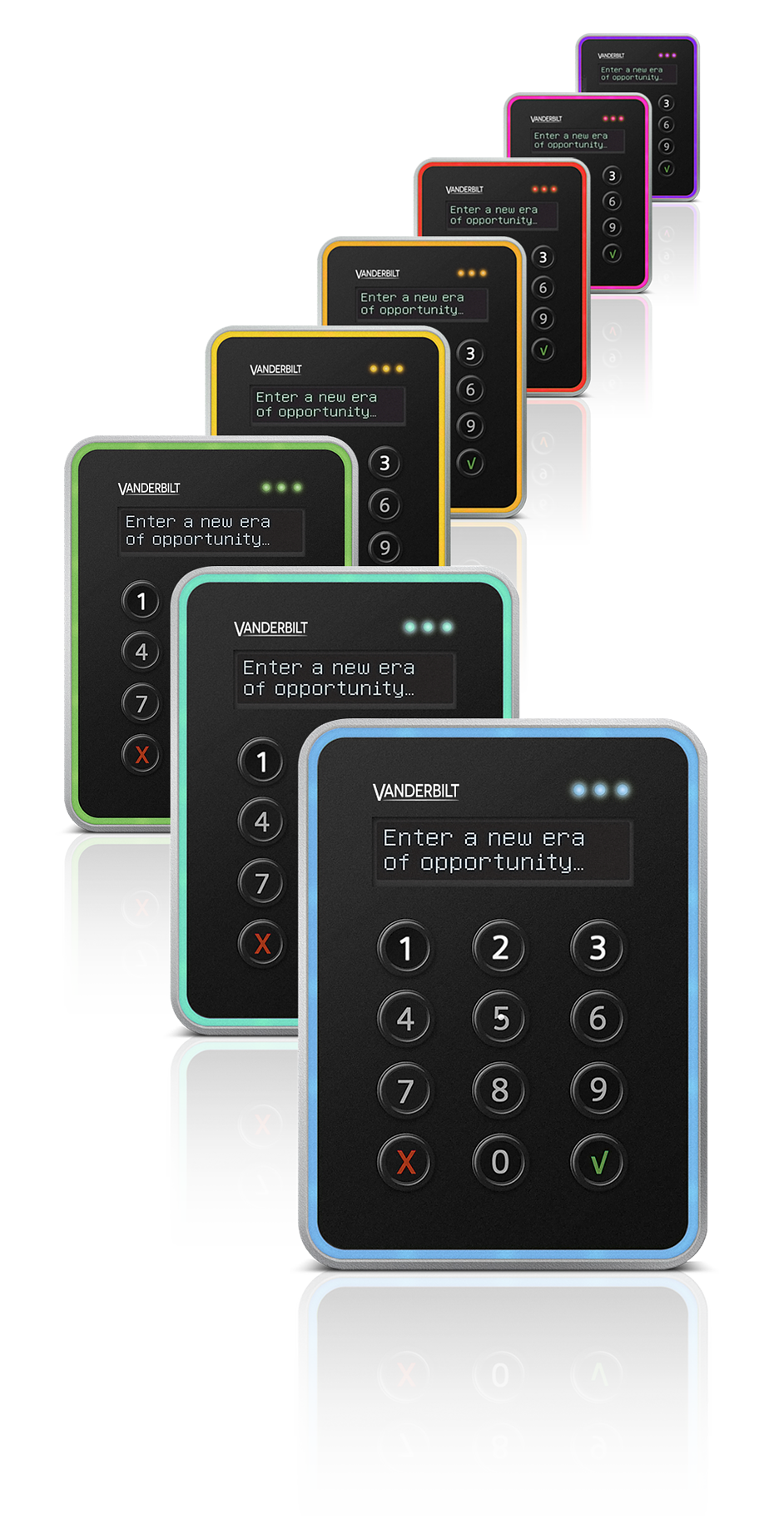

verifica. Una cornice chiara
multicolore può essere configurata per seguire i LED e dare informazioni sullo stato di accesso o altri tipi di informazione
configurabili.
Una tastiera retroilluminata di alta qualità con
feedback tattile e display OLED grafico massimizzano l
interazione con l´utente “alla porta" con messaggi di inserimento, accesso e riconoscimento ecc..
La luminosità del display viene
impostata automaticamente da un sensore di luce integrato.
Peso: | 500 gL'unità include i materiali d'imballaggio, gli accessori che sono inclusi nella consegna e la documentazione. |
Custodia: | Zinc casted metal bezel with polycarbonate plastic front |
Temperatura di lavoro: | -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted) |
Tastiera: | Yes |
Display: | Si, OLED monocromatico grafico |
Consumo corrente: | DC 12V: 60mA (Max: 220mA) DC 24V: 40mA (Max 125mA) |
Certificazione: | CE in accordo con le direttive R&TTE e EMC |
Umidità atmosferica (EN 60721): | 5-95% non-condensing |
Protezione Custodia: | IP55 (Montaggio superficiale) IP3X (Montata nel contenitore) |
Valore d'impatto: | IK08 |
Indicatori: | 3 x LED (rosso/giallo/verde)1 x BuzzerTelaio multicolore leggero |
Consumo di potenza: | DC 12V 60mA Picco 220mADC 24V 40mA Picco 125mA |
Compatibilità Tessera: | Mifare ClassicMifare PlusMifare DESFire EV1 |
Dimensions (W x H x D): | Montata in superficie: 85 x 114 x 22Montata nel contenitore: 85 x 114 x 14 |
Ambiente: | Uso per interni e esterni |
Colore: | Nero, cromo opaco |
Tecnologia Tessera: | Mifare |
Interfaccia al controllore: | RS485 OSDP |
Distanza di Lettura Tessera: | Fino a 6cm |
Protezione Tamper: | Yes |
Tensione di lavoro: | 8.5 – 30.0 VDC |
- Datasheet (Danish) - NGCR Family Datasheet DA
- Datasheet (French) - NGCR Family Datasheet FR
- Datasheet (German) - NGCR Family Datasheet DE
- Datasheet (English) - NGCR Family Datasheet EN
- Datasheet (Spanish) - NGCR Family Datasheet ES
- Datasheet (Swedish) - NGCR Family Datasheet SV
- Installation instructions (Swedish) - vr40smf
- Installation instructions (Czech) - vr40smf
- Installation instructions (Danish) - vr40smf
- Installation instructions (German) - vr40smf
- Installation instructions (Greek) - vr40smf
- Installation instructions (English) - vr40smf
- Installation instructions (Spanish) - vr40smf
- Installation instructions (Finnish) - vr40smf
- Installation instructions (French) - vr40smf
- Installation instructions (Italian) - vr40smf
- Installation instructions (Dutch) - vr40smf
- Installation instructions (Norwegian) - vr40smf
- Installation instructions (Polish) - vr40smf
- Installation instructions (Portuguese) - vr40smf
- Installation instructions (Russian) - vr40smf
- Installation mount
- Marketing flyer (English) - VR40S-MF Keypad for Omnis
- Marketing flyer (Swedish) - VR40S-MF som Manöverpanel i Omnis
