EMK46LSA-W4M Cont.magn.install,bianco,4m

Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
  • VDE6:9906360013
  • 4025515476719
Informazione prodotto "EMK46LSA-W4M Cont.magn.install,bianco,4m"

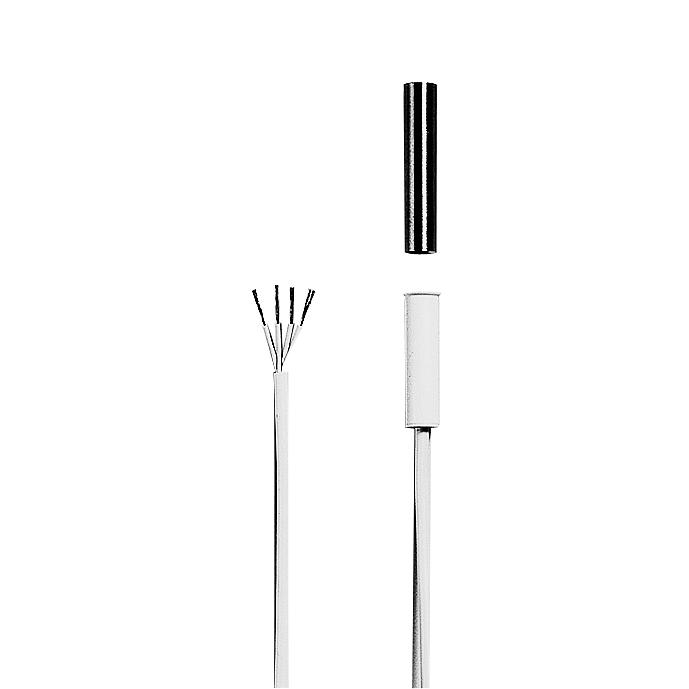

Recess mount magnetic contact suitable for doors and windows surveillance. High fuctional reliability through an integrained carrier board for the reed contact. For surface mounting the EMK-AT can be used.
Peso lordo(KG) 0.065
Unità di acquisto PCE
EAN/UPC-Code: 4025515476719
Ordine minimo 1
ECCN N
Codice materiale VDE6:9906360013
Paese d'origine DE
Peso netto 0.065
Codice statistico 85365080
Resistenza di contatto: 0.15 Ω
Lunghezza cavo: 4 m
Tensione di alimentazione: max. 40 VDC
Custodia: SB, ABS
Colore: White
Temperatura di lavoro: -40 ~ +70 °C
Portato contatto: Max. 6 W
Corrente di commutazione: Max. 500 mA
Tensione di commutazione: max. 100 VDC
Protezione Custodia: IP67
Certificazione: VdS geprüft, Klasse B, Nr.: G 191563 VSÖ geprüft, Klasse GS-H, Nr.: G 020703/22
