TKU16-4M Interruttore con bullone 4m

Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
  • NDE6:9901650013
  • 4025515476337
Informazione prodotto "TKU16-4M Interruttore con bullone 4m"

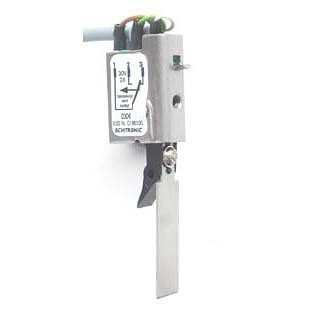

Electromechanical contact with dust and waterproof microswitch for monitoring closing of doors and windows with 4 meter (4M) connection cable. It is installed in the door frame and actuated by the lock bolt when the door shuts. The contact can be adapted to different bolt shapes by deforming the control lever.
Peso lordo(KG) 0.08
Unità di acquisto PCE
EAN/UPC-Code: 4025515476337
Ordine minimo 1
ECCN N
Peso netto 0.076
Codice materiale NDE6:9901650013
Paese d'origine DE
Codice statistico 85311095
Temperatura di lavoro: -40 ~ +65 °C
Protezione Custodia: Stainless steel, PA 6.6, PE soft
Custodia: IP50 (IP67 switch cover)
Corrente: 1 mA ~ 2 A
Certificazione: VdS geprüft, Klasse C, Nr.: G 186105 VSÖ geprüft, Klasse WS, Nr.: W 021014/15
Tensione: max. 30 VDC
