GMYA7-AS Test & Indication system-GM775

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54534-F101-A100
  • 4025515469605
Product information "GMYA7-AS Test & Indication system-GM775"

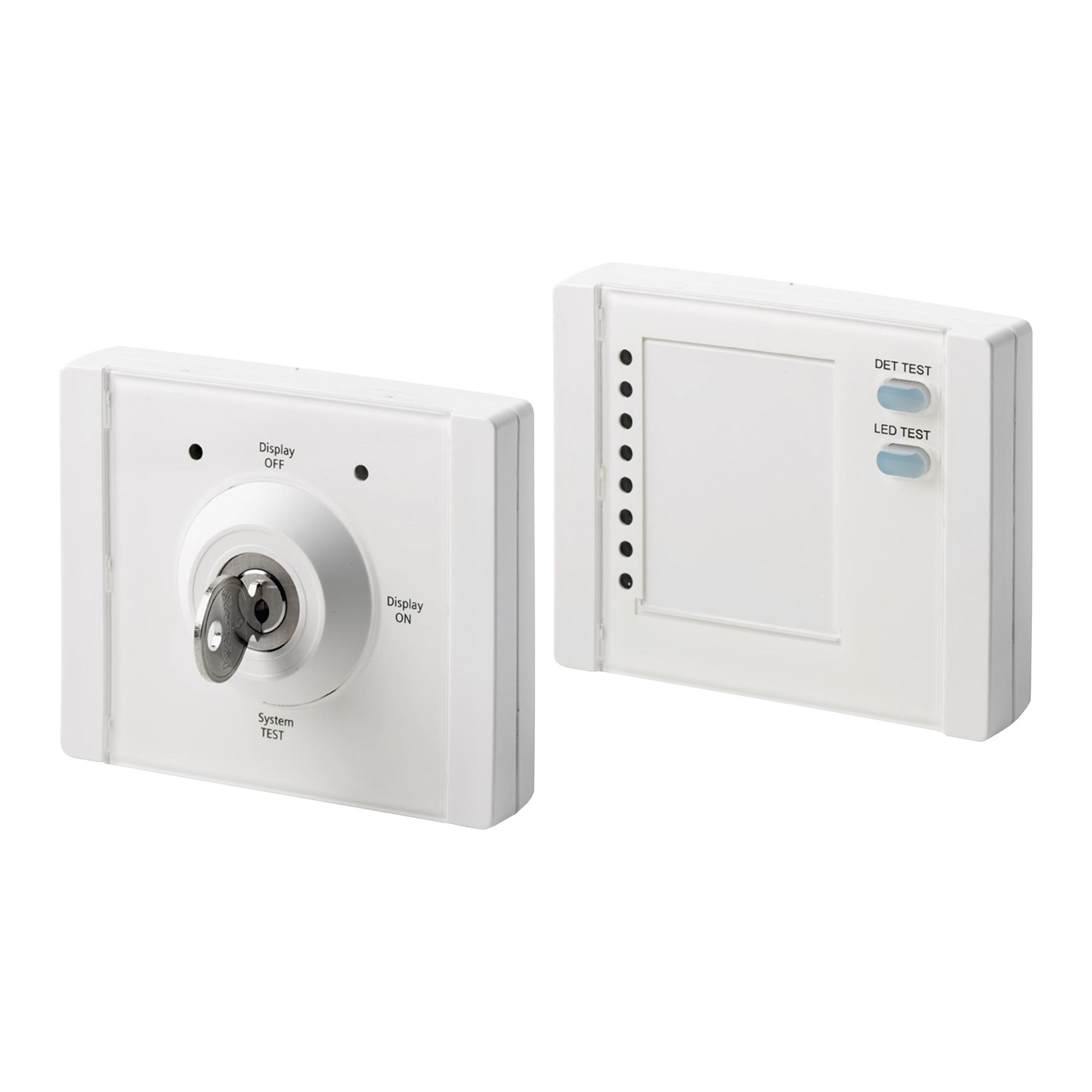

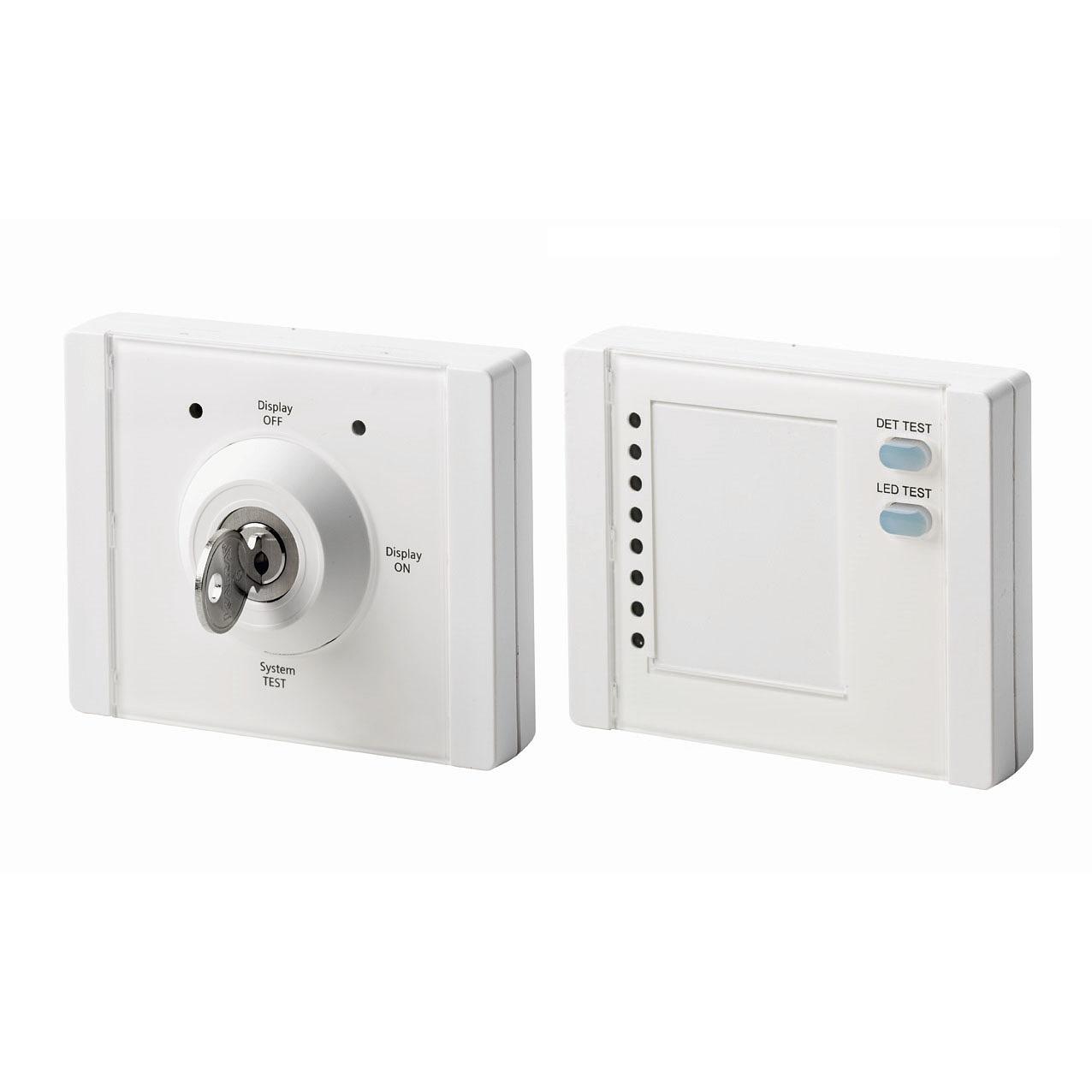

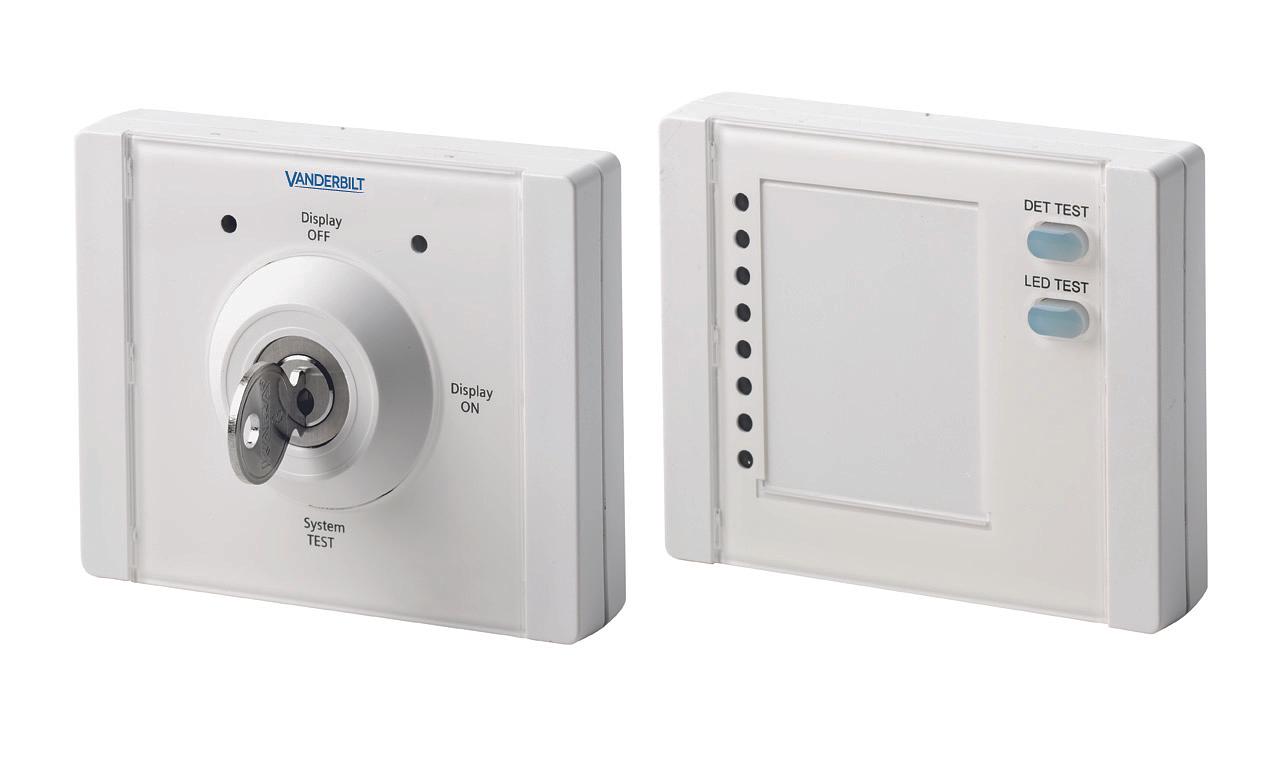

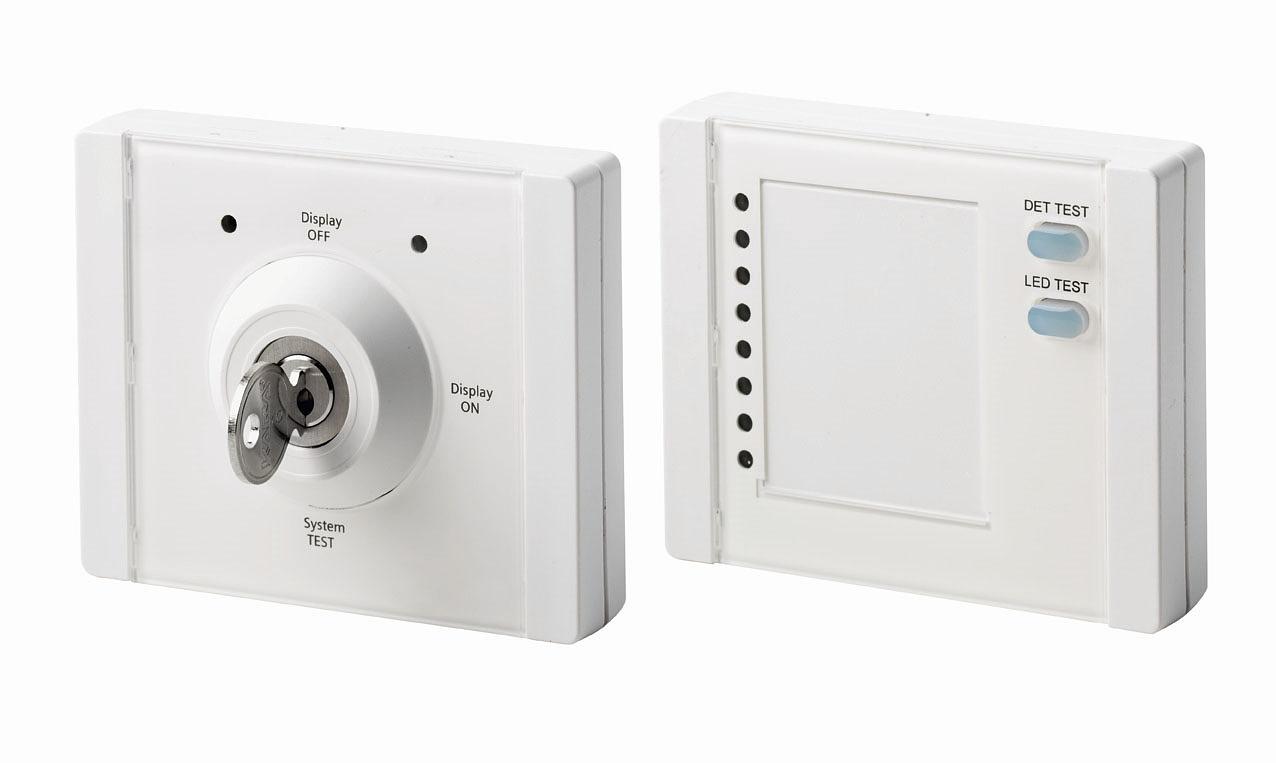

The GMYA7-AS remote test system consists of a key module and a single indicator module. It enables daily routine function tests to be conducted on up to 8 seismic detectors independent of an intruder alarm system. The GMYA-AS can only be used with the seismic detector GM775 and in combination with the GMXS1. The identification of alarms and test function independent of an alarm panel is mainly required and used for VdS approved seismic detector systems.
Gross weight (KG) 0.499
Purchase unit PCE
EAN/UPC-Code: 4025515469605
Minimum order 1
ECCN N
Material code V54534-F101-A100
Net weight 0.400
Statistical code 85311030
Country of origin PH
Operating temperature: -10°C to 55°C
Current consumption: Indicator module: max. 25 mA Key module: max. 18 mA
Weight: 0.800 kg
Storage temperature: -20°C to 60°C
Power supply: 8 - 16 VDC (12 V nominal)
Housing protection (EN 60529): IP41
Approval: VdS Class C
Dimensions (W x H x D): Indicator module: 112 x 92 x 31 mm Key module: 112 x 92 x 37 mm
