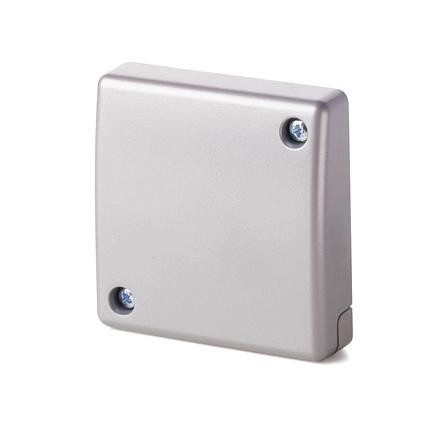

GM775LSNi Seismic detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54534-F114-A100
  • 4025515469711
Product information "GM775LSNi Seismic detector"
The GM775LSNi seismic detector is compatible with both types of local security network LSNi & LSN and has a loop connection to the control panel. The detector reliably detects attempted break-ins to safes, ATMs, night deposits, lightweight safes, strong rooms and modular steel or concrete vaults. Intelligent signal processing enables detection sensitivity to be set individually and therefore reliably ensures no false alarms. The anti-tamper system for the cover and on the back of the GM775LSNi will detect the opening or the forcible removal of the detector. Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high concentration of valuable assets or dangerous goods. All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that environmental disturbances are ignored, and false alarms eliminated.
Gross weight (KG) 0.238
Purchase unit PCE
EAN/UPC-Code: 4025515469711
Minimum order 1
Statistical code 85311030
Material code V54534-F114-A100
Net weight 0.200
Country of origin HU
ECCN EAR99
Dimensions (W x H x D): 89 x 89 x 22 mm
DIP switch settings: Modes selectable via LSNi/LSN control panels: - 8 fixed modes - 1 freely programmable user mode
Current consumption: 2.5 mA ~ 3.5 mA (5 mA on alarm)
Approval: VdS Class C, VSÖ, BSI
Power supply: max. 33 VDC
Weight: 0.285 kg
Operating temperature: -40°C to +70°C
Housing protection (EN 60529): IP43
