PDM-I18(50) PIR detector (50pcs)

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: L54543-F106-A100

Close menu

Product information "PDM-I18(50) PIR detector (50pcs)"

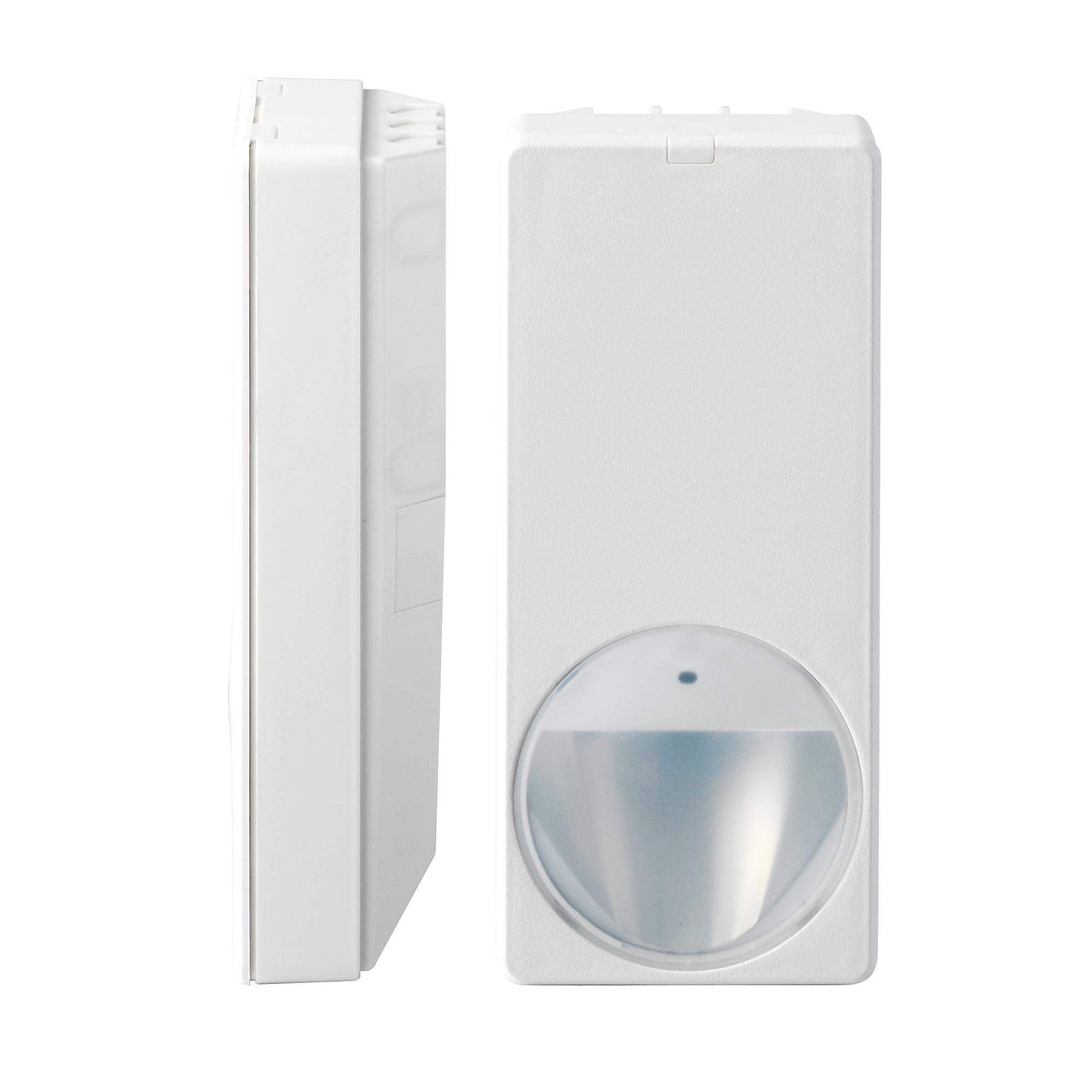

Product information "PDM-I18 PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I18 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).

Gross weight (KG)	0.1
Purchase unit
Minimum order	1
Statistical code	85311030
ECCN	EAR99
Country of origin	RO
Net weight	0.100
Material code	L54543-F106-A100

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Outputs:	30VDC / 100mA, NC
Weight:	0.115kg
Dimensions (W x H x D):	64 x 147 x 35 (mm)
Storage temperature:	-20° ~ +60°C
Operating temperature:	-10° ~ +55°C
Colour:	RAL9003
Sensitivity evaluation mode:	4 settings
Air humidity (EN 60721):	< 85% RH, non-condensing
Optical system:	MAGIC mirror
Detection characteristics / range:	Volumetric / 18 m
Supply voltage:	9 ~ 16VDC (12V nom.)
Approval:	EN50131-2-2 Grade 2 VdS Class B
Current consumption:	2.5mA (rms) 4.7mA (max. peak)
EOL resistor:	RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW
Pet immunity:	no
Set/unset input:	LOW ≤ 1.5V / HIGH ≥ 3.5V
Walk test input:	LOW ≤ 1.5V / HIGH ≥ 3.5V
Housing protection:	IP41 / IK02
Walking speed:	0.2 ~ 3m/s
