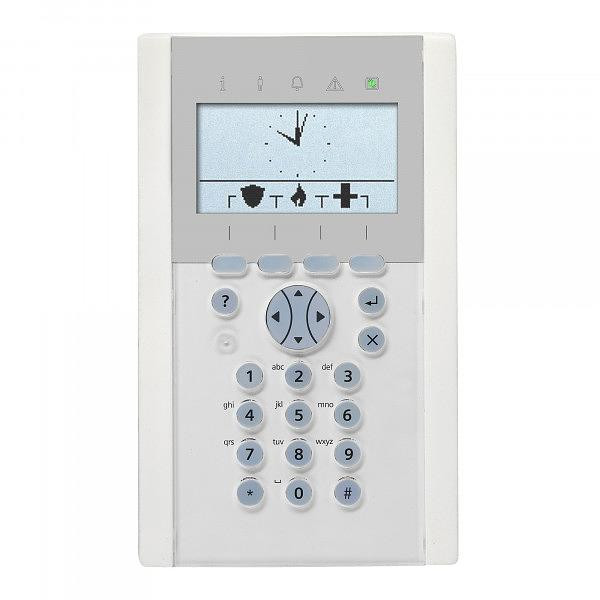

ATI5100 Intrusion arming terminal

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V24246-F2605-A1
  • 4025515474449
Product information "ATI5100 Intrusion arming terminal"
ATI5100 is a field terminal designed for use with SiPass integrated. It acts as a local interface between an advanced central controller (AC5100‚ AC5102 or AC5200) and authorised cardholders‚ enabling them to carry out tasks such as arming and disarming intrusion alarm areas.
Gross weight (KG) 0.555
Purchase unit PCE
EAN/UPC-Code: 4025515474449
Minimum order 1
Statistical code 84733020
ECCN 3A991
Material code V24246-F2605-A1
Net weight 0.527
Country of origin PH
Housing protection: IP30
Operating voltage: 9.5 – 14 VDC
Current consumption: Max. 155 mA at 12 VDC
Buzzer: Integrated Sound
Approval: CE- UL Pending
Dimensions (W x H x D): 112 x 185 x 28 mm
Housing: Polycarbonate
Display: LC: 128 x 64 dots Four lines with 16 characters per line
Interface: To controller: RS485
Tamper switch: Yes
Operating temperature: 5° ~ +40 °C
Weight: 0.38 kg
Colour: RAL 9003
Firmware: Flash upgradeable
Relative humidity: Max. 90 % (non-condensing)
