PSU 24V-5A-2x12V 17Ah

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her

Varenummer: PSU240517

Luk menu

Produkt information "PSU 24V-5A-2x12V 17Ah"

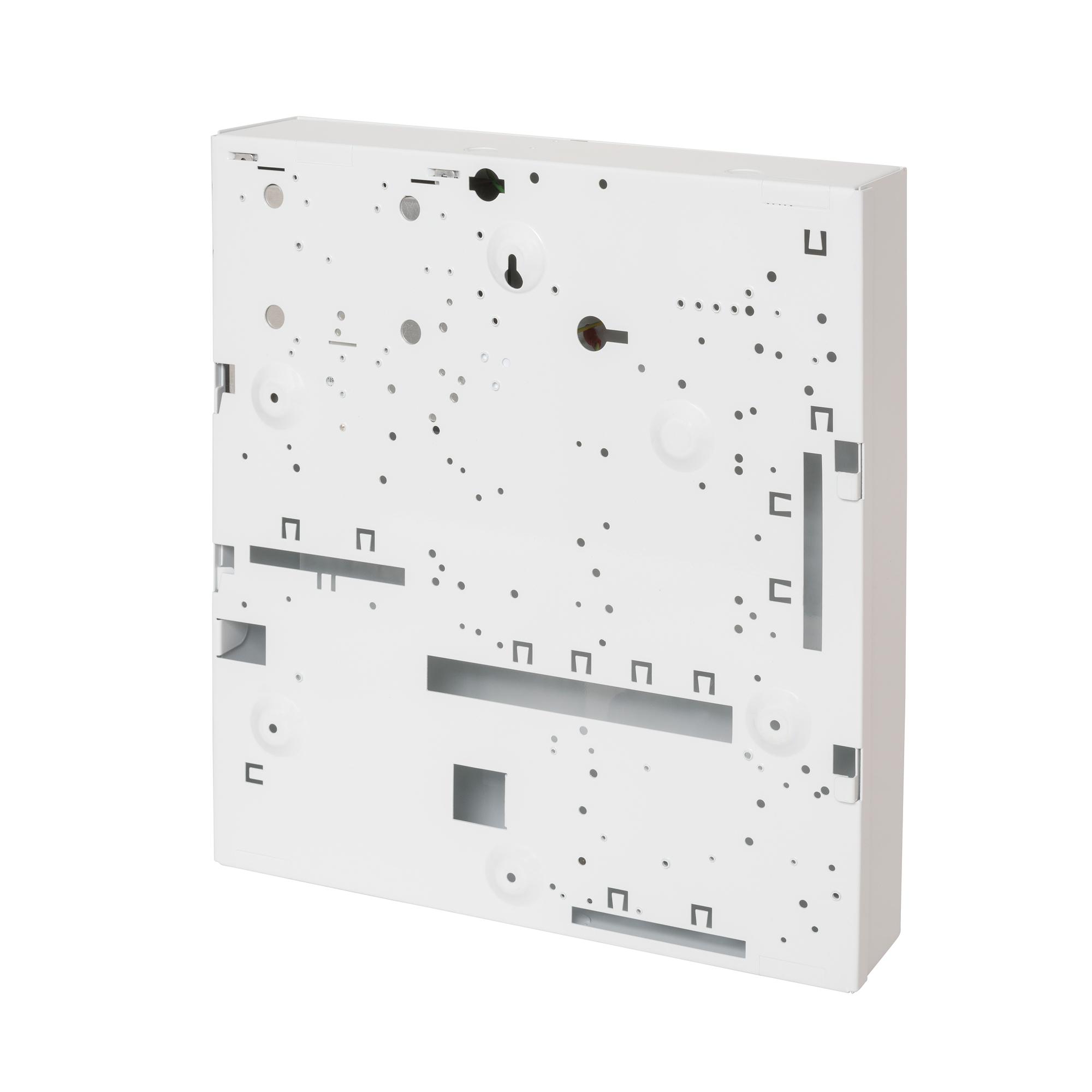

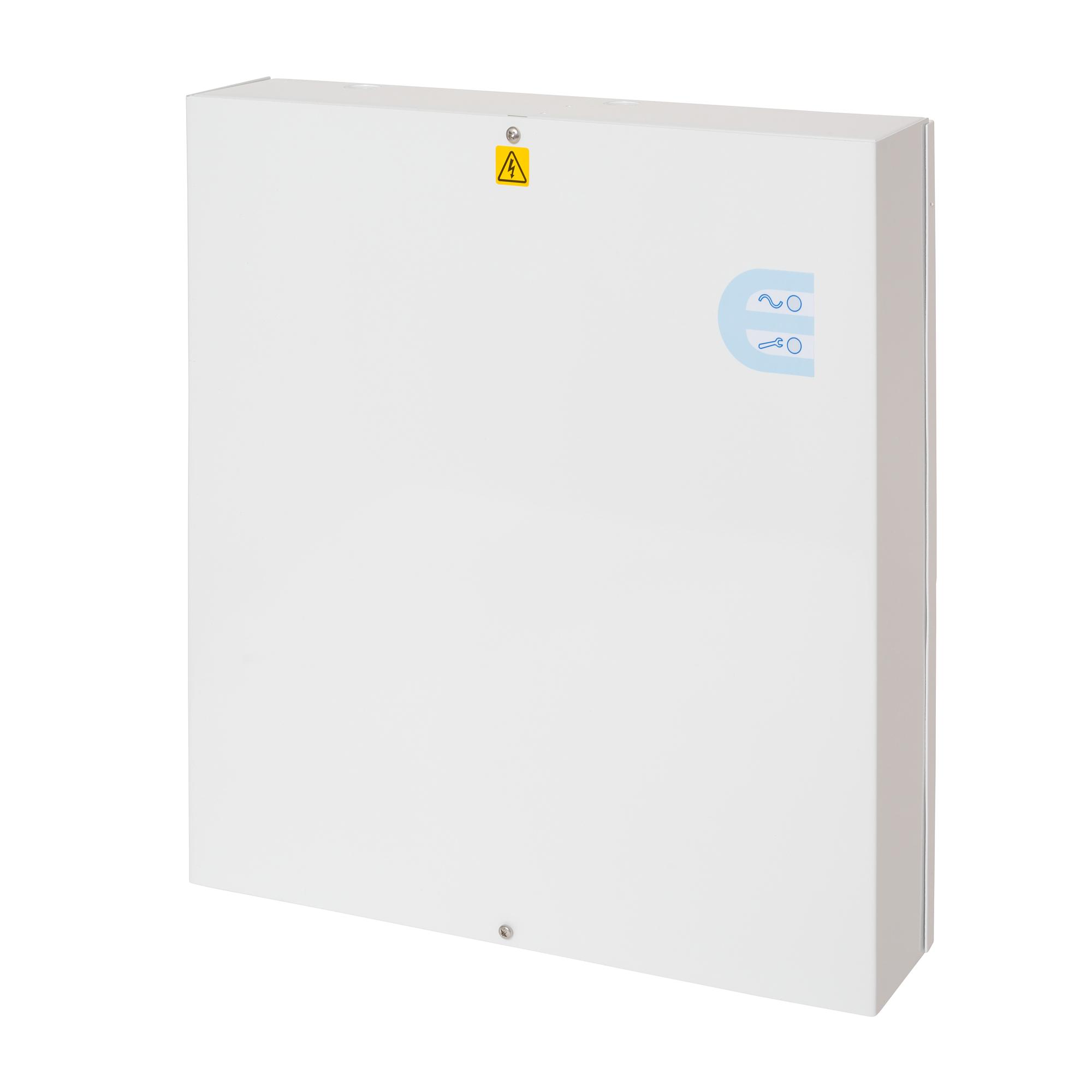

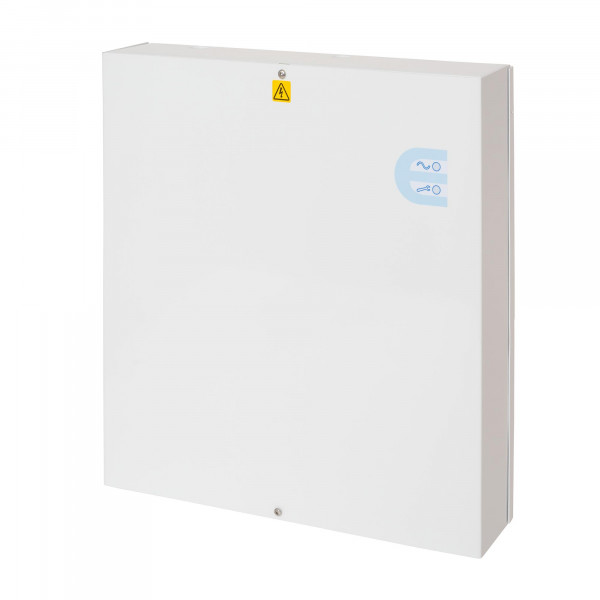

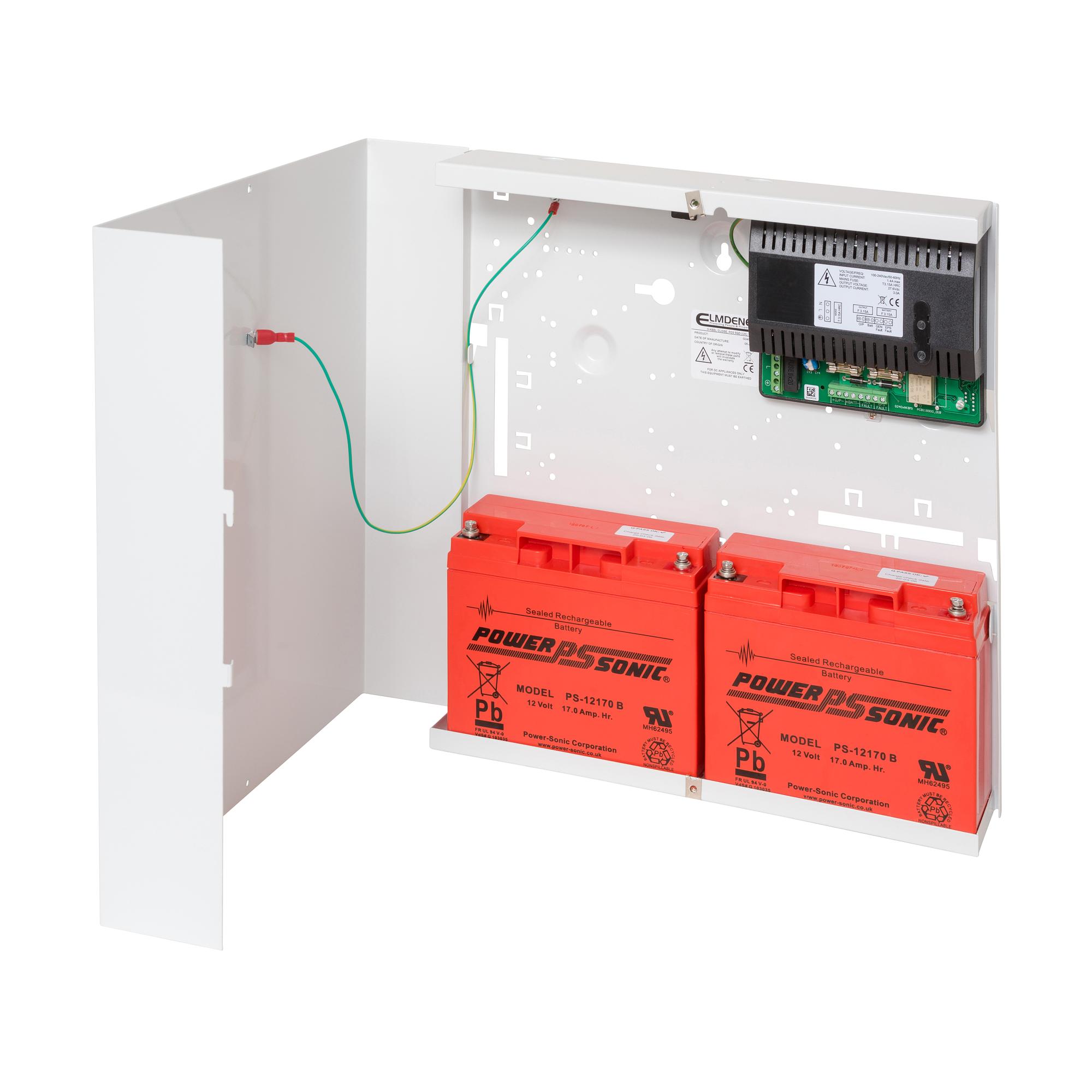

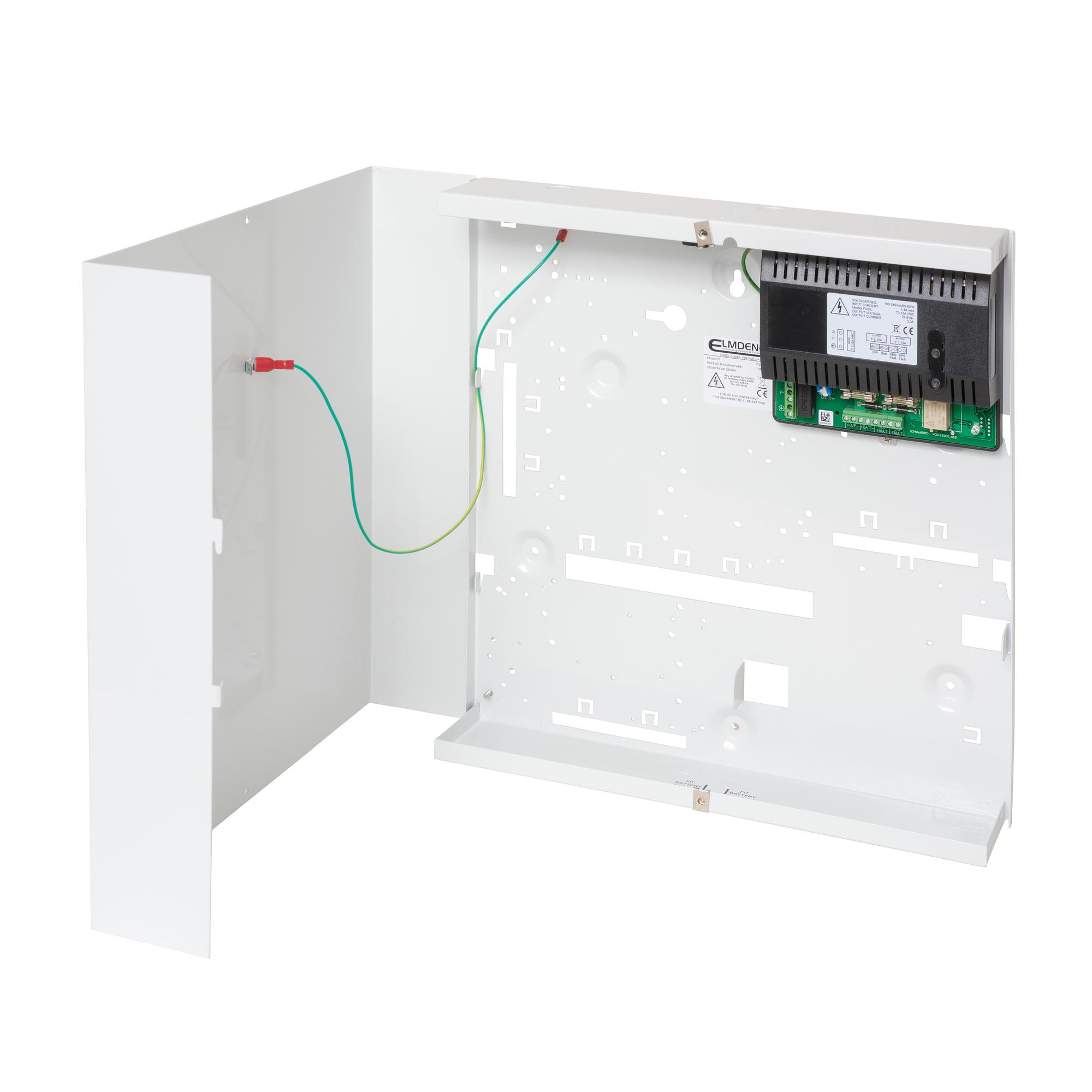

The PSU240517 is a self contained switch mode 24v 5.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection and space for 2x 17Ah sealed lead acid batteries. Housed in a mild steel enclosure with space for various interface cards.

Bruttovægt (KG)	6.9
Købs Enhed	PCE
mindste bestilling	1
Oprindelsesland	TW
Nettovægt	6.800
Materialekode	PSU240517
Statistisk kode	85044060
ECCN	EAR99

Dette link vil føre dig til vores ressource-side, som indeholder links til de mest gængse informationer omkring vores produkter, bland andet download centeret, hentning af brochurer, videoer, support og meget andet.

Luk menu

Storage temperature:	-20 to +80°C
Power supply:	Max standby Power : 0.8W (no load and no battery connected)
Output voltage:	27.0 – 28.0Vdc (27.6Vdc nominal) on mains power ; 21.0 – 24.7Vdc on battery standby
Output current:	5.0A - output fuse F5.0A
Operating temperature:	-10 to +40°C - 75% RH non-condensing
Input voltage:	100-240Vac / 90-264Vac (Both at 50 – 60Hz) - T3.15A fuse
Dimensions (W x H x D):	390 x 410 x 80mm
Current:	Max Mains Input : 2.0A
Battery:	Standby battery : 2 x 12V 17Ah valve regulated Lead Acid
Weight (without battery):	6.17kg
