PSU12121.007 (GEN2-08-C) 12V G2 PSU

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • N54545-Z163-A100
Produkt information "PSU12121.007 (GEN2-08-C) 12V G2 PSU"

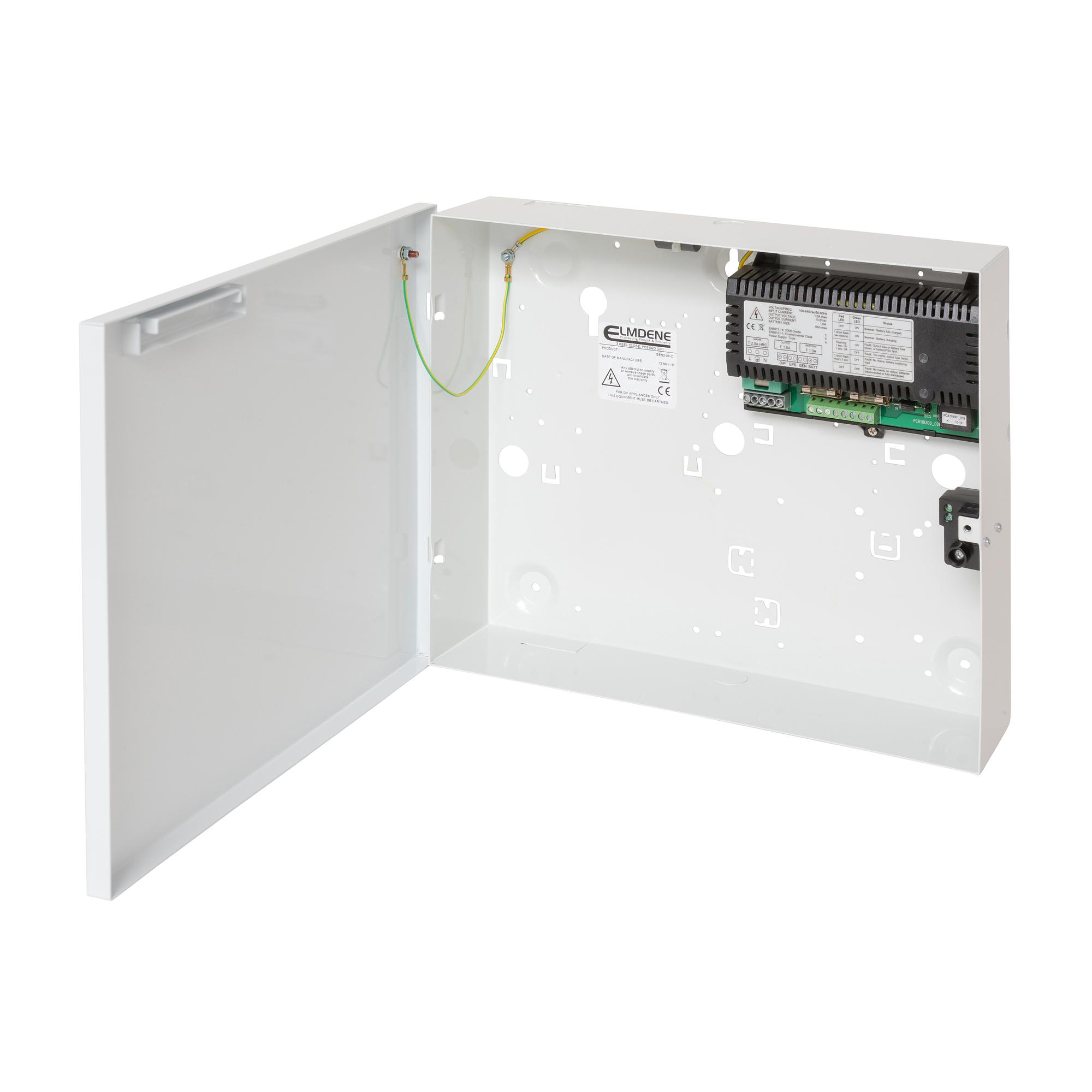

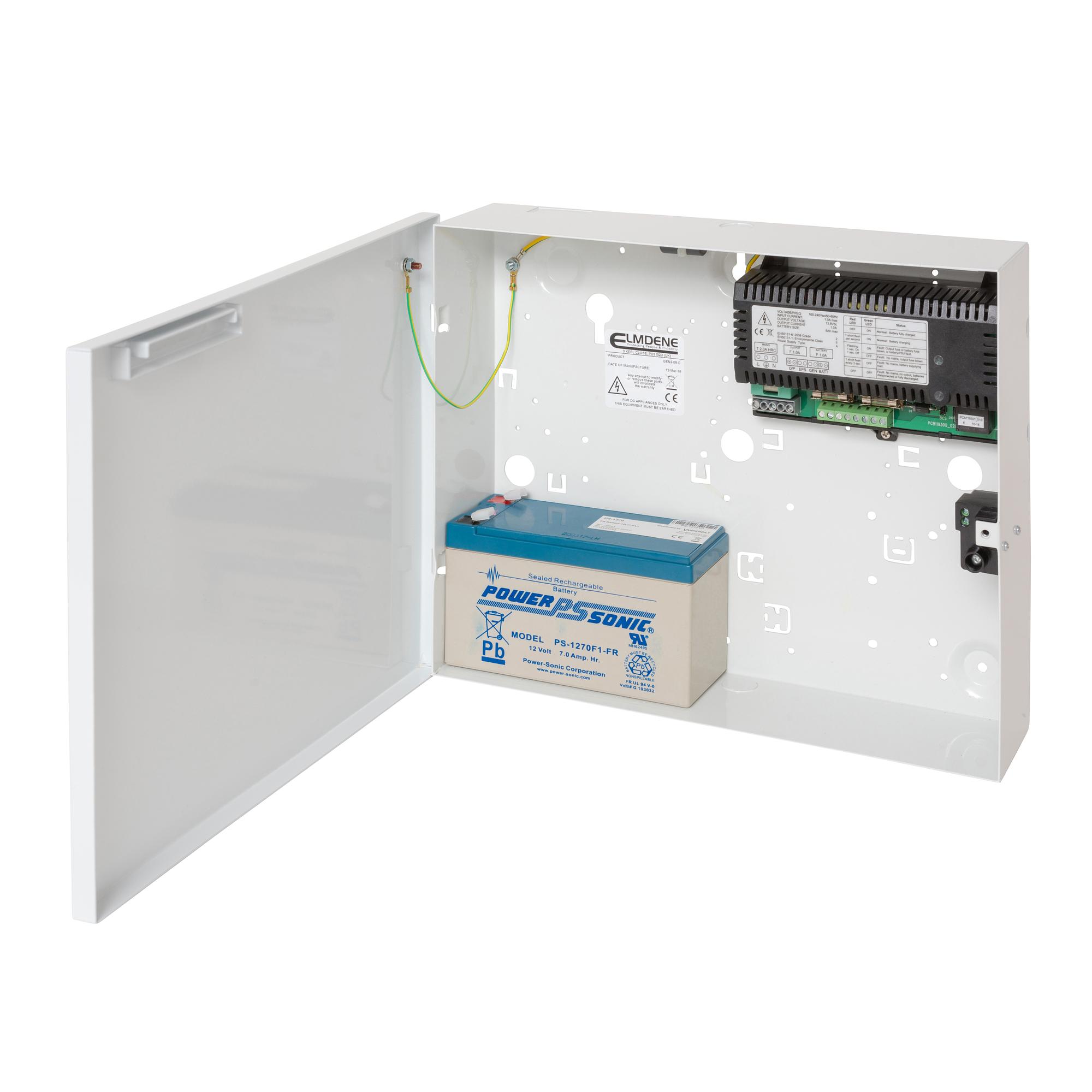

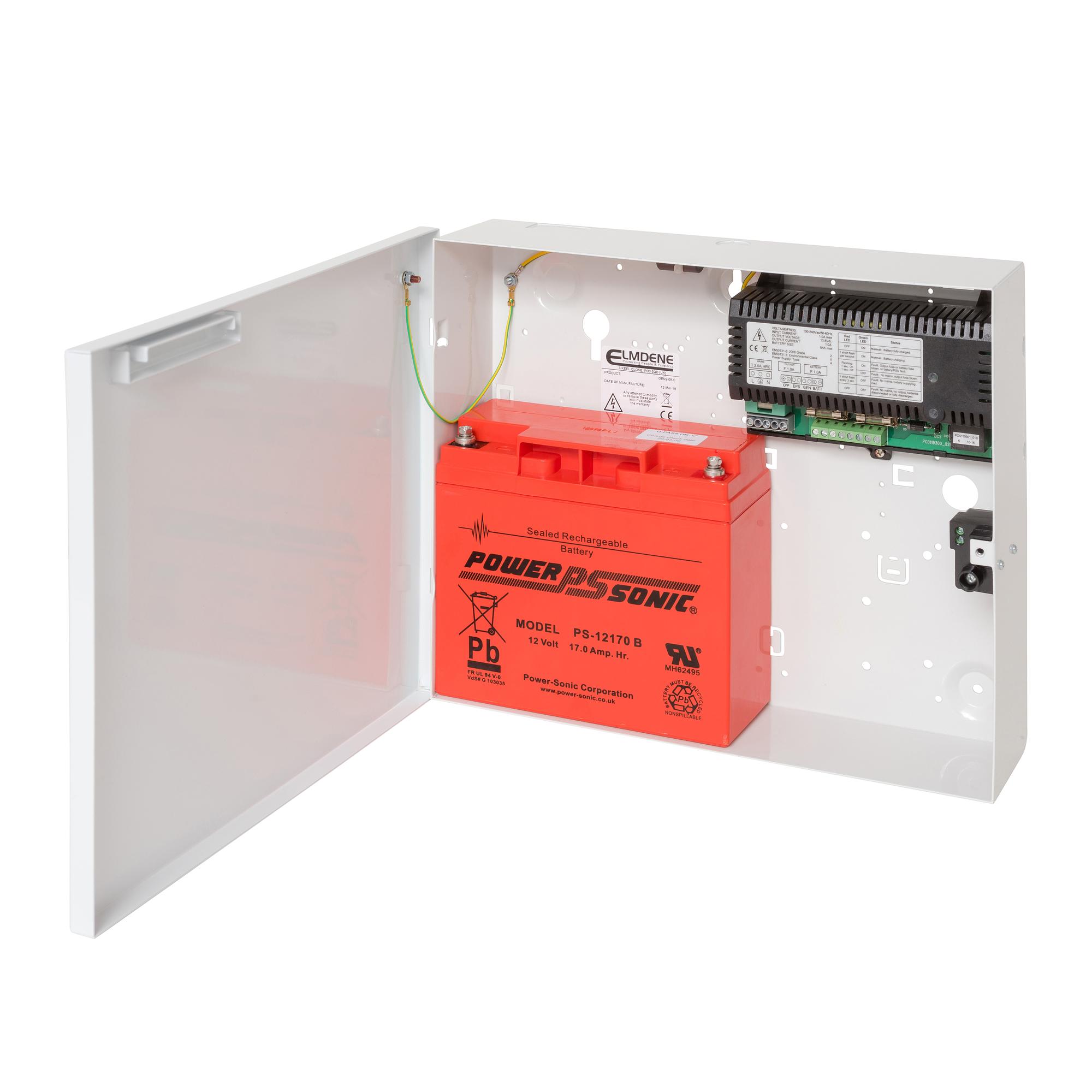

The PSU12121.007 is a self contained switch mode 12v 1.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, internal LED's for fault diagnosis, tamper protection and space for a 17Ah sealed lead acid battery. Note 7.0Ah must be used to maintain the certification. Housed in a mild steel enclosure with space for various interface cards. EN50131-6: 2008 certified.
Bruttovægt (KG) 3.56
Købs Enhed PCE
mindste bestilling 1
ECCN N
Materialekode N54545-Z163-A100
Statistisk kode 85044060
Oprindelsesland GB
Nettovægt 3.060
Storage temperature: -20°C ~ +80°C
Dimensions (W x H x D): 180 x 335 x 80 (mm)
Weight (without battery): 3.56Kg (Gross) / 3.06Kg (Nett)
Output voltage: 12v DC
LED Indicators: Internal
Battery: 1 x 12v 17Ah Max Capacity
Material: 1.2mm mild steel
Installation: Internal
Input voltage: 100-240vAC
Operating temperature: 10°C ~ +40°C, 75% RH
