SP100-Cotag Switch Plate Reading Head

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: VGBI:50-512
EAN/UPC-Code: 4025515473183

Close menu

Product information "SP100-Cotag Switch Plate Reading Head"

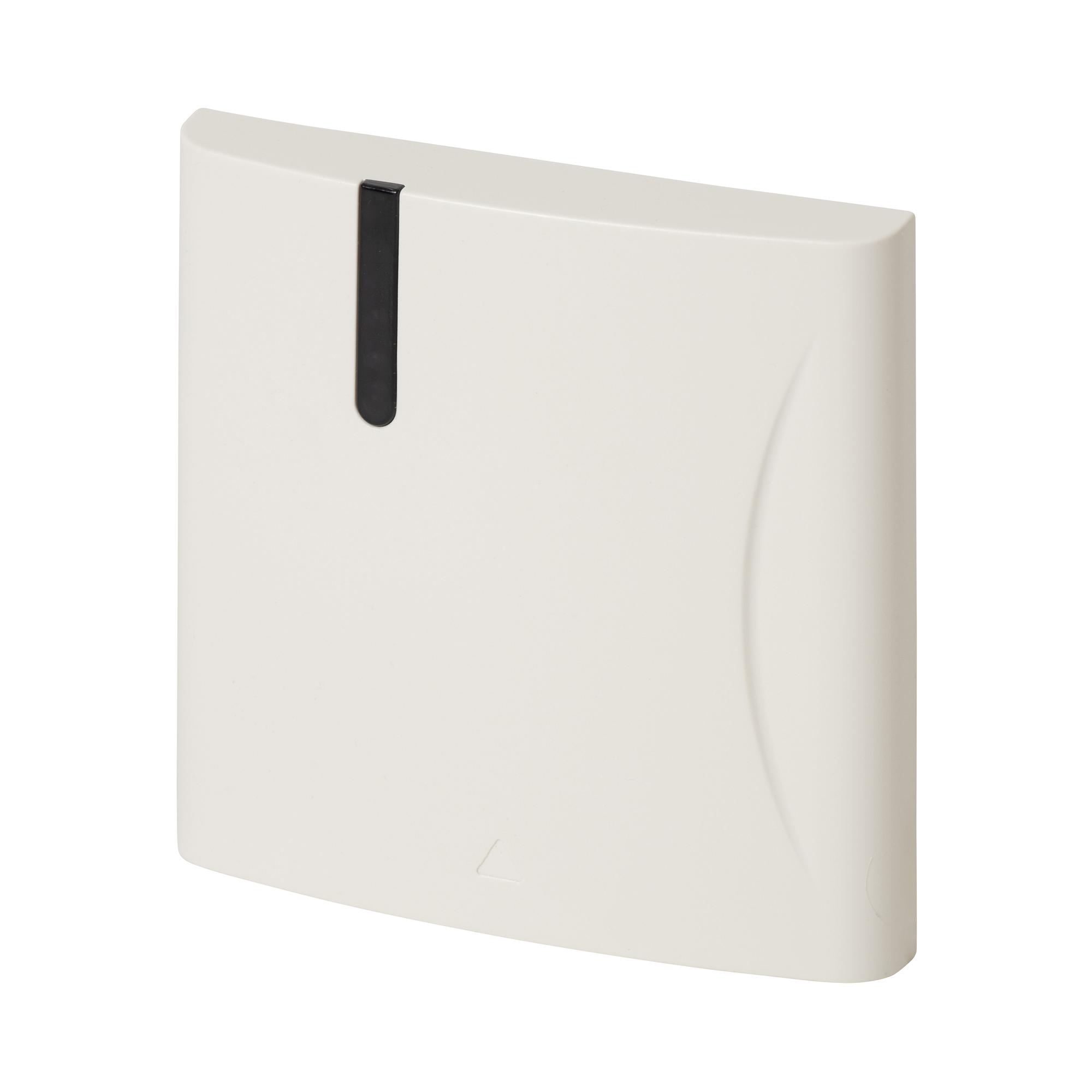

The SP100-Cotag is a switch-plate proximity reading head that is designed for mounting in a single-gang flush-mounted electrical backbox. It has a reading range of up to 30 cm.

Close menu

Certificate (CE) - Issued by Vanderbilt, on 04/11/2020

Gross weight (KG)	0.15
Purchase unit	PCE
EAN/UPC-Code:	4025515473183
Minimum order	1
Country of origin	SE
Material code	VGBI:50-512
Net weight	0.150
Statistical code	84733020
ECCN	EAR99

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Housing protection:	IP55
Dimensions (W x H x D):	86 x 86 x 14 mm
Card read distance:	Up to 29 cm with active card. Up to 9 cm with passive card.
Card compatibility:	0911‚ 0928-0‚ 0958-101‚ 0981‚ 0968-0
Interface to controller:	RF
Housing:	ABS base with clip on ABS front cover
Weight:	0.11 kg
Environment:	Indoor or outdoor use
Operating temperature:	-30 to +50 °C
Tamper switch:	No
Keypad:	No
Indicators:	3 x LED (red/yellow/green) 1 x Buzzer
Card technology:	Cotag
Approval:	CE
Colour:	White
