SPCK620.100-N Tastiera Comfort, Neutr.

Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
  • V54543-F110-B100
  • 7330082000319
Informazione prodotto "SPCK620.100-N Tastiera Comfort, Neutr."

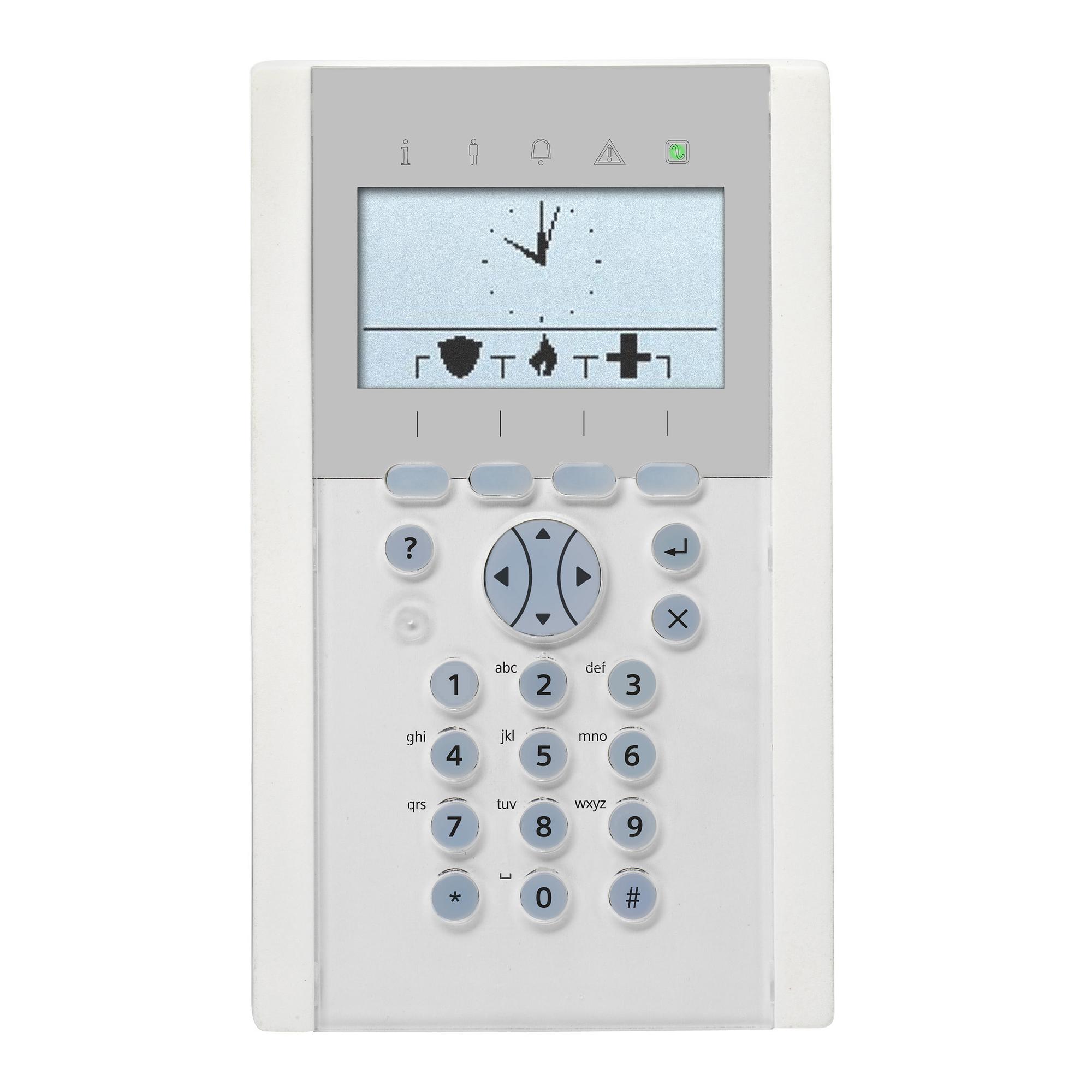

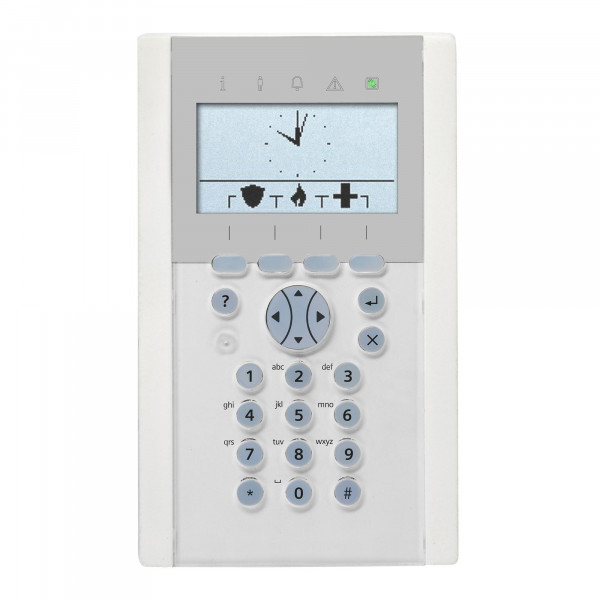

SPC LCD keypad with graphical display/card reader and audio Vanderbilt`s SPCK620/SPCK623 keypad provides a simple intuitive interface to the SPC system. Optimised for multi area systems the keypad provides a detailed overview of system status. Key Features include: Powerful menu structure The LCD display, soft keys, and multi-dimensional navigation key is ideal to operate large systems or single areas in a user friendly way. Cause and effect integration. Integrated Card reader (SPCK623 only) Can be used for authorization without code for ease of access or with code for higher security. Easy configuration Can be configured from the keypad or SPC Web interface. The comfort keypad is ideal to operate single and multi-area applications in a user friendly way. The soft keys and the multi-dimensional navigation key provide an easy to use system with minimum operational steps. Customer logo, emergency or quick set functions can be displayed in idle state.
Peso lordo(KG) 0.55
Unità di acquisto PCE
EAN/UPC-Code: 7330082000319
Ordine minimo 1
ECCN N
Peso netto 0.390
Codice materiale V54543-F110-B100
Codice statistico 85311030
Paese d'origine PH
Corrente di lavoro: Max. 155 mA at 12 V DC (backlight, LEDs, sounder operated)
Contatto tamper: Front/back spring tamper
Tensione di lavoro: 9.5 ~ 14 V DC
Display: 128 x 64 pixels (approx. 6 x 20 characters)
Peso: 0.380 kg
Indicatori LED: 5 LED di stato
Colore: RAL 9003 (bianco segnale)
Temperatura di lavoro: 5° ~ +40 °C
Interfaccia: X-BUS (in, out)
Corrente di riposo: SPCK620 - Max. 55 mA at 12 V DC SPCK623 - Max. 110 mA at 12 V DC
