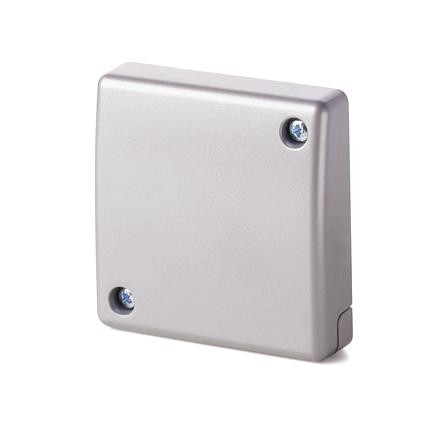

GM710 Rilevatore sismico
Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
- Numero Ordine: V54534-F106-A100
- EAN/UPC-Code: 4025515469629
Descrizione
Certificates
Importazioni ed esportazioni
Risorse
Dati tecnici
Documentazione
link utili
Informazione prodotto "GM710 Rilevatore sismico"
The GM710 seismic detector is specifically designed for cost-sensitive applications on steel and reliably detects break-in attempts
with mechanical and thermal attack tools. Intelligent signal processing enables the level of detection sensitivity to be
custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector,
and the anti-tamper on the back of the detector will detect forcible removal.
Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our
products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high
concentration of valuable assets or dangerous goods.
All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and
amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that
environmental disturbances are ignored, and false alarms eliminated.
- Certificate (CE) - Issued by Vanderbilt, on 16/09/2017
- Certificate - Issued by CCC, on 14/09/2021
- Certificate - Issued by INCERT, on 14/05/2019
- Certificate (Other Legal) - Issued by UL, on 28/07/2016
- Certificate (Other) - Issued by CCC
- Certificate (CE) - Issued by Vanderbilt, on 01/07/2022
- Certificate - Issued by CSP, on 10/10/2022
- Certificate - Issued by Vanderbilt, on 27/07/2022
Dimensions (W x H x D): | 89 x 89 x 22 mm |
Consumo corrente: | 2.5 mA (rms) 3.5 mA (max. peak) |
Impostazione DIP switch: | 4 levels fixed |
Certificazione: | UL, CCC, RCM, PD6662 |
Peso: | 0.285 kg |
Uscita allarme relè: | Opens on alarm, 30 VDC / 100 mA |
Alimentazione: | 8 - 16 VDC (12 V nominale) |
Protezione Custodia (EN 60529): | IP43 |
Temperatura di lavoro: | -40°C ~ +70°C |
- Datasheet - (Swedish) - gm710
- Datasheet - (English) - gm710
- Datasheet - (German) - gm710
- Datasheet - (Spanish) - gm710
- Datasheet - (French) - gm710
- Datasheet - (Italian) - gm710
- Datasheet - (Dutch) - gm710
- Installation Manual - (Multilingual) - gm710
- Product Support Guide - (English) - Seismic Detectors Application Guide
- Product Support Guide - (English) - Vanderbilt Seismic Support guide
- Application Note - (English) - GM730 an SPC VDS
- Application Note - (English) - GM775 an SPC VDS
