SPC5350.320-L1 Antintrusione CP, G5
Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
- Numero Ordine: V54541-C117-A100
- EAN/UPC-Code: 4025515470809
Informazione prodotto "SPC5350.320-L1 Antintrusione CP, G5"

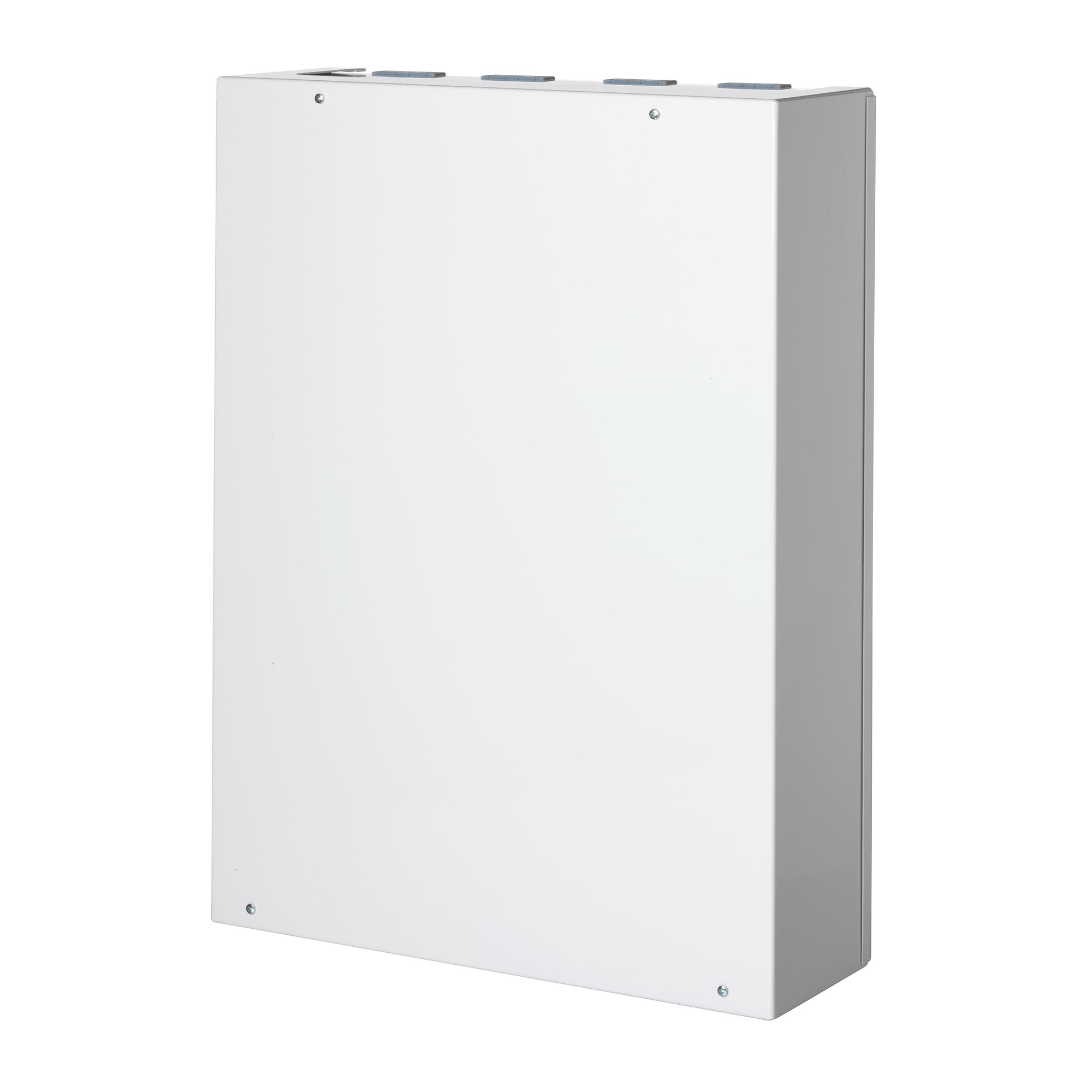

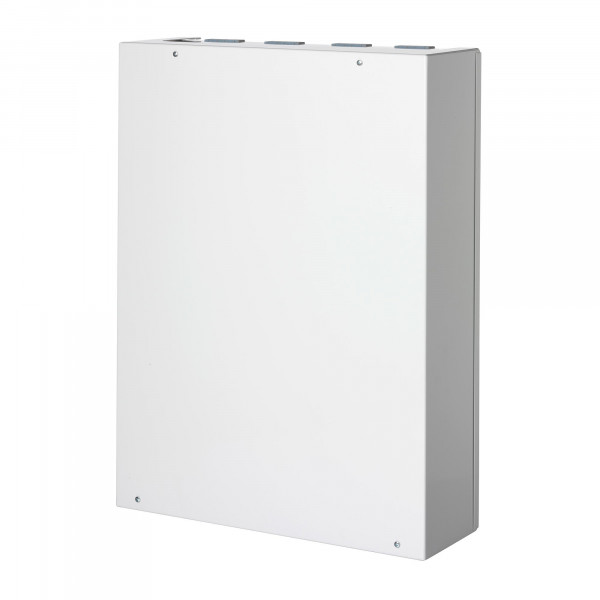

La centrale acre Intrusion5350.320 combina in modo ottimizzato protezione dalle
intrusioni e controllo accessi. In base alle
esigenze del cliente e del
progetto, la centrale può essere configurata per gestire sino a 128 zone
(di cui 16 a bordo), 128
uscite (di cui 12 a bordo), 16 tastiere di
sistema, 16 porte e 8 zone di verifica. La scheda di controllo supporta
2 porte X-BUS
(2 linee bus o 1 anello), 16 aree, 500 utenti con livelli
di accesso differenziati, memoria per 10.000 eventi intrusione e 10.000
eventi di controllo accessi, web server integrato, 2 terminazioni per
innestare i moduli opzionali PSTN e GSM/GPRS, interfaccia
Ethernet a
bordo. Il sistema è espandibile con moduli radio e supporta sino a
rivelatori (prendono il posto delle cablate). La
centrale è fornita in
un contenitore metallico con protezione anti-tamper e capace di
contenere 2 batterie 27 Ah e 4 espansioni
aggiuntive.
- Certificate (CE) - Issued by Vanderbilt, on 03/11/2020
- Certificate - Issued by CNPP, on 23/11/2021
- Certificate - Issued by SBSC, on 16/10/2017
- Certificate - Issued by SBSC, on 16/10/2017
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 28/05/2021
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 28/05/2021
- Certificate - Issued by VSÖ, on 28/05/2021
- Certificate (EN 50131) - Issued by BRE Global / LPCB, on 26/04/2010
- Certificate (MSDS) - Issued by Supplier, on 10/01/2020
- Certificate (UN38.3) - Issued by Supplier, on 19/12/2019
- Certificate - Issued by CNPP, on 02/11/2022
- Certificate - Issued by SBSC, on 01/01/2023
- Certificate - Issued by VdS, on 07/11/2019
- Certificate - Issued by VdS, on 23/11/2022
- Certificate - Issued by VdS, on 01/12/2022
- Certificate - Issued by VSÖ, on 24/04/2023
Uscite relè: | 4 (contatto singolo in scambio, 30 V CC / max. 1 A con carico resistivo) |
Telecomando: | Fino a 50 |
Numero massimo d'ingressi cablati: | 128 |
Capacità Porte: | Max. 16 porte solo ingresso o 16 porte con ingresso e uscita |
Verifica: | 8 zone di verifica con sino a 4 telecamere IP e 8 dispositivi audio |
Video: | Sino a 16+16 immagini pre- e post-evento (risoluzione JPEG 320 x 240, max. 1 frame/sec) |
Custodia: | Contenitore metallico (acciao dolce 1,5 mm) |
Linguaggio: | Supporto multi-lingua (inglese "en" + 4 file di lingua importati) de, en, es, fr, it, nl, sv, 1 file di lingua importato) |
Numero di zone a bordo: | 16 |
Corrente di lavoro: | Max. 415 mA a 12 VCC (tutti i relè attivi) |
Tensione di Uscita: | 13-14 VCC in condizioni normali (alimentazione principale presente e batteria completamente carica) |
Corrente di riposo: | Max. 350mA a 12 VCC |
Peso: | 18,600 Kg (contenitore con copertura), 11,500 Kg (contenitore senza copertura) |
Potenza di uscita: | Max. 2,2 A bei 12 V DC (8 separate mit 300 mA abgesicherte Ausgänge, kombinierbar) |
Certificazione: | DE: VdS G112124, Klasse C AT: W 130923/09 E, Klasse WS In Zertifizierungsverfahren nach SES EN CH Grad 3 FFIS A 11001 A - 1 bis Kat. 2 Ablauf der FFIS Genehmigung per 31.12.2014 |
Interruttore tamper: | Front och bortbrytning samt en extra ingång för extern sabotage |
Custodia: | Contenitore in metallo (acciaio dolce 1,5 mm ) |
Numero massimo di zone radio: | 64 (a riduzione del totale delle zone cablate) |
Dimensions (W x H x D): | 498 x 664 x 157 mm |
Resistenza EOL: | Doppio 4k7 (default), altre combinazioni di resistenze configurabili |
Temperatura di lavoro: | 0 ~ +40 °C |
Alimentazioni Principali: | 230 VAC, + 10%/ -15%, 50 Hz |
Interfaccia: | X-BUS (2 linee o 1 loop), 2 RS232 (per X-10 o comunicazione esterna), 1 USB (Connessione PC), 1 SPC Programmatore veloce, 1 Ethernet (RJ45) |
Colore: | RAL 9003 (signal white) |
Firmware: | V3.4 (o successiva) |
Memoria eventi: | 10.000 eventi intrusione, 10.000 eventi accessi |
Audio: | Up to 60 sec. pre / 60 sec. post audio recording |
Peso (senza batteria): | 18.600 kg (housing incl. cover) 11.500 kg (housing without cover) |
