SPC5320.320-L1 Antintrusione CP,G2
Se sei un cliente de Vanderbilt, effettua il login per vedere i prezzi.
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
Non sei un cliente Vanderbilt? Nessun problema, puoi registrarti qui.
Hai bisogno di un installatore di prodotti Vanderbilt? Clicca qui
- Numero Ordine: V54541-C106-B100
- EAN/UPC-Code: 4025515470731
Descrizione
Certificates
Importazioni ed esportazioni
Risorse
Dati tecnici
Documentazione
Software
link utili
Informazione prodotto "SPC5320.320-L1 Antintrusione CP,G2"
La centrale acre Intrusion5320.320-L1 combina in modo ottimizzato protezione dalle
intrusioni e controllo accessi.
In base alle
esigenze del cliente e del progetto, la centrale può essere
configurata per gestire sino a 128 zone (di cui 8 a bordo), 128 uscite
(di cui 6 a bordo), 16 tastiere di sistema, 16 porte e 8 zone di
verifica.
La scheda di controllo supporta 2 porte X-BUS (2
linee bus o 1 anello),
16 aree, 256 utenti con livelli di accesso differenziati, memoria per
10.000 eventi intrusione e 10.000
eventi di controllo accessi, Web
Server integrato, 2 terminazioni per innestare i moduli opzionali PSTN e
GSM, interfaccia
Ethernet a bordo.
Il sistema è espandibile con moduli radio e supporta sino a 64
rivelatori (prendono il posto delle cablate) e 1
telecomando per utente.

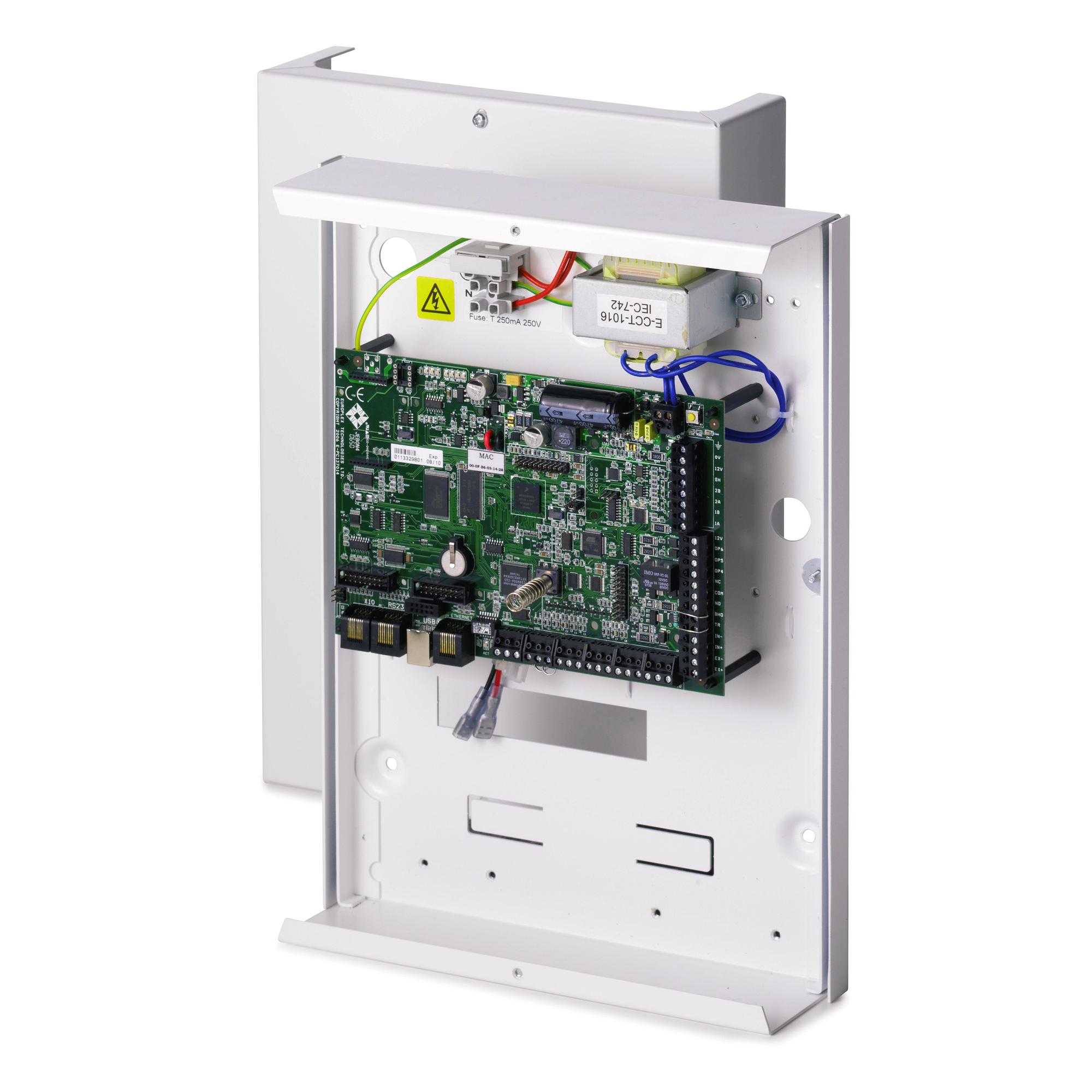

La centrale è fornita in un contenitore metallico con protezione
anti-tamper e capace di contenere una
batteria opzionale da 7 Ah e 1
espansione aggiuntiva.
- Certificate (CE) - Issued by Vanderbilt, on 07/09/2020
- Certificate - Issued by CNPP, on 23/11/2021
- Certificate - Issued by IMQ, on 04/02/2015
- Certificate - Issued by Telefication, on 18/12/2020
- Certificate - Issued by INCERT, on 14/12/2020
- Certificate - Issued by SBSC, on 29/09/2021
- Certificate - Issued by SBSC, on 29/09/2021
- Certificate - Issued by SBSC, on 26/10/2020
- Certificate - Issued by SBSC, on 26/10/2020
- Certificate - Issued by SBSC, on 17/12/2019
- Certificate - Issued by SBSC, on 17/12/2019
- Certificate - Issued by VdS, on 29/11/2019
- Certificate - Issued by KVALITET, on 06/05/2019
- Certificate (PD6662) - Issued by Vanderbilt, on 29/03/2019
- Certificate (PD6662) - Issued by Vanderbilt, on 25/02/2022
- Certificate (MSDS) - Issued by Supplier, on 10/01/2020
- Certificate (UN38.3) - Issued by Supplier, on 19/12/2019
- Certificate - Issued by CNPP, on 02/11/2022
- Certificate - Issued by SBSC, on 20/02/2023
- Certificate - Issued by SBSC, on 20/02/2023
Verifica: | 8 zone di verifica con sino a 4 telecamere IP e 8 dispositivi audio |
Corrente di lavoro: | Max. 190 mA at 12 VDC |
Corrente di riposo: | Max. 170 mA a 12 VCC |
Tensione di Uscita: | 13-14 VCC in condizioni normali (alimentazione principale presente e batteria completamente carica) |
Temperatura di lavoro: | 0 ~ +40 °C |
Potenza di uscita: | Max. 750 mA bei 12 VDC |
Telecomando: | Fino a 50 |
Numero massimo d'ingressi cablati: | 128 |
Capacità Porte: | Max. 16 porte solo ingresso o 16 porte con ingresso e uscita |
Video: | Sino a 16+16 immagini pre- e post-evento (risoluzione JPEG 320 x 240, max. 1 frame/sec) |
Interfaccia: | X-BUS (2 linee o 1 loop), 2 RS232 (per X-10 o comunicazione esterna), 1 USB (Connessione PC), 1 SPC Programmatore veloce, 1 Ethernet (RJ45) |
Contatto tamper: | Tamper frontale a scatto, 2 ingressi per contatti tamper ausiliari |
Peso: | 4,500 Kg |
Custodia: | Contenitore in metallo piccolo (acciaio dolce 1,2 mm ) |
Certificazione: | EN50131-1 / EN50131-3 / EN50131-6, Grado 2, Classe II UK: PD6662:2010 |
Comunicazione IP: | Si |
Linguaggio: | Supporto multi-lingua (de, en, es, fr, it, nl, sv, vls, 1 file di lingua importato) |
Numero massimo di zone radio: | 64 (a riduzione del totale delle zone cablate) |
Firmware: | 3.8.5 |
Alimentazioni Principali: | 230 VAC, + 10%/ -15%, 50 Hz |
Audio: | Up to 60 sec. pre / 60 sec. post audio recording |
Numero di uscite a bordo a relè: | 1 lampeggiante (30 VCC / 1 A con carico resistivo) |
Colore: | RAL 9003 (signal white) |
Memoria eventi: | 10.000 eventi intrusione, 10.000 eventi accessi |
Numero di zone a bordo: | 8 |
Resistenza EOL: | Dual 4K7 (default), other resistor combinations selectable |
Dimensions (W x H x D): | 264 x 357 x 81 (mm) |
