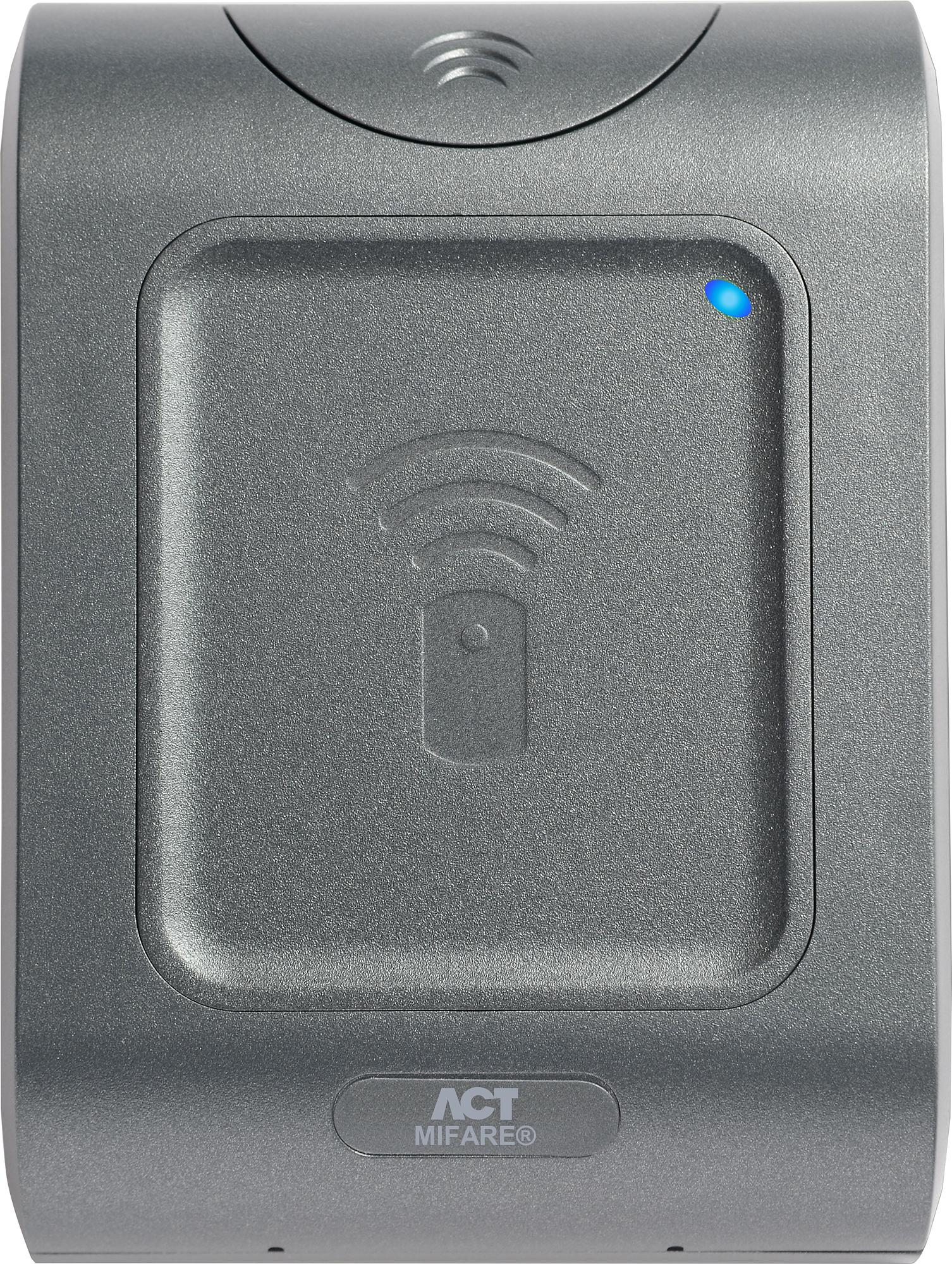

MF1040e ACTpro MIFARE Kartenleser

Preview: MF1040e ACTpro MIFARE Kartenleser Preview: MF1040e ACTpro MIFARE Kartenleser
MF1040e ACTpro MIFARE Kartenleser
MF1040e ACTpro MIFARE Kartenleser

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F119-A100
  • EAN/UPC-Code: 7330082004461
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MF1040e ACTpro MIFARE Kartenleser"
MIFARE card technology is widely used for access control, cashless vending, smart printing/copying, transportation and stadium ticketing, etc. ACT MIFARE readers can read ACT MIFARE cards/fobs and the serial number from any MIFARE Classic card/fob or data from any sector (read key required).
Certificates
Close menu
Import & Export
Gross weight (KG) 0.27
Purchase unit PCE
EAN/UPC-Code: 7330082004461
Minimum order 1
Statistical code 84719000
Material code V54504-F119-A100
ECCN EAR99
Net weight 0.250
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (L x W x H): 95 x 128 x 19 (mm)
Impact rating: IK08
Mounting: Surface/Flush
Connectors: Connector Block
Outputs: Selectable Clock & Data or Wiegand Output
Installation: Indoor & Outdoor
Compatibility: MIFARE ISO 14443A Compatible
Operating voltage: 12 - 24 Volt DC
Operating temperature: -40°C to +70°C
Keypad: No
Housing protection: IP67
Weight: 0.142 kg
Documentation
Close menu
