Article number: VGBI:50-510
EAN/UPC-Code: 4025515473770

Close menu

Product information "HD100-2 Heavy Duty Reading Head"

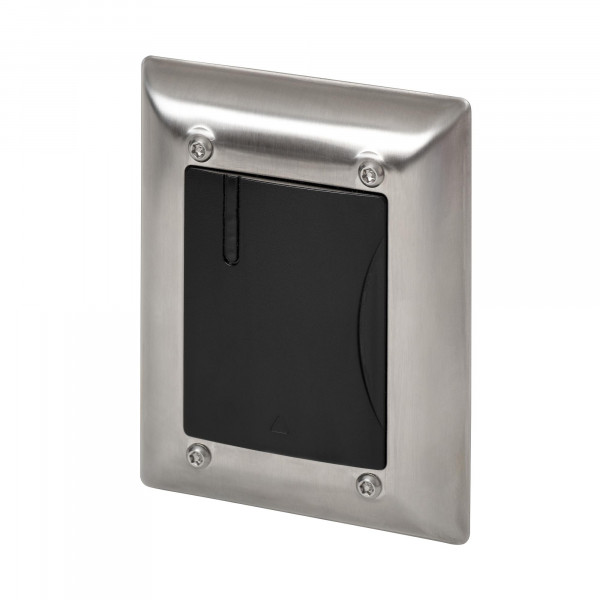

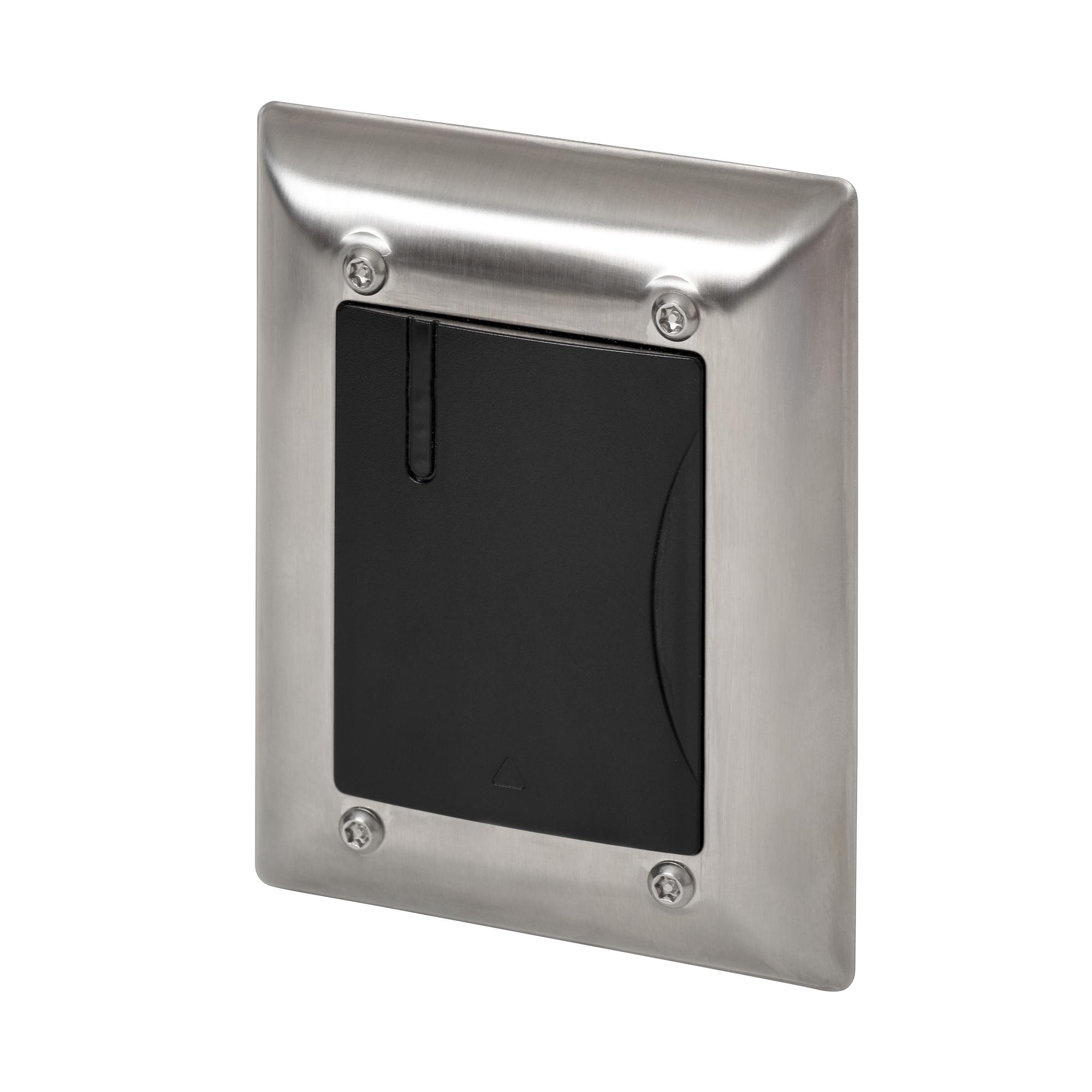

The HD100-2 is a heavy-duty proximity reading head that is ideal for locations that are vulnerable to physical attack. It is impact and fire resistant and has a reading range of up to 30 cm.

Close menu

Certificate (CE) - Issued by Vanderbilt, on 04/11/2020

Gross weight (KG)	0.31
Purchase unit	PCE
EAN/UPC-Code:	4025515473770
Minimum order	1
Statistical code	84733020
ECCN	EAR99
Material code	VGBI:50-510
Net weight	0.295
Country of origin	PH

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Approval:	CE
Operating temperature:	-30 ~ +50 °C
Card read distance:	Up to 32 cm with active card. Up to 11 cm with passive card.
Card compatibility:	0911‚ 0928-0‚ 0958-101‚ 0981‚ 0968-0
Interface to controller:	RF
Housing:	ABS base with clip on ABS front cover
Weight:	0.11 kg
Colour:	Black and stainless steel
Environment:	Indoor or outdoor use
Tamper switch:	No
Keypad:	No
Indicators:	3 x LED (red/yellow/green) 1 x Buzzer
Card technology:	Cotag
Housing protection:	IP55
Dimensions (W x H x D):	128 x 100 x 18 (mm)
