PDM-I18(50) PIR detector (50pcs)

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • L54543-F106-A100
Tuotetiedot "PDM-I18(50) PIR detector (50pcs)"

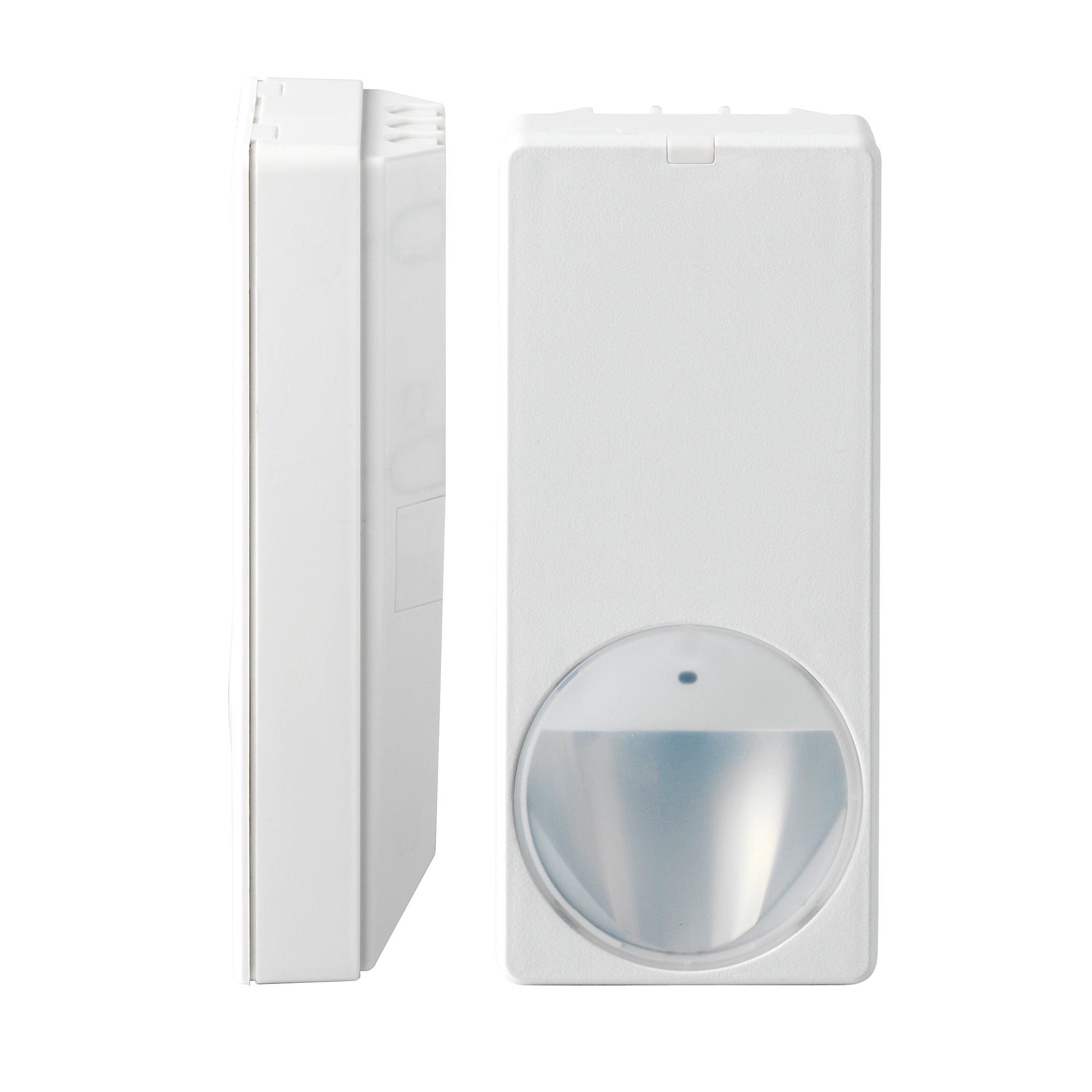

Product information "PDM-I18 PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I18 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.1
Osta yksikkö
Mindestabnahme 1
Statistical code 85311030
Country of origin RO
Net weight 0.100
Material code L54543-F106-A100
Outputs: 30VDC / 100mA, NC
Weight: 0.115kg
Dimensions (W x H x D): 64 x 147 x 35 (mm)
Storage temperature: -20° ~ +60°C
Operating temperature: -10° ~ +55°C
Colour: RAL9003
Sensitivity evaluation mode: 4 settings
Air humidity (EN 60721): < 85% RH, non-condensing
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 18 m
Supply voltage: 9 ~ 16VDC (12V nom.)
Approval: EN50131-2-2 Grade 2 VdS Class B
Current consumption: 2.5mA (rms) 4.7mA (max. peak)
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW
Pet immunity: no
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Housing protection: IP41 / IK02
Walking speed: 0.2 ~ 3m/s
