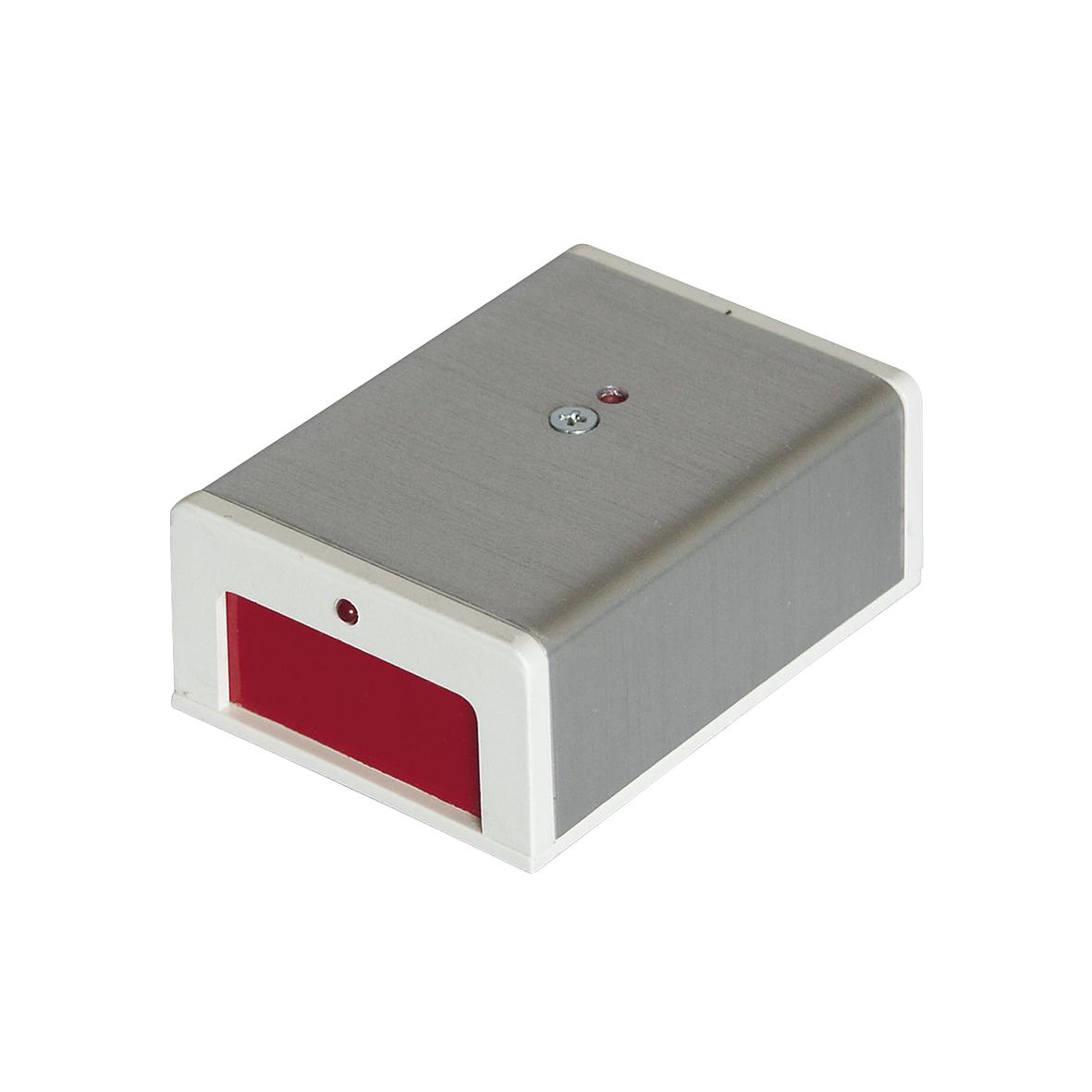

484 Panic button, optical indicator

Wenn Sie Kunde von Vanderbilt sind, melden Sie bitte sich an, um Preise zu sehen.
Sie sind kein Vanderbilt-Kunde? Kein Problem, hier können Sie sich registrieren.
Suchen Sie einen Errichter für Vanderbilt-Produkte? Dann klicken Sie hier
  • N54543-Z104-A100
  • 4025515477808
Tuotetiedot "484 Panic button, optical indicator"
Reed button designed for the silent signaling of robberies in action. By pushing the button, a magnet gets close to the internal reed and opens the contact, thus triggering the alarm. Self-protection against opening through internal reed. Internal reeds are designed for NC operation. Simplified installation thanks to the two-sided tape included. LED memory with central reset (by cutting power supply), button with spring return, 6-terminal connection: 2 for contact, 2 for ant-tampering, 2 for power supply
Gross weight (KG) 0.073
Osta yksikkö PCE
EAN/UPC-Code: 4025515477808
Mindestabnahme 1
ECCN N
Material code N54543-Z104-A100
Statistical code 85319000
Net weight 0.069
Country of origin IT
Operating temperature: +5 ~ +40° C
Housing protection: IP32
Housing material: Thermoplastic
Contact rating: Max. 1 A / 75 V
Current consumption: 10 mA
Weight: 0.070 kg
Power supply: 12 VDC
Colour: White
Dimensions (L x W x H): 72 x 52 x 28 (mm)
