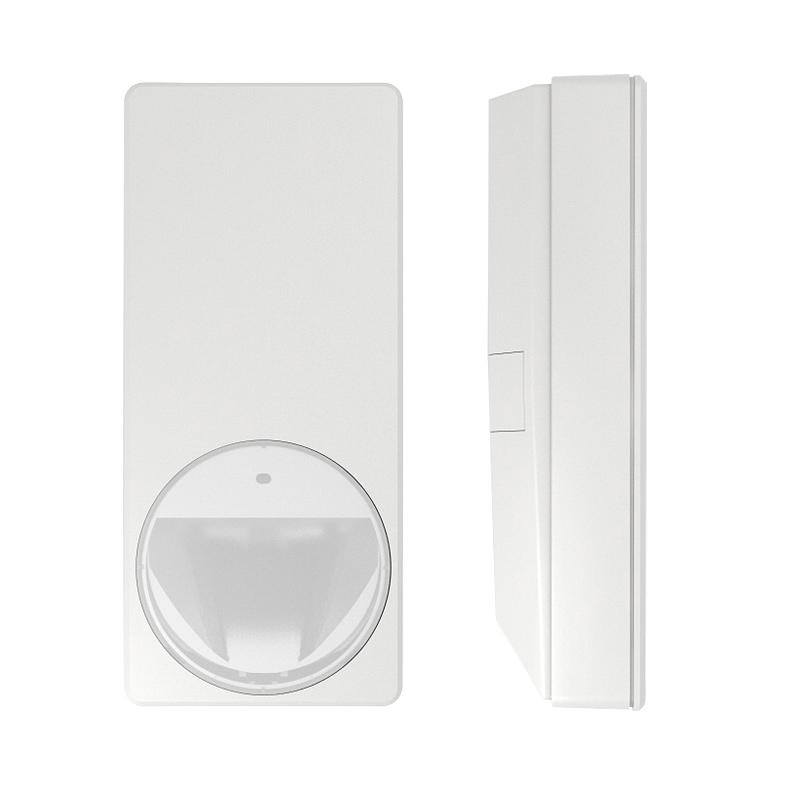

PDM-IXA12(50) Dual det.10.525GHz 50pcs

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • L54531-S113-A100
Product information "PDM-IXA12(50) Dual det.10.525GHz 50pcs"
The PDM-IXx12 and PDM-IXx12T dual motion detectors offer reliable detection of intruders and high false alarm immunity. Their performance is based on an improved version of Vanderbilt`s Matchtec algorithm, which combines passive infrared (PIR) and microwave (MW) channels to make extraordinarily accurate decisions on motion within their detection zone. Intelligent processing routines analyse the relative strength of the IR and MW signals received from a moving object in order to make sound decisions. It is even possible to use multiple detectors in close proximity to each other, since the algorithm reduces interference between the MW modules. This increases flexibility in selecting the installation site. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and the new End-of-Line concept (EoL).
Gross weight (KG) 0.1
Purchase unit PCE
Minimum order 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.100
Material code L54531-S113-A100
Operating temperature: -10 ~ 50 °C
Sensitivity evaluation mode: 6 settings
EOL resistor: RI = 4.7 kΩ ±5%, 250 mWRF = 2.2 kΩ ±5%, 250 mWREoL = 4.7 kΩ ±5%, 250 mW
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Storage temperature: -20° ~ +60°C
Approval: EN50131-2-4 grade 2
Pet immunity: yes
Weight: 0.1 kg
Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Supply voltage: 9 ~ 16 VDC
Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Walking speed: 0.2 ~ 3.0 m/s
Air humidity (EN 60721): < 95% RH, non-condensing
Current consumption: 4.8 mA (rms) 9.0 mA (max peak)
Optical system: MAGIC
Detection characteristics / range: Volumetric / 12 m
Outputs: 30 VDC / 100 mA, NC
Microwave (MW): 10.525 GHz
Colour: RAL9003
Relative humidity: IP41 / IK02
