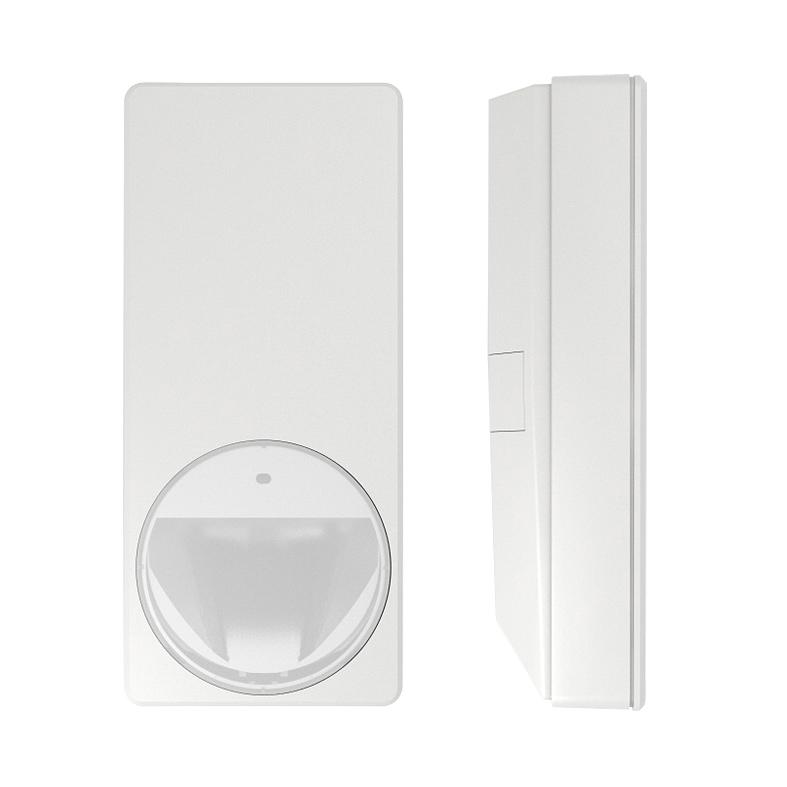

PDM-IXA12T(50) Dual AM d. 10.525GHz 50p
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: L54531-S116-A100
Product information "PDM-IXA12T(50) Dual AM d. 10.525GHz 50p"
The PDM-IXx12 and PDM-IXx12T dual motion detectors offer reliable
detection of intruders and high
false alarm immunity. Their performance is based on an improved version
of Vanderbilt`s Matchtec
algorithm, which combines passive infrared (PIR) and microwave (MW)
channels to make extraordinarily
accurate decisions on motion within their detection zone.
Intelligent processing routines analyse the relative strength of the IR
and MW signals received from a
moving object in order to make sound decisions. It is even possible to
use multiple detectors in close
proximity to each other, since the algorithm reduces interference
between the MW modules. This
increases flexibility in selecting the installation site.
Flexible installations can be carried out quickly and error-free due to
features like Auto Walktest and the
new End-of-Line concept (EoL).
Outputs: | 30 VDC / 100 mA, NC |
Supply voltage: | 9 ~ 16 VDC |
Air humidity (EN 60721): | < 95% RH, non-condensing |
Colour: | RAL9003 |
Housing protection: | IP41 / IK02 |
EOL resistor: | RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW |
Operating temperature: | - 10° ~ + 55°C |
Walk test input: | LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ |
Storage temperature: | - 20° ~ + 60°C |
Weight: | 0.1 kg |
Approval: | EN50131-2-4 grade 3 |
Current consumption: | 6.3 mA (rms) 10.5 mA (max peak) |
Dimensions (W x H x D): | 57 x 128 x 32 (mm) |
Microwave (MW): | 10.525 GHz |
Optical system: | MAGIC mirror |
Sensitivity evaluation mode: | 6 settings |
Set/unset input: | LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ |
Pet immunity: | yes (option) |
Detection characteristics / range: | Volumetric / 12 m |
Walking speed: | 1 ~ 4 m/s / 1 ~ 4 m/s |
- Datasheet - (English) - Datasheet
- Datasheet - (German) - PDM-IXA12T
- Datasheet - (English) - PDM-IXA12T
- Datasheet - (Spanish) - PDM-IXA12T
- Datasheet - (French) - PDM-IXA12T
- Datasheet - (Italian) - PDM-IXA12T
- Datasheet - (Dutch) - PDM-IXA12T
- Installation Manual - (Multilingual) - TCC-2021-028_PDM-Application_Guide_EN
- Product Support Guide - (English) - PDM-IXx12/18T - Maintenance Recommendations
- Product Support Guide - (English) - Info where to use what type of Dual Technology PDM
