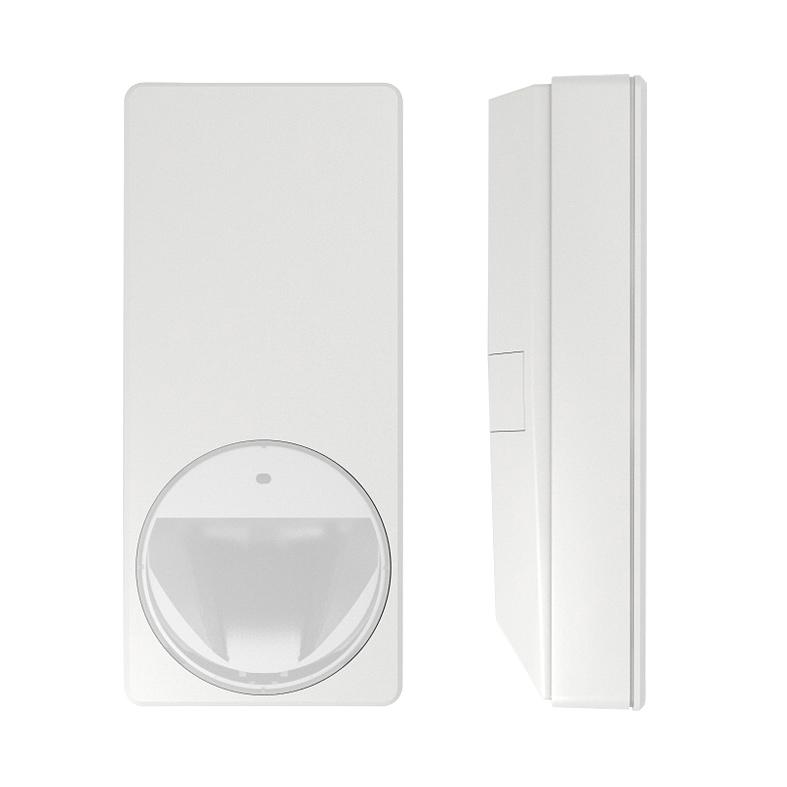

PDM-IXA12T(50) Dual AM d. 10.525GHz 50p

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • L54531-S116-A100
Product information "PDM-IXA12T(50) Dual AM d. 10.525GHz 50p"
The PDM-IXx12 and PDM-IXx12T dual motion detectors offer reliable detection of intruders and high false alarm immunity. Their performance is based on an improved version of Vanderbilt`s Matchtec algorithm, which combines passive infrared (PIR) and microwave (MW) channels to make extraordinarily accurate decisions on motion within their detection zone. Intelligent processing routines analyse the relative strength of the IR and MW signals received from a moving object in order to make sound decisions. It is even possible to use multiple detectors in close proximity to each other, since the algorithm reduces interference between the MW modules. This increases flexibility in selecting the installation site. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and the new End-of-Line concept (EoL).
Gross weight (KG) 0.1
Purchase unit PCE
Minimum order 1
Statistical code 85311030
Country of origin RO
Net weight 0.100
Material code L54531-S116-A100
Outputs: 30 VDC / 100 mA, NC
Supply voltage: 9 ~ 16 VDC
Air humidity (EN 60721): < 95% RH, non-condensing
Colour: RAL9003
Housing protection: IP41 / IK02
EOL resistor: RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
Operating temperature: - 10° ~ + 55°C
Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Storage temperature: - 20° ~ + 60°C
Weight: 0.1 kg
Approval: EN50131-2-4 grade 3
Current consumption: 6.3 mA (rms) 10.5 mA (max peak)
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Microwave (MW): 10.525 GHz
Optical system: MAGIC mirror
Sensitivity evaluation mode: 6 settings
Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ
Pet immunity: yes (option)
Detection characteristics / range: Volumetric / 12 m
Walking speed: 1 ~ 4 m/s / 1 ~ 4 m/s
