XT-1LR Long Range Reader

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • N54504-Z106-A100
Product information "XT-1LR Long Range Reader"

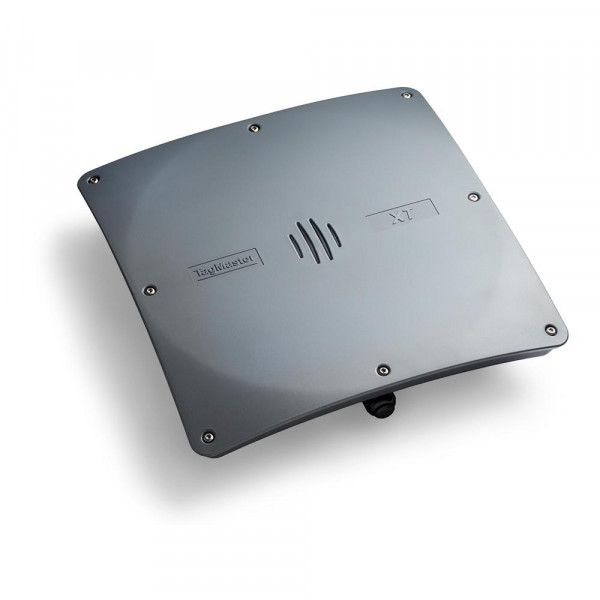

XT-1 and XT Mini are EPC Gen 2 (ISO 18000-63) compliant RFID readers with integrated antennas. Both readers are tailored for Automatic Vehicle Identification applications such as Parking, Gated Communities and Condominiums. As such, the readers are designed for outdoor use and support a large number of interfaces and protocols. While XT-1 is a generic reader with maximum possible read range, XT Mini is optimized for pole mounting close to the vehicle lane.
Gross weight (KG) 2.765
Purchase unit PCE
Minimum order 1
ECCN N
Material code N54504-Z106-A100
Country of origin SE
Net weight 2.600
Statistical code 84719000
Housing protection: IP66
LED Indicators: Red/Green/Yellow
Interface to controller: Wiegand/Clock&Data RS485
Storage temperature: -40°C to +85°C
Outputs: 3 isolated outputs
Output current: 2W
Inputs: 3 isolated inputs
Operating temperature: -40°C to +60°C
Frequency: 865.6 MHz - 867.6 MHz
Dimensions (L x W x H): 300mm x 300mm x 60mm
Card read distance: Up to 8m
Power consumption: 10W (max 12W)
Weight: 2.3kg
Operating voltage: 12-24VDC
Housing material: Aluminium, UL94 certified plastic XENOY™ cover
