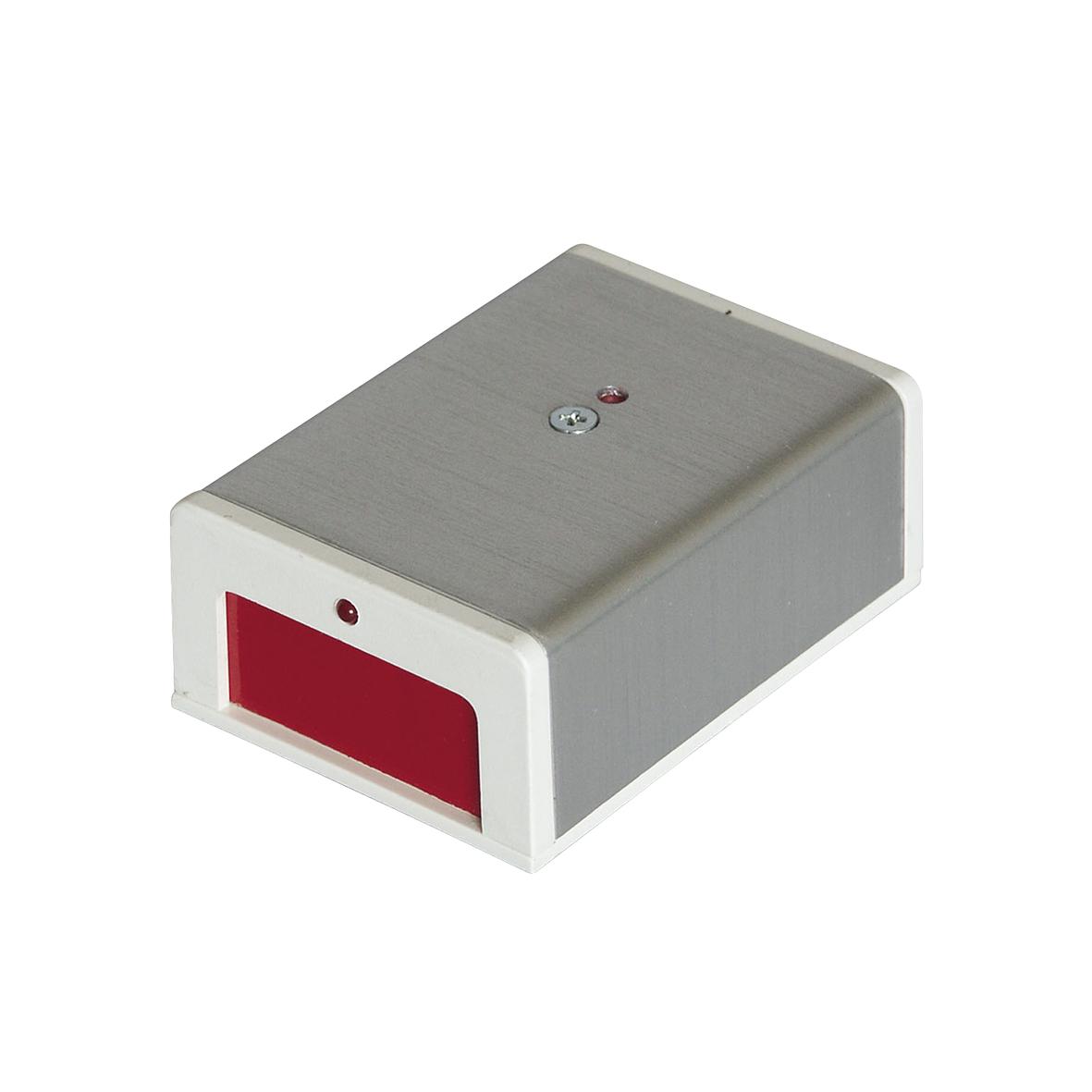

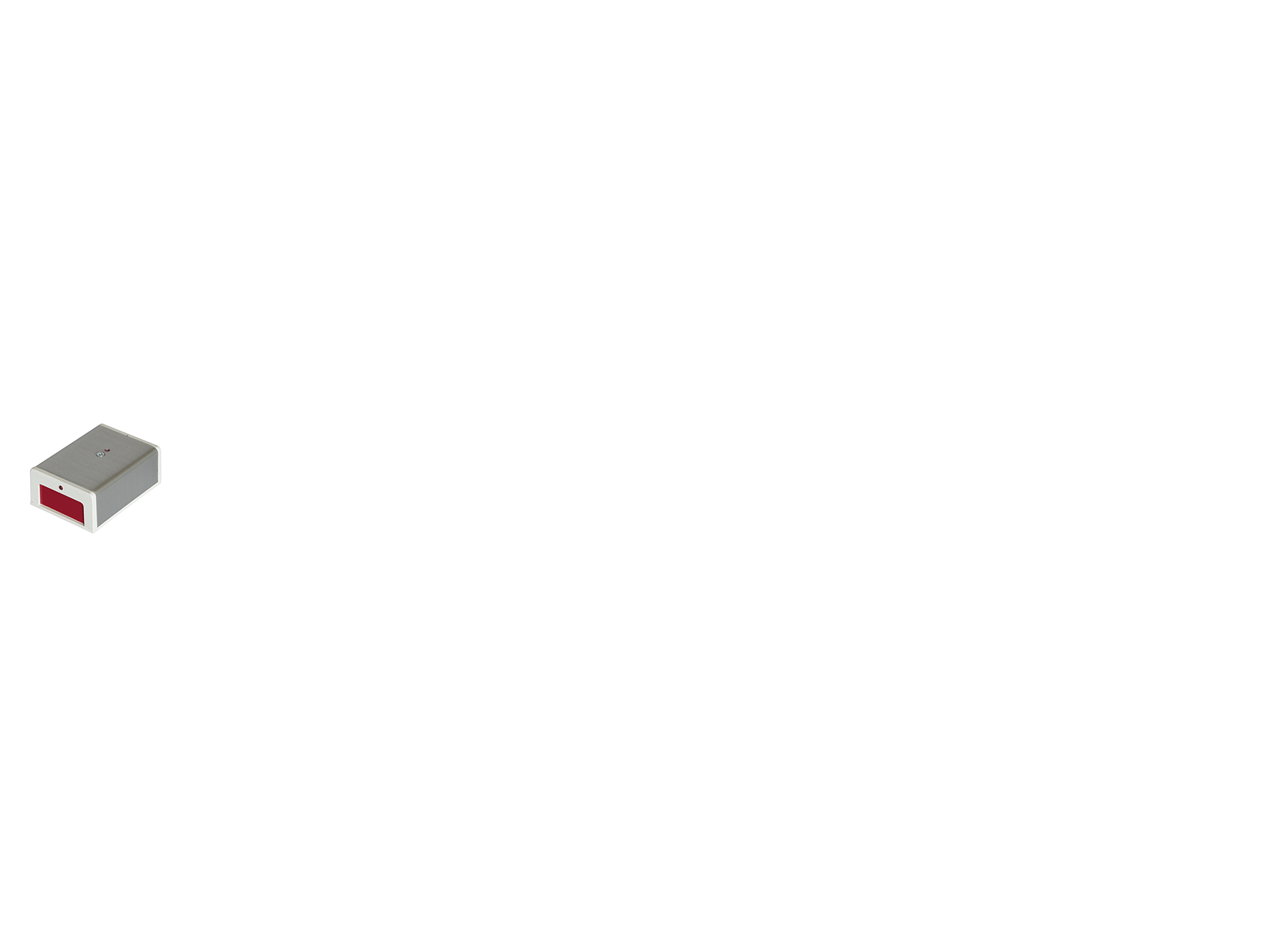

484 Panic button, optical indicator

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • N54543-Z104-A100
  • 4025515477808
Produkt information "484 Panic button, optical indicator"
Reed button designed for the silent signaling of robberies in action. By pushing the button, a magnet gets close to the internal reed and opens the contact, thus triggering the alarm. Self-protection against opening through internal reed. Internal reeds are designed for NC operation. Simplified installation thanks to the two-sided tape included. LED memory with central reset (by cutting power supply), button with spring return, 6-terminal connection: 2 for contact, 2 for ant-tampering, 2 for power supply
Bruttovægt (KG) 0.073
Købs Enhed PCE
EAN/UPC-Kode: 4025515477808
mindste bestilling 1
Materialekode N54543-Z104-A100
Statistisk kode 85319000
Nettovægt 0.069
Oprindelsesland IT
Operating temperature: +5 ~ +40° C
Housing protection: IP32
Housing material: Thermoplastic
Contact rating: Max. 1 A / 75 V
Current consumption: 10 mA
Weight: 0.070 kg
Power supply: 12 VDC
Colour: White
Dimensions (L x W x H): 72 x 52 x 28 (mm)
