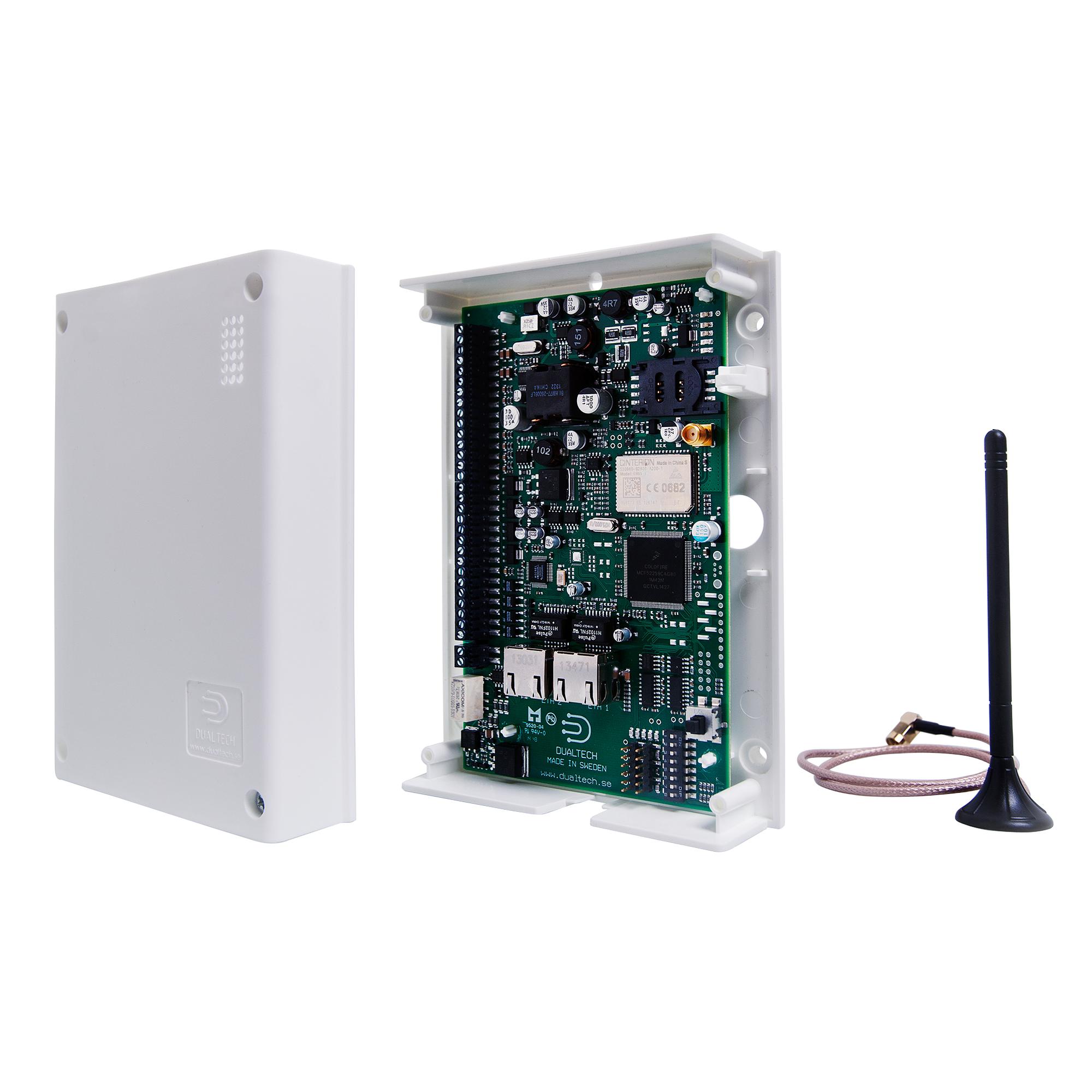

DALM5000VB Alarm transmitter with GPRS

Vennligst logg inn for å se priser.
Ikke en Vanderbilt kunde? Ikke noe problem, du kan registrere deg her.
Behøver du en Vanderbilt produktinstallatør ? klikk her

Produkt-nr.: N54506-Z103-A100

Lukk meny

Produktinformasjon "DALM5000VB Alarm transmitter with GPRS"

DALM5000VB is used for alarm transmission over the Internet or GPRS. Primarily a fixed internet connection is used and secondarily GPRS. The transmitter can be connected to RBE1 port B with the supplied cable. Dialing settings are set via the Omnis software. When the DALM5000VB is connected to RBE1 the protocols SIA II, Robofon, LA100, and P100 are available (Note that this requires 2010 4.1 SP7 software or higher). DALM5000VB uses the protocol SOS Access V4 (encrypted or unencrypted) for alarm transmission. It can also transmit alarm messages via SMS and email.

Lukk meny

Certificate (CE) - Issued by Supplier, on 01/06/2021

Bruttovekt (KG)	0.4
Kjøp enhet	PCE
Mindestabnahme	1
ECCN	N
Materialkode	N54506-Z103-A100
Netto vekt	0.280
Statistisk kode	85311030
Opprinnelsesland	SE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Lukk meny

Interfaces:	TCP/IP over Ethernet and/or 2G, 3G, 4G
Protocols:	SIA, SIA Hex, Contact ID, Robofon, SOS ACCESS V4
Approval:	Grade 2-4 SSF114 & SBF 110:8
Current consumption:	13,7V DC: ca 210mA 27,2 VDC: ca 105mA (Double transmission paths)
Operating voltage:	13,7 VDC / 27,2 VDC
Dimensions (W x H x D):	160x230x50 mm
Weight:	0.450 kg
