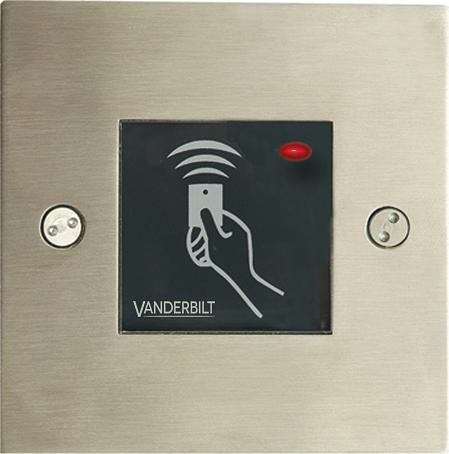

MF1030PM ACTpro MIFARE Reader panel mt.

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54504-F118-A100
  • 7330082004454
Product information "MF1030PM ACTpro MIFARE Reader panel mt."
Proximity only panel mount reader, reads sector data from ACT MIFARE cards/fobs also can read the serial number from any MIFARE Classic card/fob or data from any sector (read key required)
Gross weight (KG) 0.156
Purchase unit PCE
EAN/UPC-Code: 7330082004454
Minimum order 1
Statistical code 84719000
Material code V54504-F118-A100
ECCN EAR99
Net weight 0.100
Country of origin CN
Dimensions (L x W x H): 63 x 58 x 23 (mm)
Operating temperature: -40°C ~ +70°C
Impact rating: IK08
Mounting: Panel
Connectors: Connector Block
Outputs: Selectable Clock & Data or Wiegand Output
Installation: Indoor & Outdoor
Compatibility: MIFARE ISO 14443A Compatible
Operating voltage: 12 - 24 Volt DC
Keypad: No
Weight: 0.065 kg
