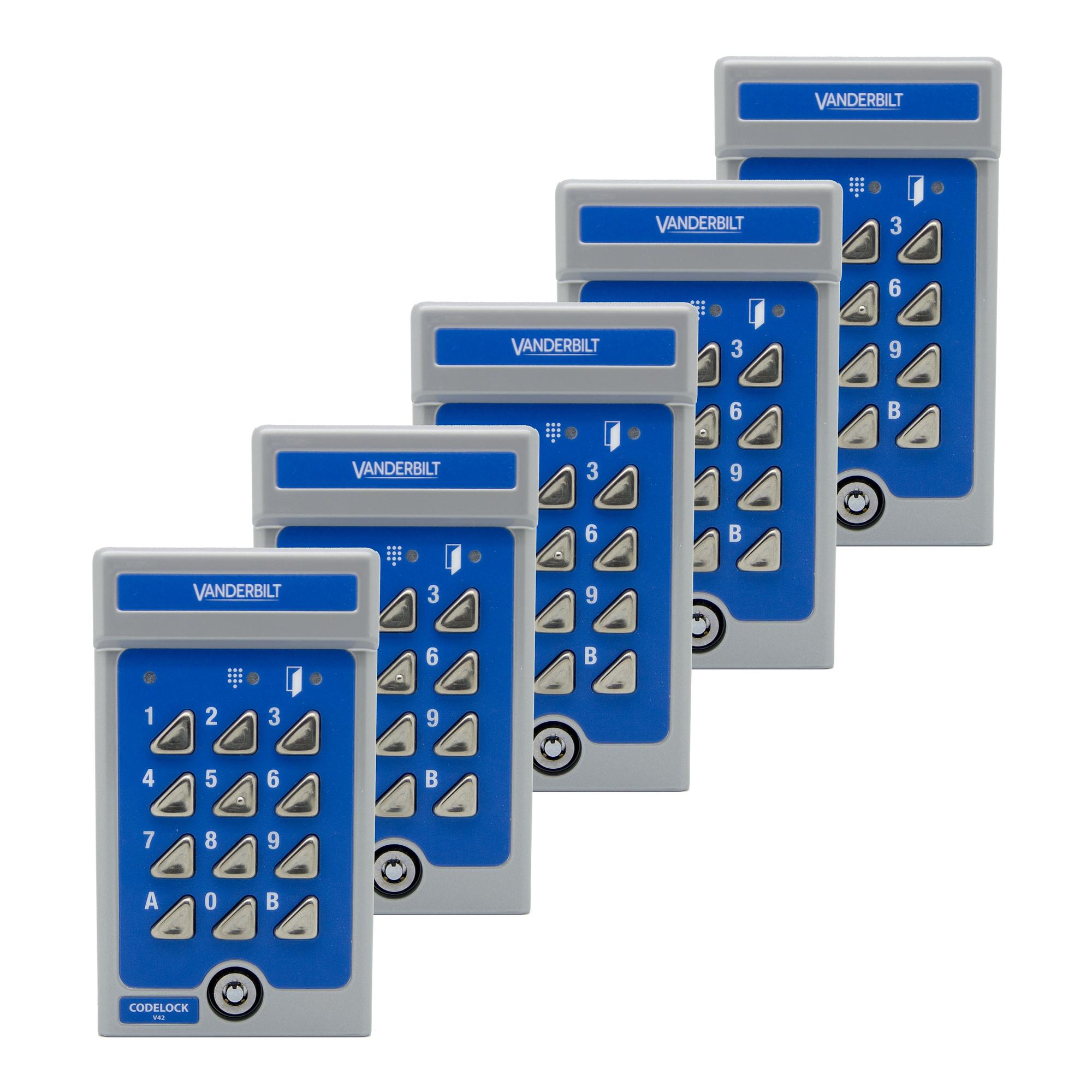

V42-5p V42 Clavier autonome (5pcs)

Si vous êtes client de Vanderbilt, veuillez-vous connecter pour consulter les prix.
Vous n’êtes pas client Vanderbilt ? Pas de problème, vous pouvez vous inscrire ici.
Vous avez besoin de contacter un installateur de nos produits Vanderbilt ? cliquez ici
  • V54521-S101-A100
Informations sur le produit "V42-5p V42 Clavier autonome (5pcs)"
The V42 is the best-selling codelock in the world. It is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. The V42 has a capacity of two four-digit codes. One can be used by residents while the other is used by the property caretaker, for example. All settings are made directly in the unit.
Poids brut (KG) 0.1
Unité d\'achat PCE
Réception minimum 1
Code statistique 84719000
ECCN EAR99
Code de matériau V54521-S101-A100
Poids net 0.100
Pays d'origine PH
Consommation: 8 mA au repos
Dimensions (W x H x D): 80 x 140 x 40 mm
Poids: 0.72kg (per unit)
Coffret / Caisson: Gegossenes Metall mit Tasten aus rostfreiem Edelstahl und Sicherheitsschloss
Protection du coffret: IP54
Matériau du coffret: Cast metal with stainless steel buttons and security lock
Protection du coffret (EN 60529): IP54 design
Température de fonctionnement: -35 bis +55 °C
Couleur: Blue
Environnement: Intérieur et extérieur (IP54). Dans le cas d'environnement exposé à la pluie, utiliser les capots SH2 ou SH1.
Nombre de codes: 2 de 4 digits
Temps d'ouverture: 1–30 sec.
Sorties: Relais, max. 1 A, 28 Vcc
Entrées: Bouton de demande de sortie avec temporisation. 2 entrées séparées pour la dévalidation de chacun des codes.
Tension de fonctionnement : 12 à 24 Vca/cc
Température de fonctionnement: -35°C ~ +55°C
