VR40S-MF NGCR MIFARE EV1 Lector+teclado
Si es Ud. cliente registrado, por favor inicie sesión para ver los precios.
No es cliente de Vanderbilt? No hay problema, puede registrarse aquí.
Necesita un instalador de productos Vanderbilt? Haga clic aquí
No es cliente de Vanderbilt? No hay problema, puede registrarse aquí.
Necesita un instalador de productos Vanderbilt? Haga clic aquí
- N.º de pedido: V54504-F102-A100
- EAN/UPC-Code: 4025515469841
Descripción
Certificates
Importaciones y exportaciones
Recursos
Información técnica
Documentación
Enlaces útiles

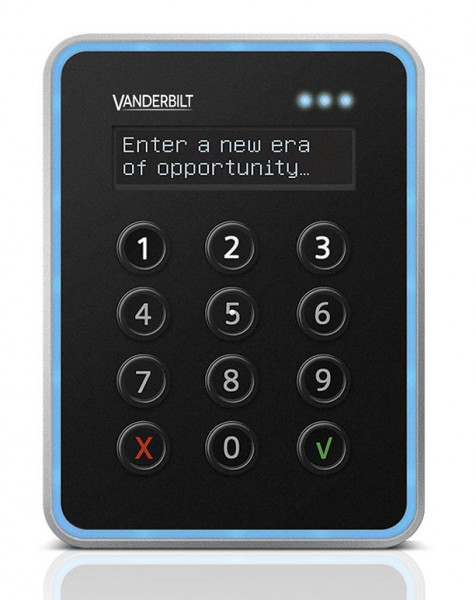

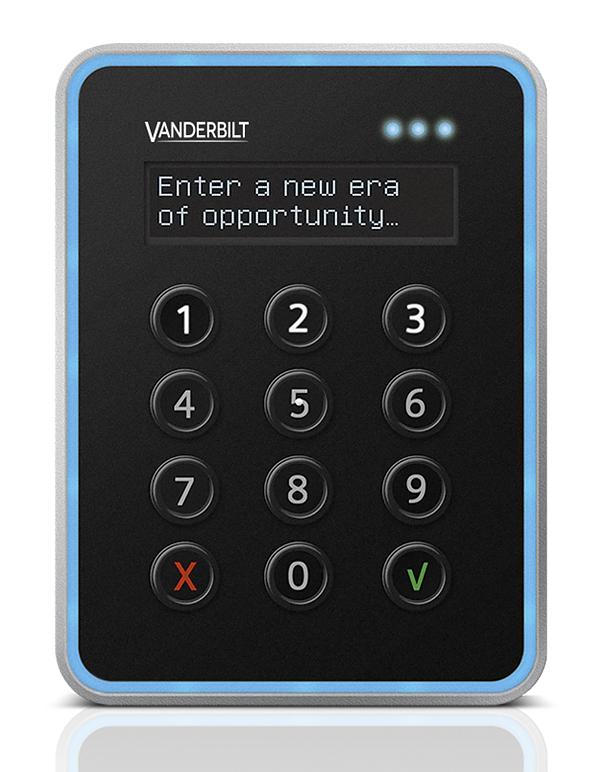

Información del producto "VR40S-MF NGCR MIFARE EV1 Lector+teclado"
El VR40S-MF es un lector diseñado para satisfacer todas las necesidades
de seguridad y a la vez todo los niveles de estética, que son
necesarios en los arquitectónicos actuales , es un equipo fácil de
instalar, usar y mantener.
El VR10S-MF tiene tres indicadores LEDs y un zumbador del tono múltiple

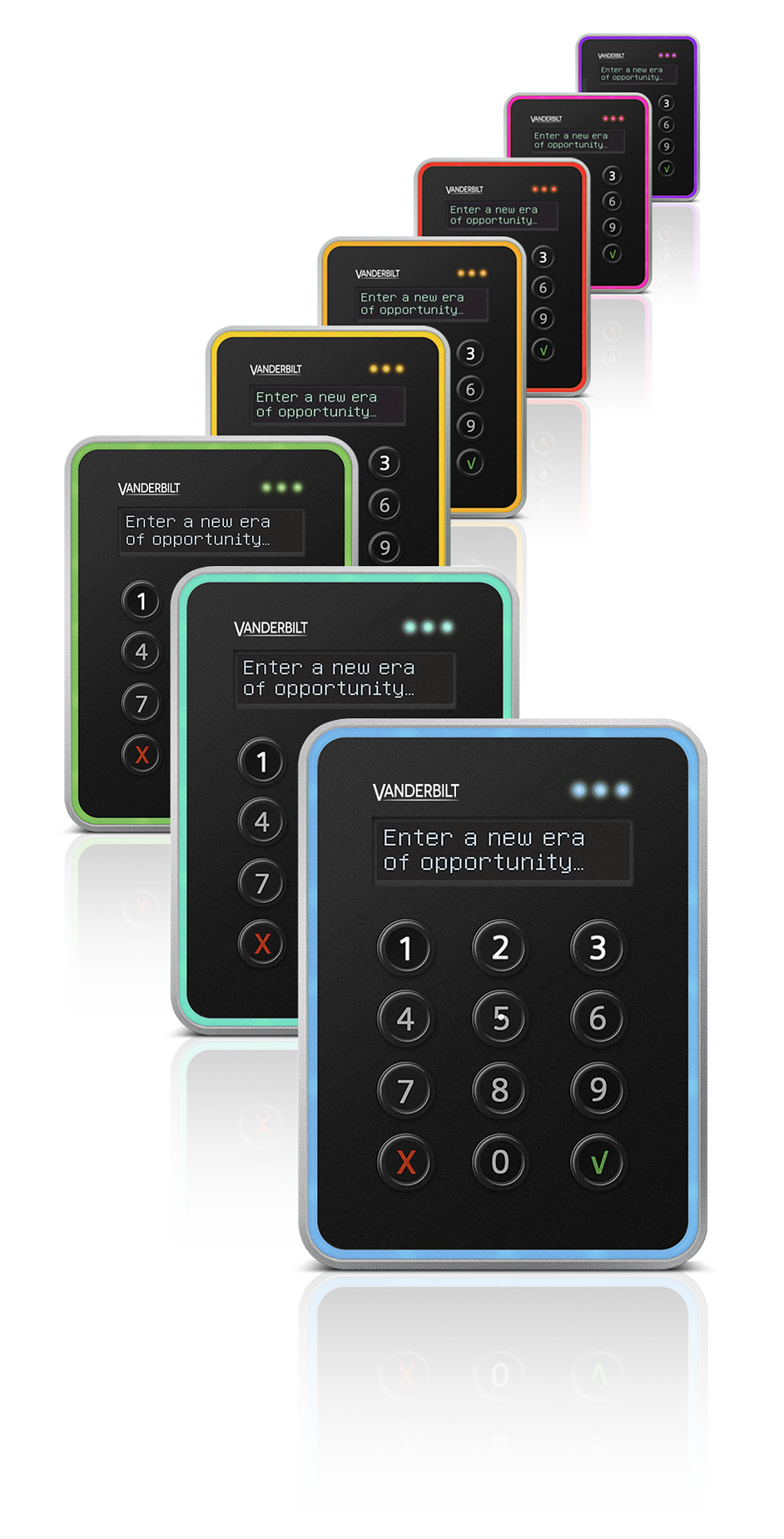

-para la verificación de audio. Dispone de un marco luminoso multicolor
para dar información del estado del acceso. Este se puede configurar
para seguir a los indicadores LEDs o cualquier otra opcion diferente.
Tiene un teclado numérico con fondo luminoso de alta calidad con
reacción táctil, así como una pantalla grafica OLED para maximizar la
interacción con el usuario cuando se arma, en el acceso y mediante los
mensajes de reconocimiento etc., mediante este dialogo con usuario se
mejora y realza la gestión “en la puerta”. El brillo de la pantalla se
regula automáticamente mediante un sensor de luminosidad incorporado.
Consumo de corriente: | DC 12V: 60mA (Max: 220mA) DC 24V: 40mA (Max 125mA) |
Protección de carcasa: | IP55 (montaje en superficie) IP3X (montaje en caja) |
Color: | Black, matt chrome |
Material de la carcasa: | Zinc casted metal bezel with polycarbonate plastic front |
Temperatura de servicio: | -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted) |
Teclado: | Yes |
Display: | Si, grafico monocromático OLED |
Homologación: | CE according to R&TTE and EMC Directives; RED; FCC; UL (pending) |
Tecnología de tarjeta: | MIFARE |
Peso: | 500 gUnit incl. Packing material, accesorios que están incluidos en el suministro, y documentación |
Humedad del aire (EN 60721): | 5-95% non-condensing |
Posición de impacto: | IK08 |
Indicadores: | 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame |
Consumo de energía: | DC 12V 60mA Pico 220mADC 24V 40mA Pico 125mA |
Dimensions (W x H x D): | (montaje en superficie): 85 x 114 x 22(montaje en caja): 85 x 114 x 14 |
Compabilidad de Tarjeta: | Mifare ClassicMifare PlusMifare DESFire EV1 |
Tensión de operación: | 8.5 – 30.0 VDC |
Interface con controlador: | RS485 OSDP |
Protección de tamper: | Yes |
Ambiente: | Indoor or outdoor use |
Distancia de lectura de tarjeta: | Up to 6 cm |
- Datasheet (Danish) - NGCR Readers Datasheet DA
- Datasheet (French) - NGCR Readers Datasheet FR
- Datasheet (German) - NGCR Readers Datasheet - German
- Datasheet (English) - NGCR Readers Datasheet - English
- Datasheet (Spanish) - NGCR Readers Datasheet - Spanish
- Datasheet (Swedish) - NGCR Readers Datasheet - Swedish
- Installation instructions (Swedish) - vr40smf
- Installation instructions (Czech) - vr40smf
- Installation instructions (Danish) - vr40smf
- Installation instructions (German) - vr40smf
- Installation instructions (Greek) - vr40smf
- Installation instructions (English) - vr40smf
- Installation instructions (Spanish) - vr40smf
- Installation instructions (Finnish) - vr40smf
- Installation instructions (French) - vr40smf
- Installation instructions (Italian) - vr40smf
- Installation instructions (Dutch) - vr40smf
- Installation instructions (Norwegian) - vr40smf
- Installation instructions (Polish) - vr40smf
- Installation instructions (Portuguese) - vr40smf
- Installation instructions (Russian) - vr40smf
- Installation mount
- Marketing flyer (English) - VR40S-MF Keypad for Omnis
- Marketing flyer (Swedish) - VR40S-MF som Manöverpanel i Omnis
