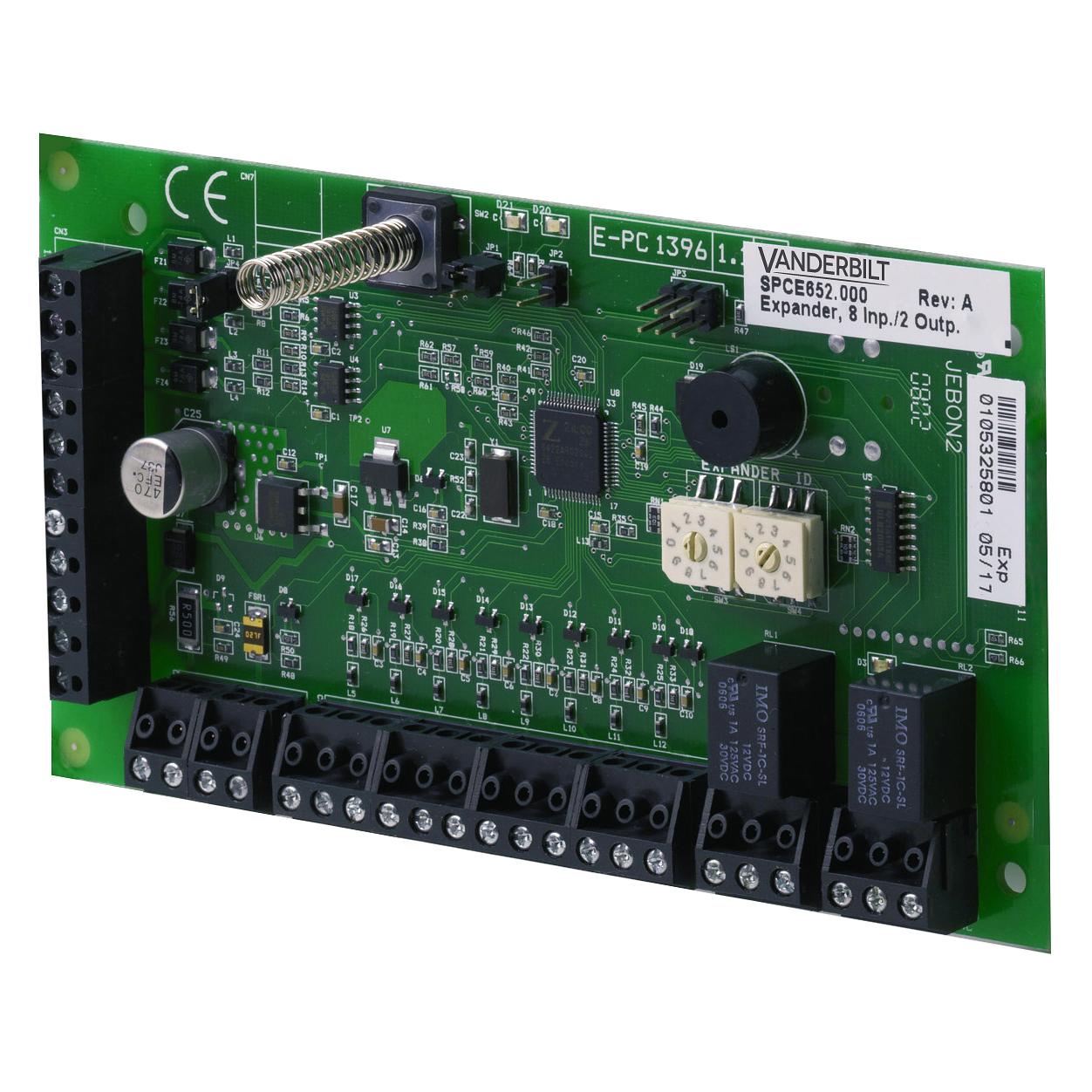

SPCE652.000 Placa de expansio2n 8E/2S

Si es Ud. cliente registrado, por favor inicie sesión para ver los precios.
No es cliente de Vanderbilt? No hay problema, puede registrarse aquí.
Necesita un instalador de productos Vanderbilt? Haga clic aquí
  • V54542-F106-A200
  • 4025515479222
Información del producto "SPCE652.000 Placa de expansio2n 8E/2S"
The SPCE652.000 pcb only expander extends the acre Intrusion system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander features an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Peso Bruto (Kg) 0.22
Unidad de compra PCE
EAN/UPC-Code: 4025515479222
Compra mínima 1
ECCN N
Material code V54542-F106-A200
Código estadístico 85311030
Peso neto 0.100
País de origen PH
Peso: 0.1000 kg
Montaje: In SPC G2 and G3 cabinets or SPC expander housings
Tamper: Front spring tamper, back tamper - provided in kit bag
Corriente en reposo: Max. 40 mA at 12 VDC
Corriente de funcionamiento: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
Resistencia RFL: Dual 4k7 (default), other resistor combinations configurable
Número de zonas en placa: 8
Tensión de operación: 9.5 ~ 14 VDC
Temperatura de operación: -10 ~ +50 °C
Dimensions (W x H x D): 150 x 82 x 20 mm (PCB)
