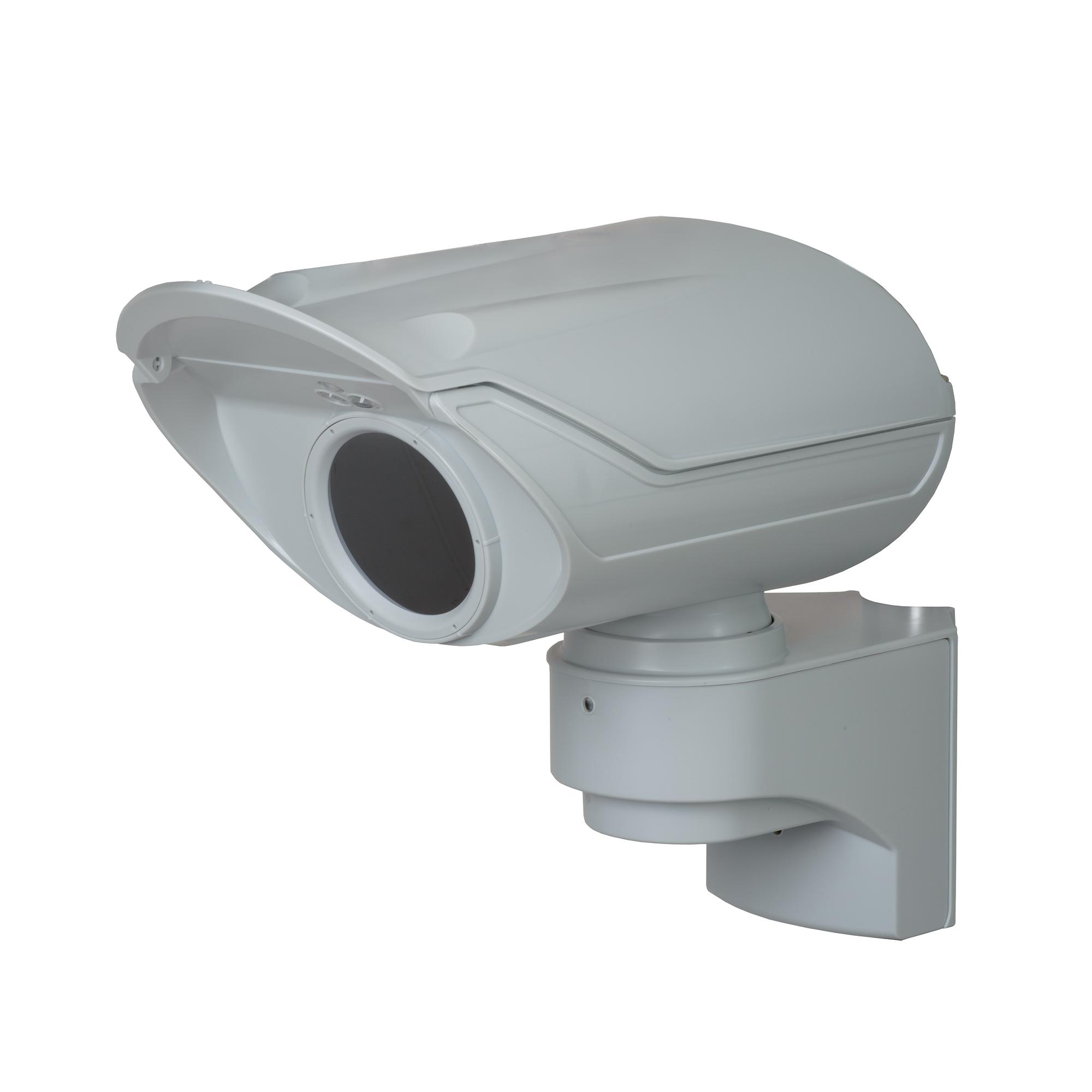

Product information "PRO-E-100H Ext long rng curtain/heater"
The PRO-E-100H is suitable for outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional settings. Heater for harsh environments.
|Cable entry:||diameter 2 x 4-7 (mm)|
|Switching voltage:||10.5 - 30 VDC, 24VAC+/- 15% auto-sensing|
|Alarm output:||Programmable 1 x fault = power supply, temperature, heating, anti-mask, watchdog. Programmable 1 x tamper = housing cover, alignment, cable management cover, removal Programmable 2 x 360Protect = anti-mask, zone, or other events|
|Detection characteristics / range:||150m x 3.3m (Lx W) -1m and up to +8m near surrounding area|
|Housing material:||Luran® S (ASA)|
|Sensitivity:||Default 40%, 75% , 100% (standard sensitivity)|
|Mounting:||Wall and pole mounting, cable management bracket included|
|Sensitivity adjustment:||20% - 140% (% of standard)|
|Dimensions (L x W x H):||358 x 188 x 290 (mm)|
