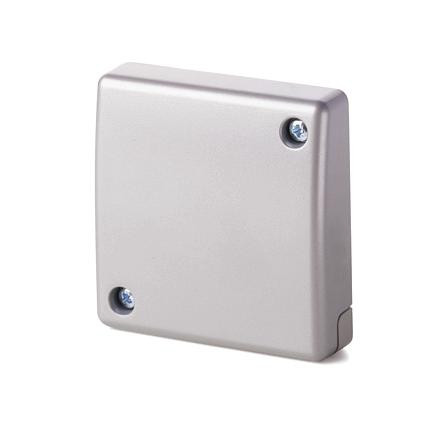

GM760 Seismisk detektor

Vänligen logga in för att se priser.
Är du inte Vanderbilt kund? Inget problem, du kan registrera dig här.
Behöver du en installatör av Vanderbilt produkter? Klicka här
  • V54534-F108-A100
  • 4025515469643
Produktinformation "GM760 Seismisk detektor"
The GM760 seismic detector is the all-purpose unit in the Vanderbilt`s GM7xx- series. It is perfectly suited for applications on steel, concrete as well as lightweight synthetic materials. Intelligent signal processing enables the level of detection sensitivity to be custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector, and the anti-tamper on the back of the detector will detect forcible removal. Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high concentration of valuable assets or dangerous goods. All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that environmental disturbances are ignored, and false alarms eliminated.
Bruttovikt (KG) 0.26
Mängdenhet PCE
EAN/UPC-Kod: 4025515469643
Minsta orderantal 1
Statistisk kod 85311030
Material code V54534-F108-A100
Nettovikt 0.247
Ursprungsland HU
ECCN EAR99
Dimensions (W x H x D): 89 x 89 x 22 mm
Strömförsörjning : 8 - 16 VDC (12 V nominal)
Godkännande: UL, CCC, RCM, CNPP, IMQ, INCERT, REQ, NBÚ, PIE, MABISZ, PD6662
DIP switchinställning: 3 fixed DIP settings
Vikt: 0.285 kg
Arbetstemperatur: -40°C to +70°C
Larmutgångsrelä: Opens on alarm, 30 VDC / 100 mA
Kapslingsklass (EN60529): IP43
