SPCN342.000 2G/3G/4G modem

Vänligen logga in för att se priser.
Är du inte Vanderbilt kund? Inget problem, du kan registrera dig här.
Behöver du en installatör av Vanderbilt produkter? Klicka här
  • V54550-B102-A600
  • 6310318
  • 7330082006700
Produktinformation "SPCN342.000 2G/3G/4G modem"

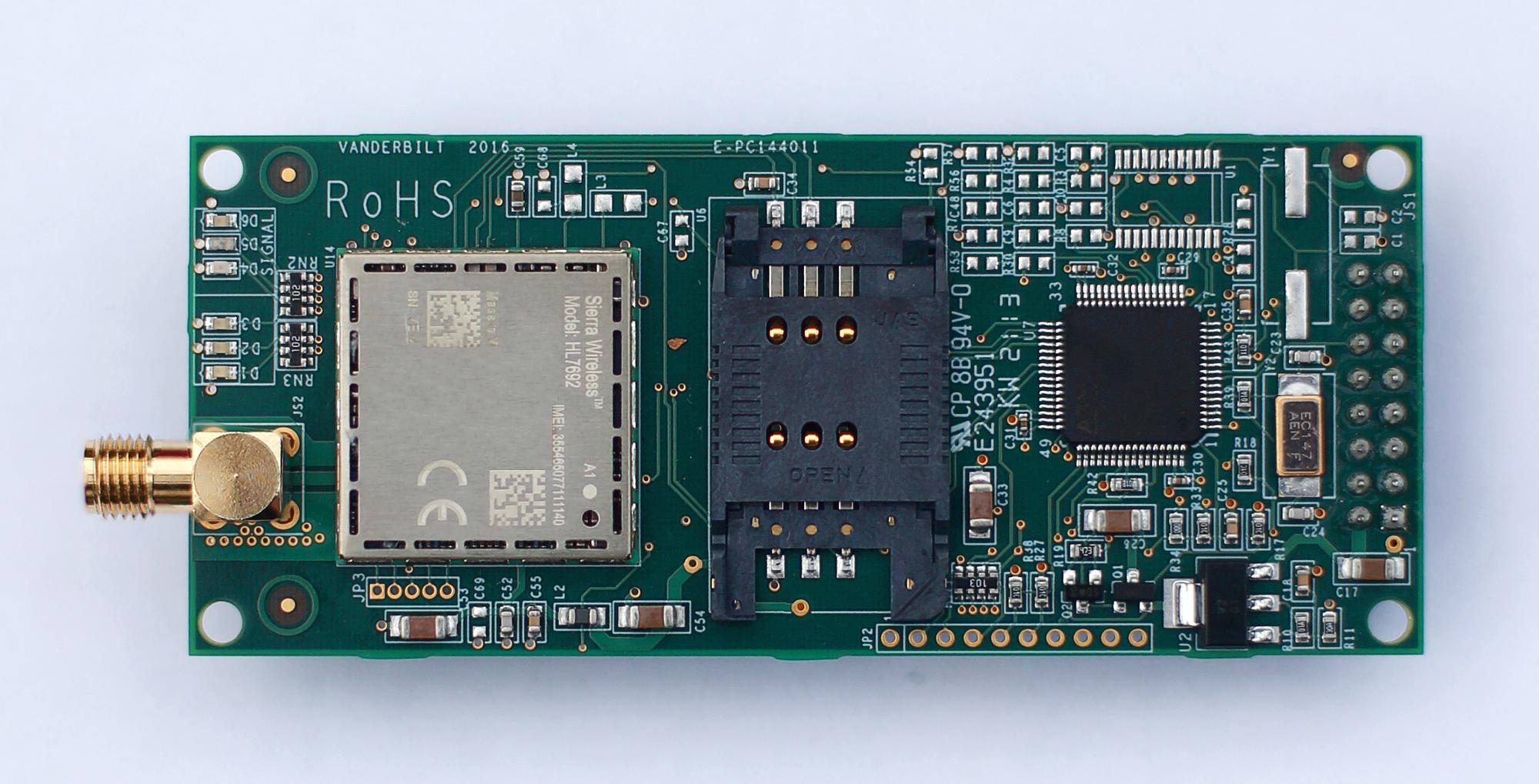

The SPCN342.000 2G/3G/4G module can be assigned to any mobile network by the insertion of a standard SIM card. The modem is compatible with the complete range of SPC panels and plugs directly on the main PCB removing the need for any additional wiring. The unit comes with an external antenna that fits on the cabinet. The modem communicates with an alarm receiving centre (ARC) using IP based protocols like EDP or FlexC over 2G/3G/4G (FW 3.14.1 or later) to transmit alarm event to compatible alarm receiving centres. It also supports PPP connection to SPC Connect Pro Software for remote programming and configuration up-/download. The SMS feature allows user/engineer to be sent a predefined text when selected events occur in the system or receiving of predefined SMS commands for security system control. The 2G/3G/4G modem can be used as the primary source of communication or as backup to the PSTN modem or IP communication.
Bruttovikt (KG) 0.126
Mängdenhet PCE
EAN/UPC-Kod: 7330082006700
Minsta orderantal 1
Ursprungsland PH
Nettovikt 0.056
Material code V54550-B102-A600
ECCN 3A991
Statistisk kod 85176200
Infästning: Plug on module to acre intrusion controller
Firmware: FW3.14.1 or later
Godkännande: EN, VDS
Relativ luftfuktighet: Max. 90 % (non-condensing)
Strömförsörjning drift: Max. 130 mA at 12 VDC
Vikt: 0.130 kg
Vilström : Max. 40 mA at 12 VDC
Arbetstemperatur: -10° ~ +50 °C
