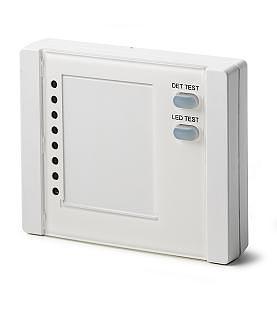

GMYA7-A Alarm indication module - GM775

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54534-F102-A100
  • 4025515469612
Product information "GMYA7-A Alarm indication module - GM775"
The alarm indicator module GMYA7-A enables the expansion of the alarm indication system GMYA7-AS with additional indicator modules. In total a system supports 7 indication modules. Each indication module connects 8 detectors.
Gross weight (KG) 0.415
Purchase unit PCE
EAN/UPC-Code: 4025515469612
Minimum order 1
Statistical code 85311030
Net weight 0.394
ECCN EAR99
Material code V54534-F102-A100
Country of origin PH
Weight: 0.418 kg
Power supply: 8 - 16 VDC (12 V nominal)
Housing protection (EN 60529): IP41
Current consumption: 25 mA
Approval: VdS Class C
Storage temperature: -20°C ~ 60°C
Operating temperature: -10°C ~ 55°C
Dimensions (W x H x D): 112 x 92 x 31 (mm)
