PDM-I12 PIR Melder

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

temporarily out of stock, please check availability with your local Customer Service team.

  • V54530-F114-A100
  • 4025515470403
Product information "PDM-I12 PIR Melder"

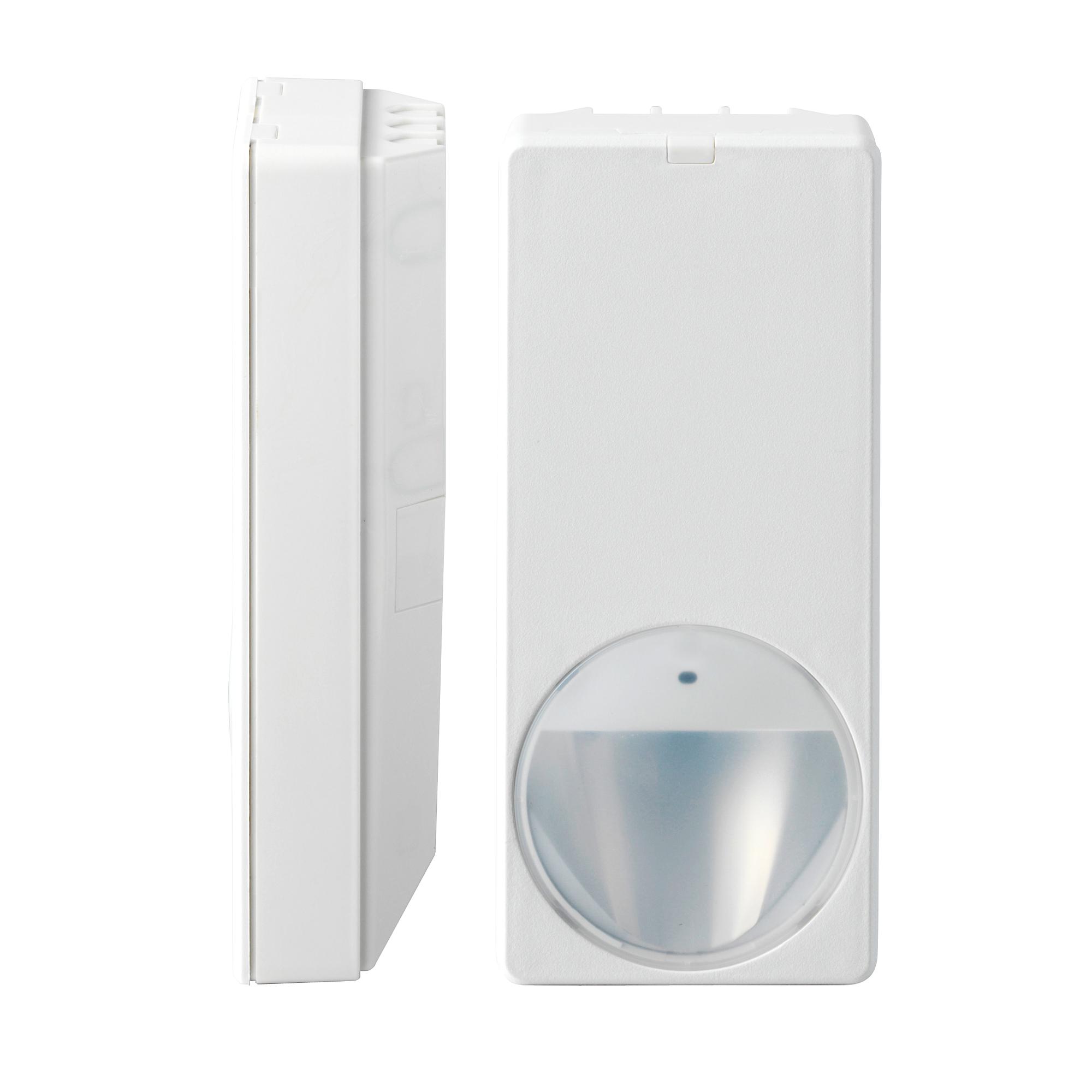

MAGIC motion detector PDM-I12 is impressive with its thin and flat design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.125
Purchase unit PCE
EAN/UPC-Code: 4025515470403
Minimum order 1
Statistical code 85311030
Country of origin RO
Net weight 0.119
Material code V54530-F114-A100
ECCN EAR99
Current consumption: 2.5 mA (rms) 4.7 mA (max. peak)
Colour: RAL9003
Outputs: 30 VDC / 100 mA, NC
Pet immunity: yes (option)
Walk test input: Low ≤ 1,5 V / high ≥ 3,5 V
Set/unset input: Low ≤ 1,5 V / high ≥ 3,5 V
Supply voltage: 9 ... 16 VDC (12V nom.)
Walking speed: 0.2 ... 3 m/s
Housing protection (EN 60529): IP41 / IK02
EOL resistor: RI = 4.7 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW
Operation temperature: -10°C…+55°C
Storage temperature: -20°C…+60°C
Weight: 0.1kg
Operating temperature: -10 °C…+55 °C
Dimensions (W x H x D): 57mm x 128mm x 32mm
Approval: EN50131-2-2 grade 2VdS Klasse B
Air humidity (EN 60721): < 95% RH, non-condensing
Sensitivity evaluation mode: 4 settings
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
