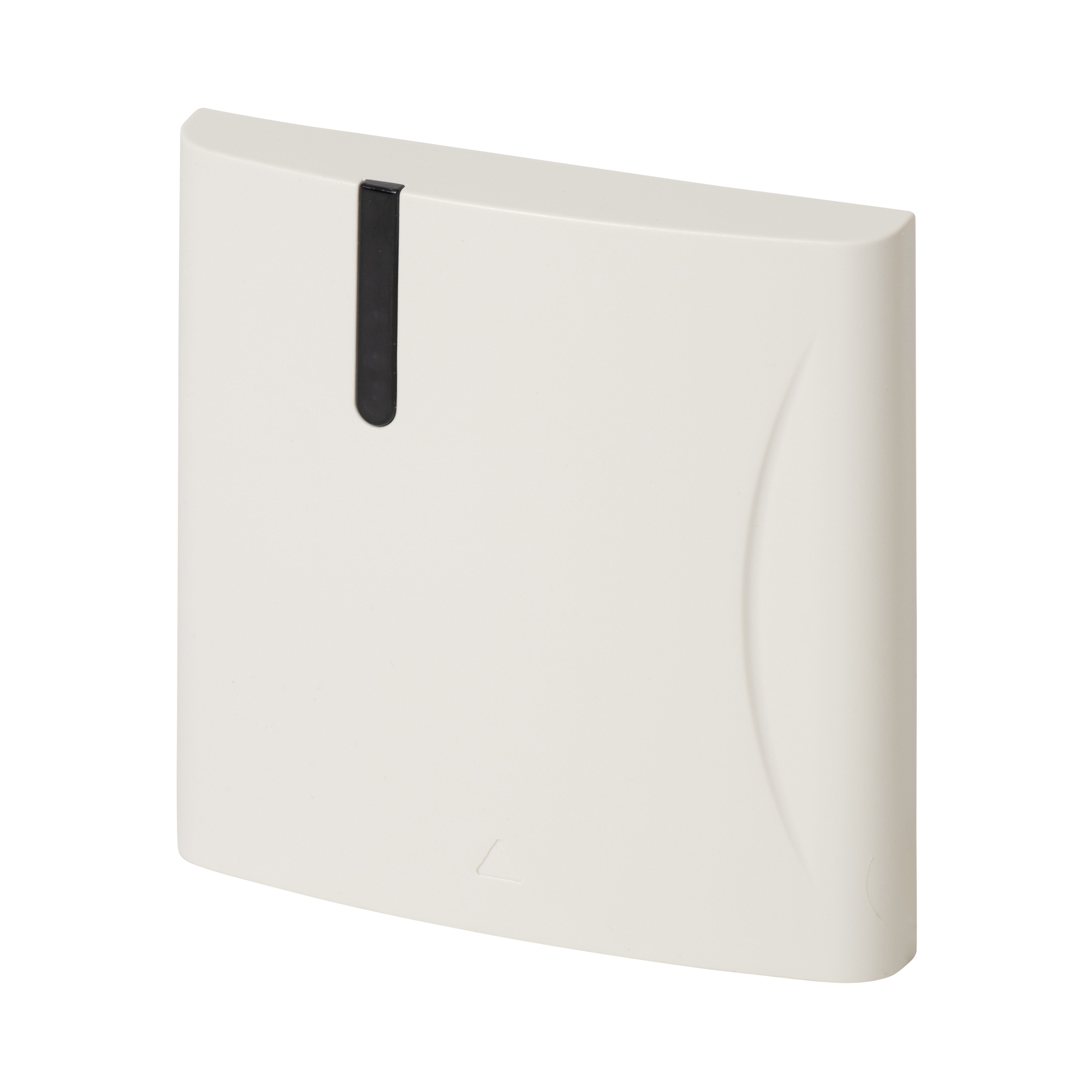

SP100-Cotag Switch Plate Reading Head

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • VGBI:50-512
  • 4025515473183
Product information "SP100-Cotag Switch Plate Reading Head"
The SP100-Cotag is a switch-plate proximity reading head that is designed for mounting in a single-gang flush-mounted electrical backbox. It has a reading range of up to 30 cm.
Gross weight (KG) 0.15
Purchase unit PCE
EAN/UPC-Code: 4025515473183
Minimum order 1
Country of origin SE
Material code VGBI:50-512
Net weight 0.150
Statistical code 84733020
ECCN EAR99
Housing protection: IP55
Dimensions (W x H x D): 86 x 86 x 14 mm
Card read distance: Up to 29 cm with active card. Up to 9 cm with passive card.
Card compatibility: 0911‚ 0928-0‚ 0958-101‚ 0981‚ 0968-0
Interface to controller: RF
Housing: ABS base with clip on ABS front cover
Weight: 0.11 kg
Environment: Indoor or outdoor use
Operating temperature: -30 to +50 °C
Tamper switch: No
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Card technology: Cotag
Approval: CE
Colour: White
