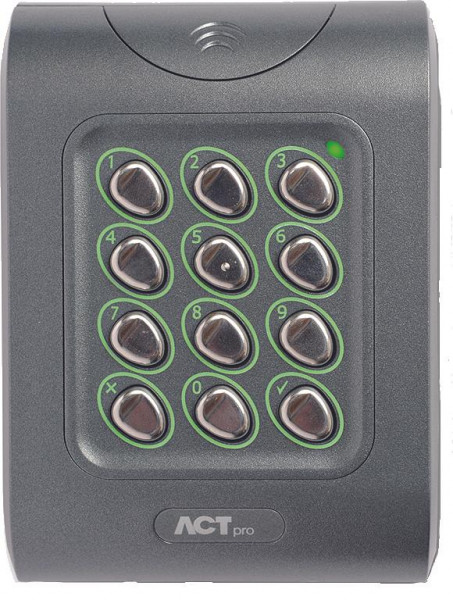

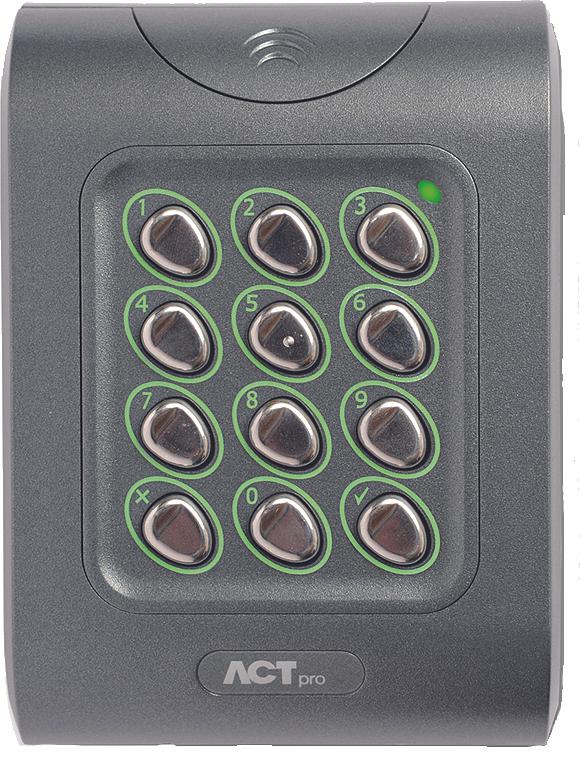

EM1060e ACTpro PIN ONLY Reader

EM1060e ACTpro PIN ONLY Reader
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F144-A100
  • EAN/UPC-Code: 7330082004874
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "EM1060e ACTpro PIN ONLY Reader"
PIN only reader
Certificates
Close menu
Import & Export
Gross weight (KG) 0.31
Purchase unit PCE
EAN/UPC-Code: 7330082004874
Minimum order 1
ECCN N
Material code V54504-F144-A100
Net weight 0.260
Statistical code 84719000
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (L x W x H): 94 x 130 x 25 (mm)
Operating temperature: -40°C ~ +70°C
Mounting: Surface or Flush
Installation: Indoor/Outdoor
Degree of protection: Potted Electronics
Cable length: 100m at 12V DC 30m at 5V DC
Cable entry: Connector Blocks
Operating voltage: 5 - 12 Volts DC
Current consumption: 40mA
Impact rating: IK08
Housing protection: IP55
Weight: 0.225 kg
