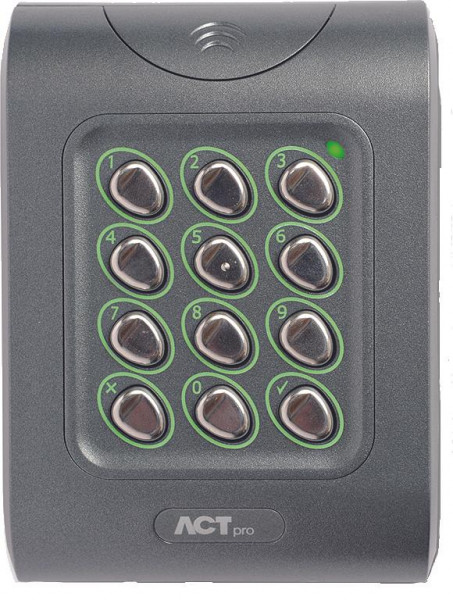

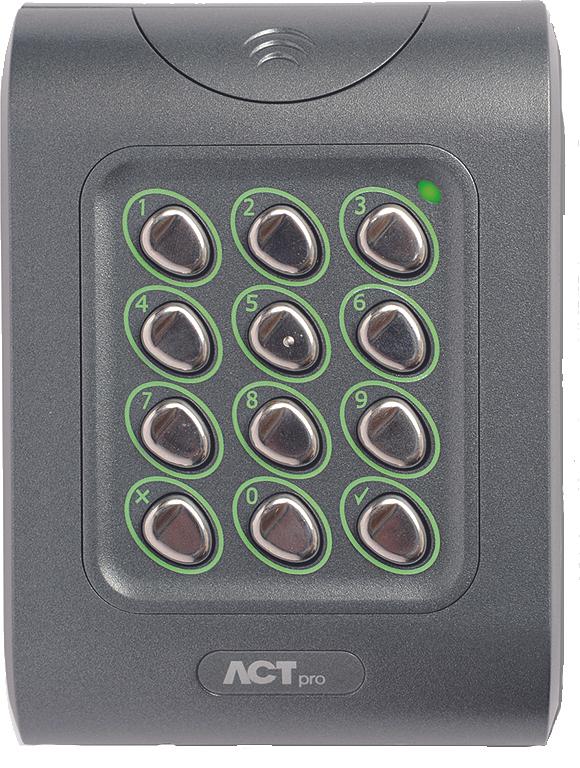

EM1060e ACTpro PIN ONLY Reader

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54504-F144-A100
  • 7330082004874
Product information "EM1060e ACTpro PIN ONLY Reader"
PIN only reader
Gross weight (KG) 0.31
Purchase unit PCE
EAN/UPC-Code: 7330082004874
Minimum order 1
Material code V54504-F144-A100
Net weight 0.260
Statistical code 84719000
Country of origin CN
Installation: Indoor/Outdoor
Dimensions (L x W x H): 94mm x 130mm x 25 mm
Degree of protection: Potted Electronics
Cable length: 100m at 12V DC 30m at 5V DC
Cable entry: Connector Blocks
Operating voltage: 5 - 12 Volts DC
Current consumption: 40mA
Impact rating: IK08
Weight: 225g
Operating temperature: -40°C to +70°C
Housing protection: IP55
Mounting: Surface or Flush
